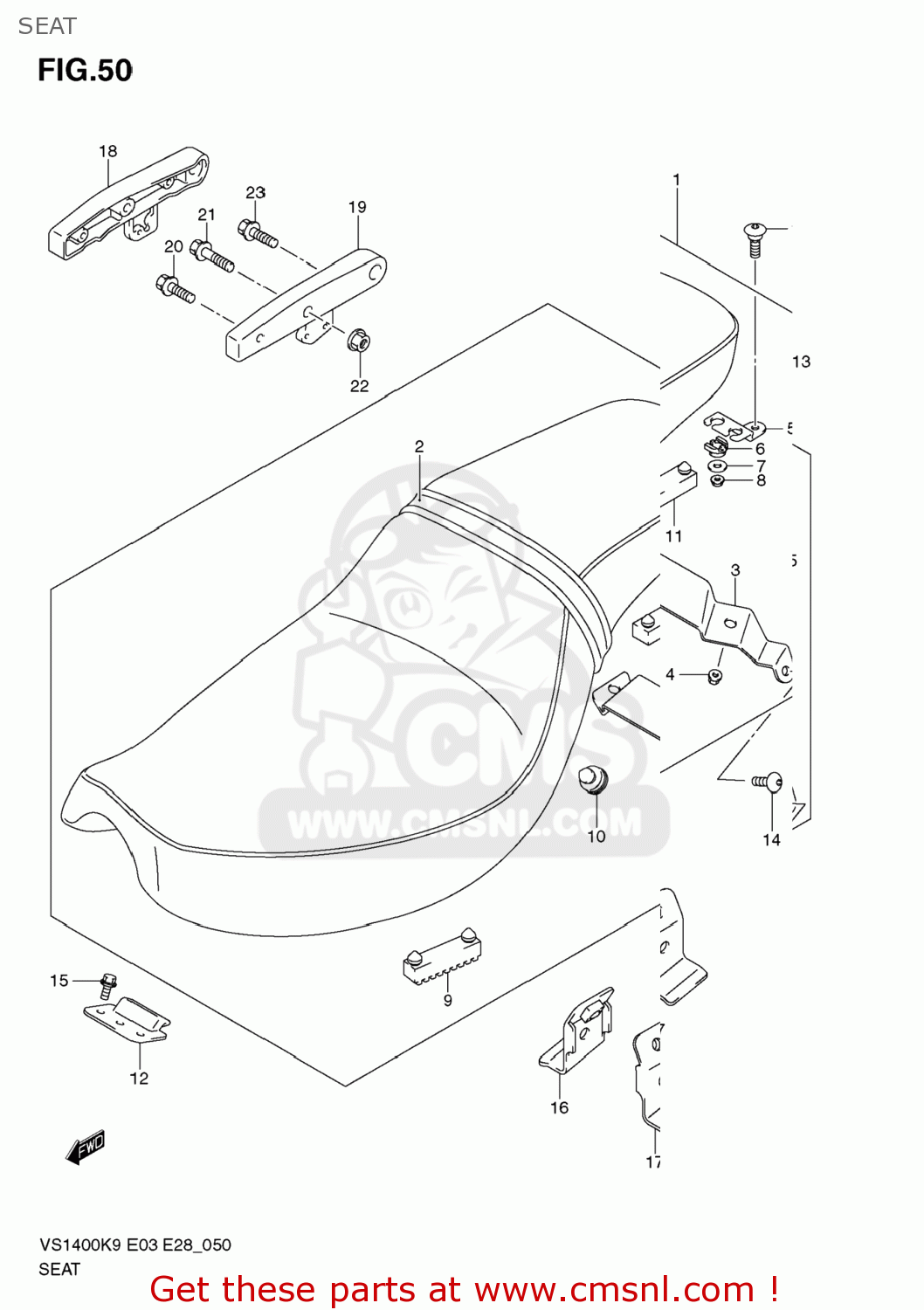

SEAT

ref

part #

description

quantity

1

4510038BA0HW9
ref: 1

SEAT ASSY

€ 613.00

2

4518038BA0
ref: 2

BAND ASSY

€ 0.00

3

4511538BA0
ref: 3

BRACKET,BAND

€ 0.00

4

083193106A
ref: 4

NUT

€ 2.50

5

4511838BA0
ref: 5

BRACKET,SEAT RR

€ 0.00

6

4521506B00
ref: 6

CUSHION

€ 4.50

7

0916006088
ref: 7

WASHER(6.5X20X1.6)

€ 2.00

8

083161006A
ref: 8

NUT

€ 2.50

9

4514831E00
ref: 9

CUSHION,SEAT

€ 6.00

10

4514816700
ref: 10
09321-10002

CUSHION,FR

€ 2.00

11

4514943500
ref: 11

CUSHION,SEAT

€ 3.00

12

4521038B00
ref: 12

BRACKET,SEAT FR

€ 12.00

13

0913906121
ref: 13

SCREW(6X16)

€ 5.50

14

0910606117
ref: 14

BOLT(6X12)

€ 3.50

15

0158006167
ref: 15

BOLT

€ 3.00

16

4511638BA0
ref: 16

BRACKET,SEAT CTR,R

€ 0.00

17

4511738BA0
ref: 17

BRACKET,SEAT CTR,L

€ 0.00

18

4621238B22
ref: 18

HANDLE,PILLION RIDER,R

€ 118.00

19

4621338B22
ref: 19

HANDLE,PILLION RIDER,L

€ 141.50

20

015800640B
ref: 20

BOLT

€ 2.00

21

015800845B
ref: 21

BOLT

€ 4.00

22

083161008B
ref: 22

NUT

€ 3.00

23

015800620B
ref: 23

BOLT

€ 2.50
