MAGNETO

VS1400 BOULEVARD S83 2009 (K9) CALIFORNIA (E33)

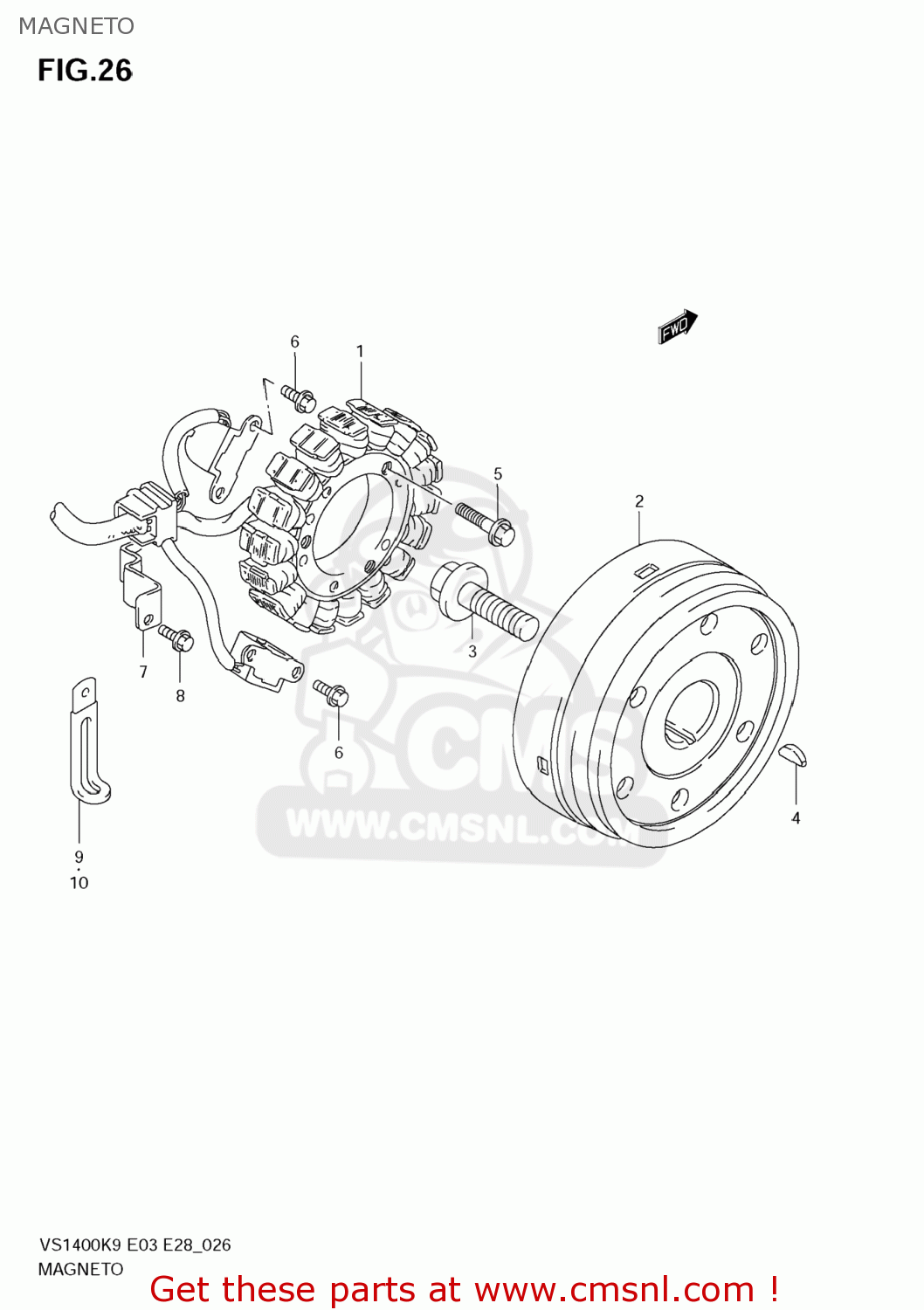

Magneto diagram VS1400 BOULEVARD S83 2009 (K9) CALIFORNIA (E33)

MAGNETO VS1400 BOULEVARD S83 2009 (K9) CALIFORNIA (E33)

MAGNETO VS1400 BOULEVARD S83 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

3210138B02
ref: 1

STARTER ASSY

€ 1,055.00

2

3210238B10
ref: 2

ROTOR ASSY

€ 743.00

3

0910314001
ref: 3

BOLT(14X43)

€ 7.00

4

0942005007
ref: 4

KEY

€ 3.00

5

015470630B
ref: 5

BOLT

€ 3.00

6

015470510B
ref: 6

BOLT

€ 2.50

7

3237145C00
ref: 7

CLAMP,MAGNETO LEAD WIRE

€ 3.00

8

015470510B
ref: 8

BOLT

€ 2.50

9

0940408419
ref: 9

CLAMP(L:80)

€ 2.00

10

0940406429
ref: 10

CLAMP(L:45)

€ 2.50
