CLUTCH CYLINDER

VS1400 BOULEVARD S83 2009 (K9) CALIFORNIA (E33)

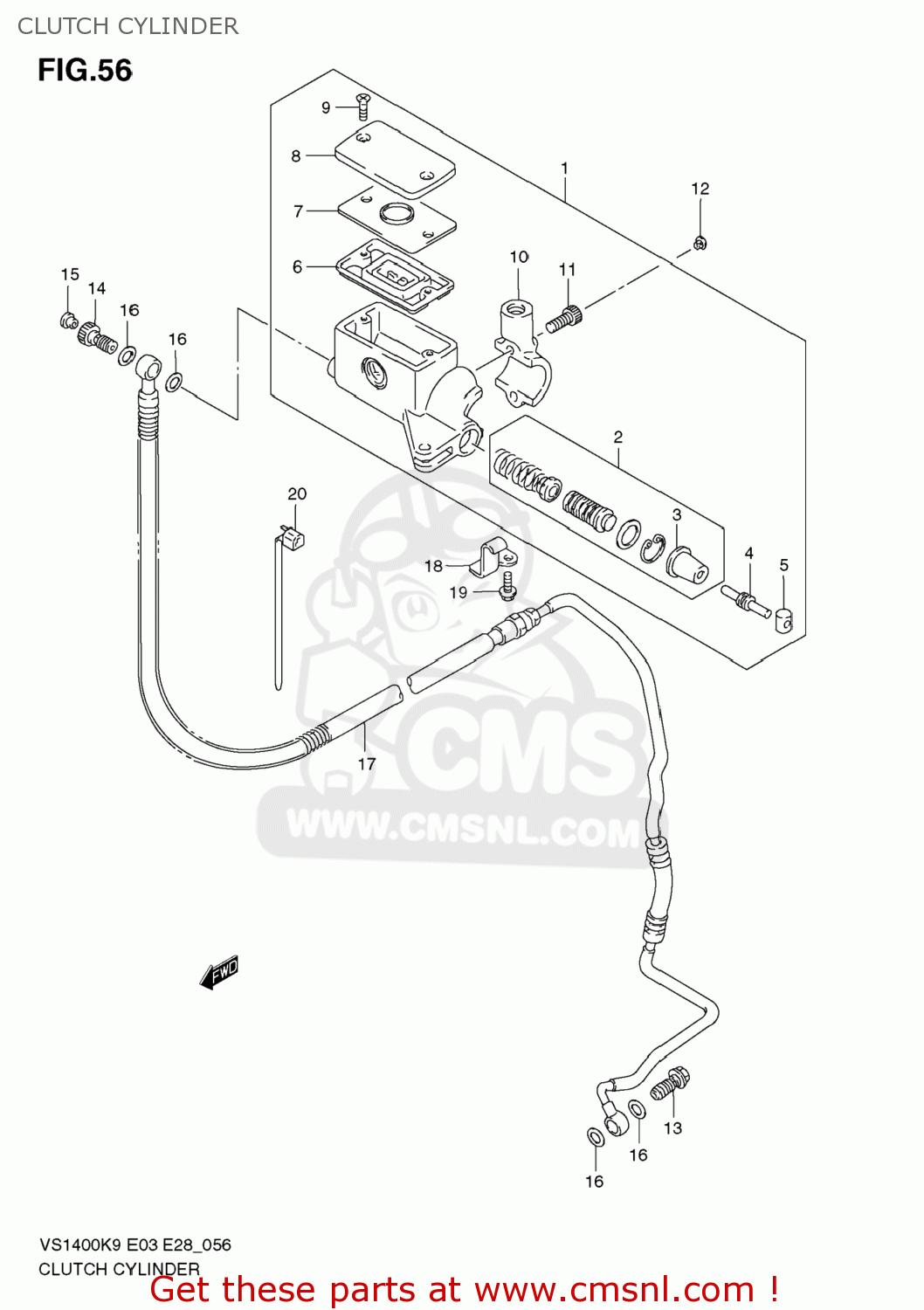

Clutch cylinder diagram VS1400 BOULEVARD S83 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

5980039A10
ref: 1

CYLINDER ASSY, CLUTCH MASTER

€ 428.00

5980008810
ref: 2

PISTON & CUP SET

€ 36.50

5966644300
ref: 3

BOOT

€ 6.00

5987138A00
ref: 4

PUSH ROD

€ 6.50

5989208A00
ref: 5

BUSH

€ 5.50

5966749460
ref: 6

5966749460

5966841C00
ref: 7

PLATE,DIAPHRAGM

€ 8.00

5966910F00
ref: 8

CAP

€ 59.50

0212204127
ref: 9

SCREW

€ 2.00

5967138A00
ref: 10

HOLDER

€ 37.50

0713006207
ref: 11

BOLT

€ 3.50

0925005008
ref: 12

CAP(OD:10)

€ 5.00

0936010061
ref: 13

BOLT UNION

€ 6.50

0936010027
ref: 14

BOLT UNION

€ 9.00

0925008014
ref: 15

CAP(OD:12)

€ 3.50

0916110009
ref: 16

WASHER(10X15X1.5)

€ 2.00

5990038B50
ref: 17

HOSE ASSY,CLUTCH

€ 0.00

5954238B00
ref: 18

CLAMP,CLUTCH HOSE

€ 5.50

015500610B
ref: 19

BOLT

€ 2.50

0940718402
ref: 20

CLAMP(L:165)

€ 2.50
