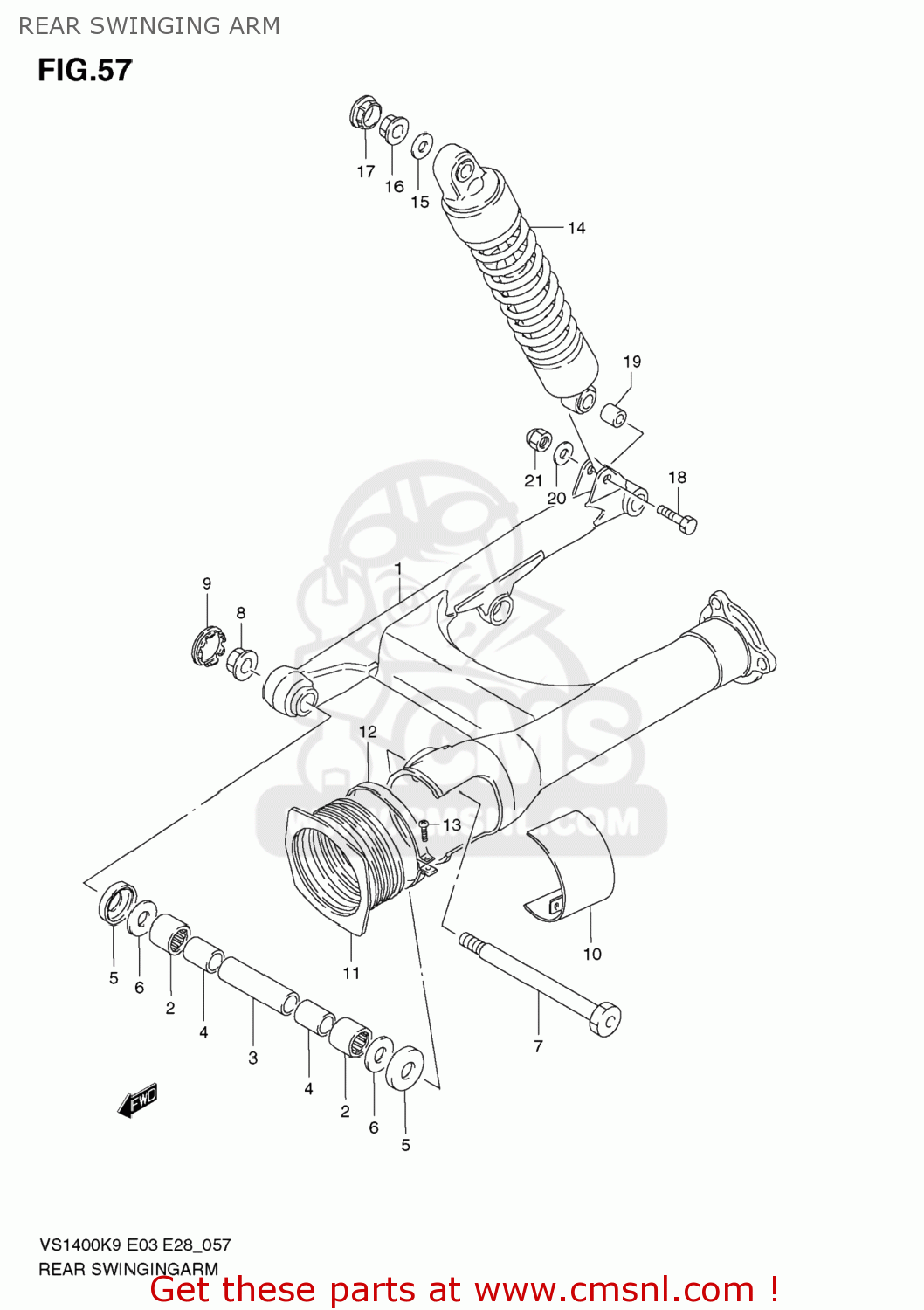

REAR SWINGING ARM

ref

part #

description

quantity

1-1

6110038B01YAY
ref: 1-1

SWINGINGARM,RR

€ 0.00

1-2

6110038B01YHG
ref: 1-2

SWINGINGARM,RR

€ 0.00

2

0926322017
ref: 2

BEARING(22X29X30)

€ 18.50

3

6128238B00
ref: 3

SPACER,RR SWGARM PIVOT CTR

€ 10.00

4

6125138B00
ref: 4

SPACER,RR SWGARM PIVOT

€ 14.00

5

6126214A00
ref: 5

SEAL,RR SWGARM PIVOT DUST

€ 7.50

6

0821116341
ref: 6

WASHER

€ 2.00

7

6121138B00
ref: 7

SHAFT,RR SWINGINGARM PIVOT

€ 38.50

8

083193114A
ref: 8

NUT

€ 9.00

9

6122238A01
ref: 9

CAP,RR SWINGING ARM PIVOT,R

€ 6.50

10-1

6123038B00YAY
ref: 10-1

COVER,RR SWGARM PIVOT,L(BLACK)

€ 0.00

10-2

6123038B00YHG
ref: 10-2

COVER,RR SWGARM PIVOT,L(GRAY)

€ 0.00

11

6137238B00
ref: 11

BOOT,PROPELLER SHAFT

€ 16.50

12

0940292306XC0
ref: 12

CLAMP

€ 8.50

13

032110425B
ref: 13

SCREW

€ 2.00

14

6210038B10
ref: 14

ABSORBER ASSY,RR SHOCK

€ 436.00

15

0916010123
ref: 15

WASHER(10.5X20X2.3)

€ 2.00

16

083161010B
ref: 16

NUT

€ 2.00

17

9567224A00
ref: 17

CAP,FRAME HANDLE GRIP

€ 5.00

18

0910010247
ref: 18

BOLT(10X39)

€ 4.00

19

0918010139
ref: 19

SPACER(10.2X14X20.7)

€ 6.00

19

0918010139
ref: 19

SPACER(10.2X14X20.7)

€ 6.00

20

0916010093
ref: 20

WASHER(10.5X24X2.3)

€ 2.00

21

0831310107
ref: 21

NUT

€ 2.50
