FRAME COVER

VS1400 BOULEVARD S83 2009 (K9) CALIFORNIA (E33)

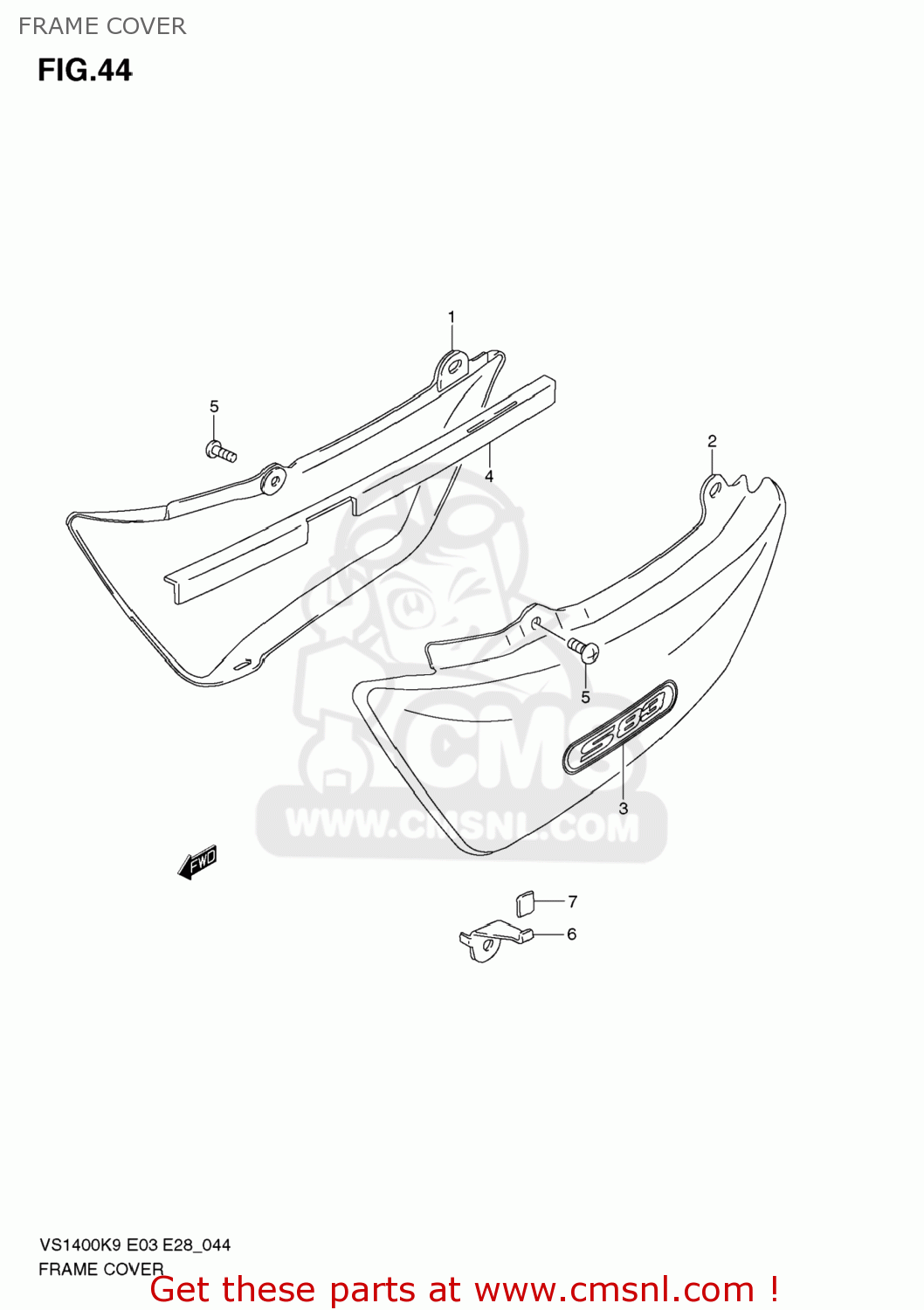

Frame cover diagram VS1400 BOULEVARD S83 2009 (K9) CALIFORNIA (E33)

FRAME COVER VS1400 BOULEVARD S83 2009 (K9) CALIFORNIA (E33)

FRAME COVER VS1400 BOULEVARD S83 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

4711038B00YAY
ref: 1-1

COVER,FRAME,R(BLACK)

€ 0.00

1-2

4711038B00YHG
ref: 1-2

COVER,FRAME,R(GRAY)

€ 0.00

2-1

4721038B00YAY
ref: 2-1

COVER,FRAME,L(BLACK)

€ 132.50

2-2

4721038B00YHG
ref: 2-2

COVER,FRAME,L(GRAY)

€ 0.00

3

6813139BA0
ref: 3

EMBLEM,FRAME COVER

€ 34.50

4

4716538B00
ref: 4

PROTECTOR,FRAME COVER,R

€ 8.00

5

021420612B
ref: 5

SCREW

€ 2.00

6

4717138B00
ref: 6

HOOK,FRAME COVER,L

€ 5.50

7

4717538B00
ref: 7

CUSHION,FRAME COVER HOOK

€ 2.50
