CARBURETOR (REAR)
VS750GLEP 1987 (H) (E02)

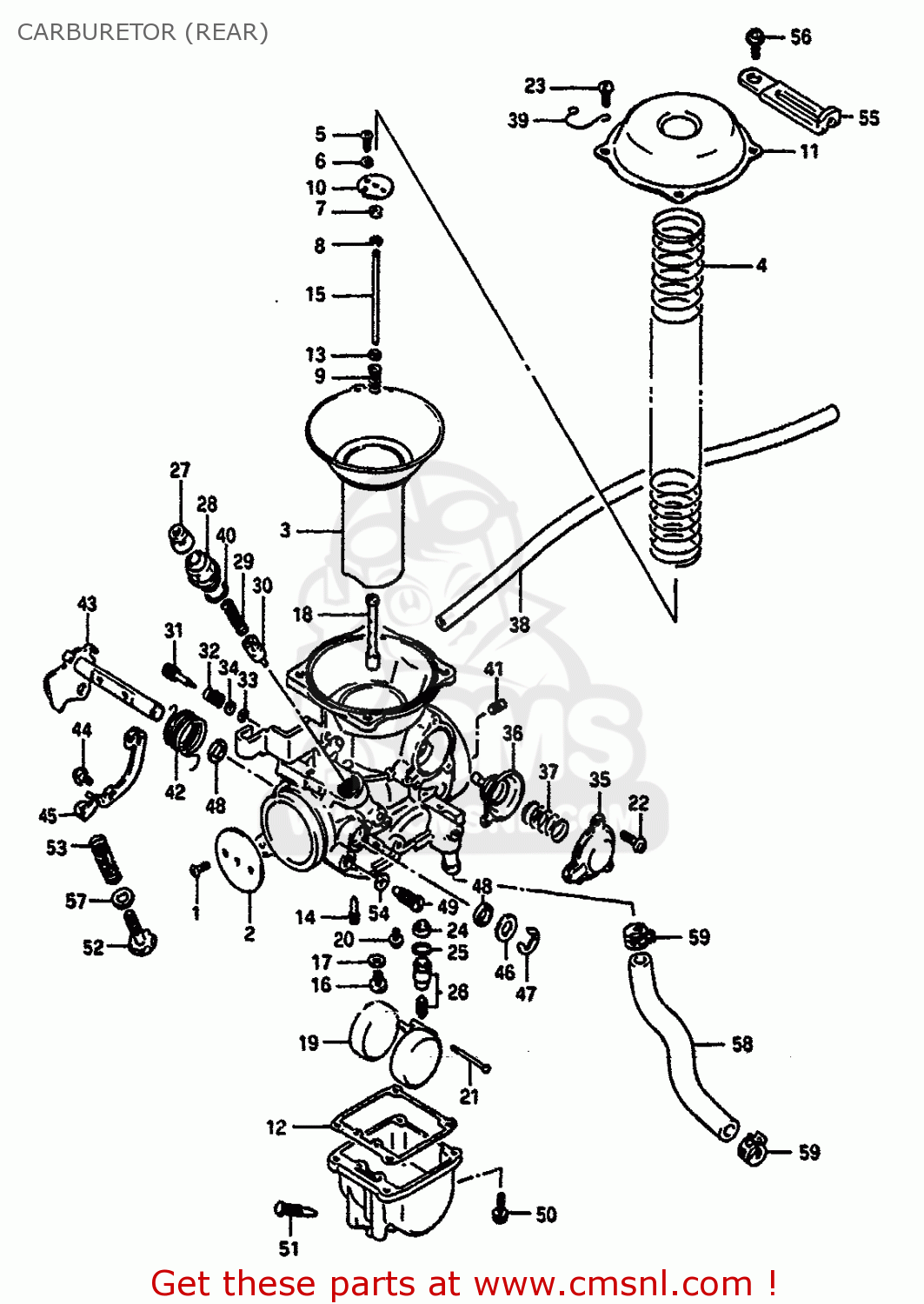

Carburetor (rear) diagram VS750GLEP 1987 (H) (E02)
CARBURETOR (REAR) VS750GLEP 1987 (H) (E02)
×
prices are in EUR
ref
part #
description
quantity
0
1322038A20
ref: 0
MODEL F
CARBURETOR ASSY,REAR
€ 0.00
0
1322038A30
ref: 0
MODEL G
CARBURETOR ASSY,REAR
€ 762.00
0
1322038A90
ref: 0
MODEL H/J/K/L/M
CARBURETOR,RR.
€ 762.00
0
1322039A20
ref: 0
MODEL J/K/L E18
CARBURETOR ASSY,REAR
€ 0.00
0
1322039A30
ref: 0
MODEL L/M E22 MODEL
CARBURETOR ASSY,REAR
€ 762.00
1
1360444080
ref: 1
SCREW
€ 3.50
2
1355138A00
ref: 2
VALVE,THROTTLE
€ 0.00
3
1350038A10
ref: 3
DIAPHRAGM,CARBURETOR
€ 222.50
4
1350305A10
ref: 4
SPRING,DIAPHRAGM
€ 12.00
5
0211203066
ref: 5
SCREW
€ 2.00
6
0832121036
ref: 6
LOCK WASHER
€ 1.50
7
1338747010
ref: 7
RING
€ 7.50
8
1339410010
ref: 8
CLIP
€ 4.50
9
1338844030
ref: 9
SPRING
€ 6.00
10
1338937400
ref: 10
PLATE
€ 5.50
11
1350238A10
ref: 11
COVER,DIAPHRAGM
€ 37.50
12
1325138A10
ref: 12
GASKET,FLOAT CHAMBER (NAS)
€ 8.00
13
1338244030
ref: 13
WASHER
€ 3.50
14-1
0949240014
ref: 14-1
MODEL F
JET(40)
€ 8.50
14-2
0949235010
ref: 14-2
MODEL G/H/J/K/L/M
JET,PILOT(37.5)
€ 10.50
14-3
0949235008
ref: 14-3
MODEL J/K/L E18
JET,PILOT(35)
€ 7.50
15-1
1338338A20
ref: 15-1
MODEL F
NEEDLE,JET
€ 12.50
15-2
1338338A30
ref: 15-2
MODEL G/H/J/K/L/M
NEEDLE,JET
€ 17.50
15-3
1338339A10
ref: 15-3
MODEL J/K/L E18
NEEDLE,JET (5033-3)
€ 13.00
16-1
0949126012
ref: 16-1
MODEL F
JET,MAIN(132.5)
€ 11.50
16-2
0949122016
ref: 16-2
MODEL G/H/J/K/L/M
JET,MAIN(110)
€ 7.00
17
1333244080
ref: 17
WASHER,NEEDLE NOZZLE
€ 2.50
18-1
0949400504
ref: 18-1
JET,NEEDLE (P-4)
€ 19.00
18-2
0949400502
ref: 18-2
MODEL J/K/L E18
JET,NEEDLE
€ 18.00
19
1325223010
ref: 19
FLOAT
€ 19.00
20
1360205A10
ref: 20
SCREW
€ 4.00
21
1325492311
ref: 21
PIN,FLOAT
€ 2.00
22
0211204106
ref: 22
SCREWM4X0.7X10
€ 1.00
23
0211204086
ref: 23
SCREW
€ 2.00
24
1337684110
ref: 24
FILTER
€ 6.50
25
1337444080
ref: 25
O-RING,NEEDLE VALVE
€ 6.00
26
1337001401
ref: 26
VALVE ASSY,NEEDLE
€ 57.50
27
1368104010
ref: 27
CAP
€ 3.00
28
1341843410
ref: 28
HOLDER,GUIDE
€ 6.50
29
1341722010
ref: 29
SPRING
€ 3.00
30
1341138400
ref: 30
PLUNGER
€ 11.50
31-1
1327947080
ref: 31-1
SCREW,PILOT AIR
€ 11.50
31-2
1327947080
ref: 31-2
MODEL L/M E22
SCREW,PILOT AIR
€ 11.50
32
1326847070
ref: 32
SPRING
€ 5.00
33
1329529900
ref: 33
O RING,PILOT AIR SCREW
€ 4.00
34
1329129900
ref: 34
WASHER
€ 2.00
35
1348438A10
ref: 35
COVER
€ 16.00
36
1348005A10
ref: 36
DIAPHRAGM ASSY
€ 54.50
37
1348105A10
ref: 37
SPRING
€ 5.50
38
1368438A20
ref: 38
HOSE
€ 13.00
39
1369202500
ref: 39
CLIP
€ 7.00
40
1327847090
ref: 40
O RING
€ 2.00
41-1
0949275002
ref: 41-1
MODEL F
JET,PILOT
€ 9.00
41-2
0949260010
ref: 41-2
MODEL G/H/J/K/L/M
JET
€ 7.50
42-1
1357338A10
ref: 42-1
MODEL F/G
SPRING
€ 0.00
42-2
1357338A11
ref: 42-2
MODEL H/J/K/L/M
SPRING,SHAFT RETURN
€ 0.00
43
1355038A10
ref: 43
SHAFT ASSEMBLY
€ 0.00
44
1360205A30
ref: 44
SCREW
€ 4.50
45
1355438A10
ref: 45
LEVER,ASSY
€ 25.00
46
1355747070
ref: 46
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
47
1361744080
ref: 47
E RING
€ 3.50
48
1355605A10
ref: 48
SEAL,THROTTLE SHAFT
€ 3.50
49
1360573000
ref: 49
SCREW
€ 10.50
50
1360104148
ref: 50
SCREW
€ 2.50
51
1324702340
ref: 51
PLUG,DRAIN
€ 5.50
52
1326738A10
ref: 52
ADJUSTER
€ 13.00
53
1327193011
ref: 53
SPRING
€ 4.50
54
1353138A00
ref: 54
WASHER
€ 2.00
55
1367105A20
ref: 55
CLIP
€ 3.00
56
1360238A20
ref: 56
SCREW
€ 1.50
57
1327737100
ref: 57
MODEL H/J/K/L/M
WASHER
€ 2.00
58
1368338A01
ref: 58
HOSE
€ 21.50
59
0940113408
ref: 59
CLIP
€ 2.50
