HANDLEBAR-CONTROL CABLE
VS750GLEP 1987 (H) (E02)

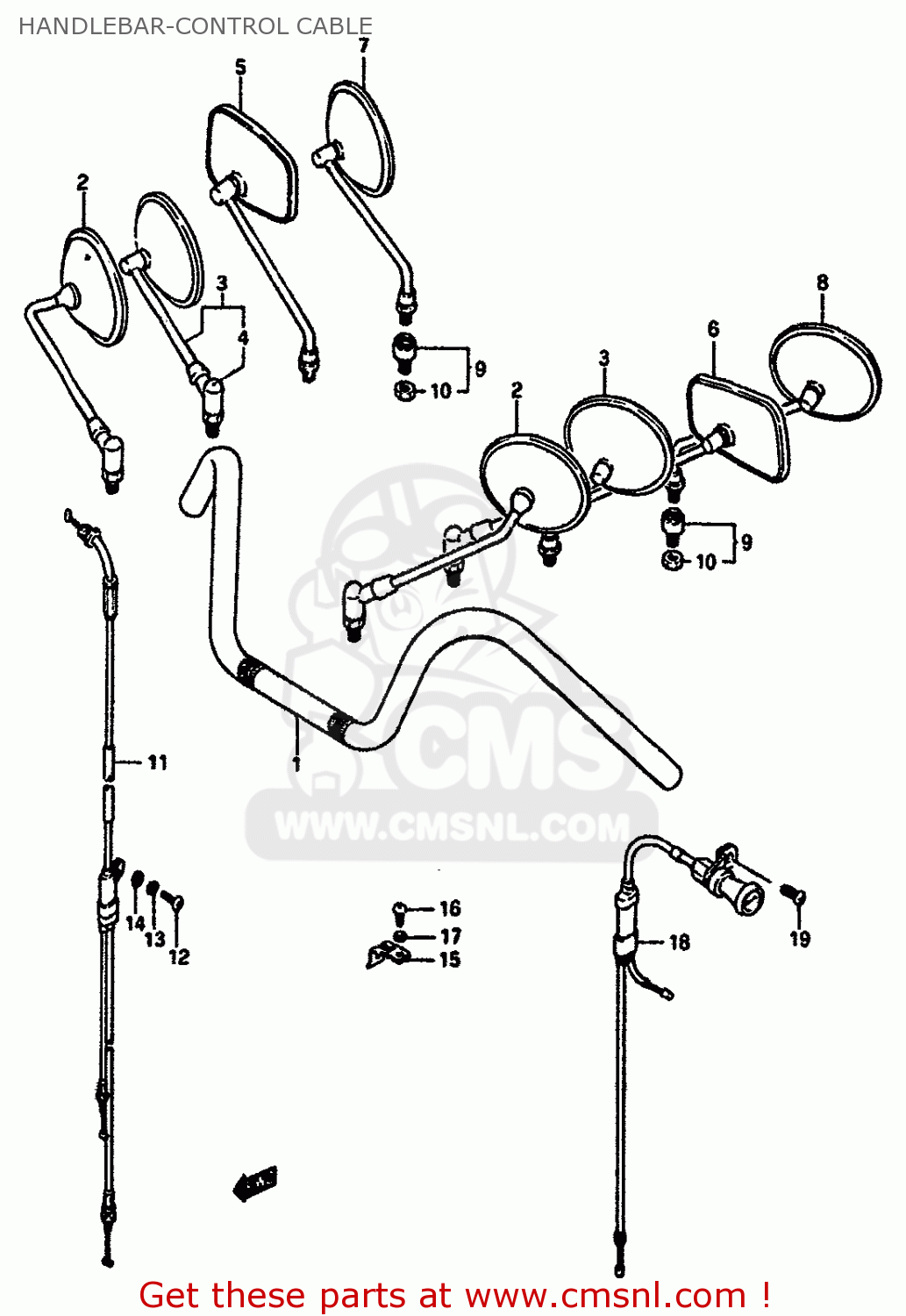

Handlebar-control cable diagram VS750GLEP 1987 (H) (E02)
HANDLEBAR-CONTROL CABLE VS750GLEP 1987 (H) (E02)
×
prices are in EUR
ref
part #
description
quantity
1-1
5611138A10
ref: 1-1
MODEL F/G/H
HANDLEBAR,RIGHT
€ 169.00
1-2
5611138A30
ref: 1-2
MODEL F/G/H E22
HANDLEBAR
€ 169.00
1-3
5611138A50
ref: 1-3
MODEL J/K/L/M
HANDLEBAR
€ 228.00
2
5650008050
ref: 2
MODEL F E2
MIRROR, REAR VIEW RH
€ 27.50
3
5650038A60
ref: 3
MODEL G/H/J/K/L/M E2
MIRROR ASSY,RH
€ 297.50
4
5652428600
ref: 4
CAP
€ 4.00
5
5650038A00
ref: 5
E1,E15,E18,E25,E39 M
MIRROR ASSY,RR VIEW,R
€ 75.50
6
5660038A00
ref: 6
E1,E15,E18,E25,E39 M
MIRROR ASSY,RR VIEW,L
€ 87.00
7
5650045670
ref: 7
E16,MODEL K E24
MIRROR ASSY,REAR VIEW RH
€ 47.00
8
5660045670
ref: 8
E16,MODEL K E24
MIRROR ASSY,REAR VIEW LH
€ 47.00
9
5670031001
ref: 9
E16,MODEL K E24
CUSHION,REAR VIEW MIRROR
€ 18.00
10
0831022107
ref: 10
E16,MODEL K E24
NUT
€ 2.50
11
5830038A10
ref: 11
CABLE ASSEMBLY,THROTTLE
€ 93.00
12-1
0211205128
ref: 12-1
MODEL F/G/H/J/K/L
SCREW
€ 2.50
12-2
0211275128
ref: 12-2
MODEL M
SCREW,THROTTLE CABLE
€ 2.50
13
0832121057
ref: 13
MODEL F/G/H/J/K/L
LOCK WASHER
€ 2.00
14
0832221057
ref: 14
MODEL F/G/H/J/K/L
WASHER
€ 2.50
15
5862138A00
ref: 15
CLAMP,THROTTLE CABLE
€ 6.00
16
0211205107
ref: 16
SCREW
€ 2.00
17
0832121057
ref: 17
LOCK WASHER
€ 2.00
18-1
5840038A00
ref: 18-1
MODEL F/G/H/J
CABLE ASSEMBLY,STARTER
€ 54.00
18-2
5840038A10
ref: 18-2
MODEL K/L/M
CABLE ASSEMBLY,STARTER
€ 65.50
19
0214206104
ref: 19
SCREW
€ 2.00
