SPEEDOMETER
VS750GLEP 1987 (H) (E02)

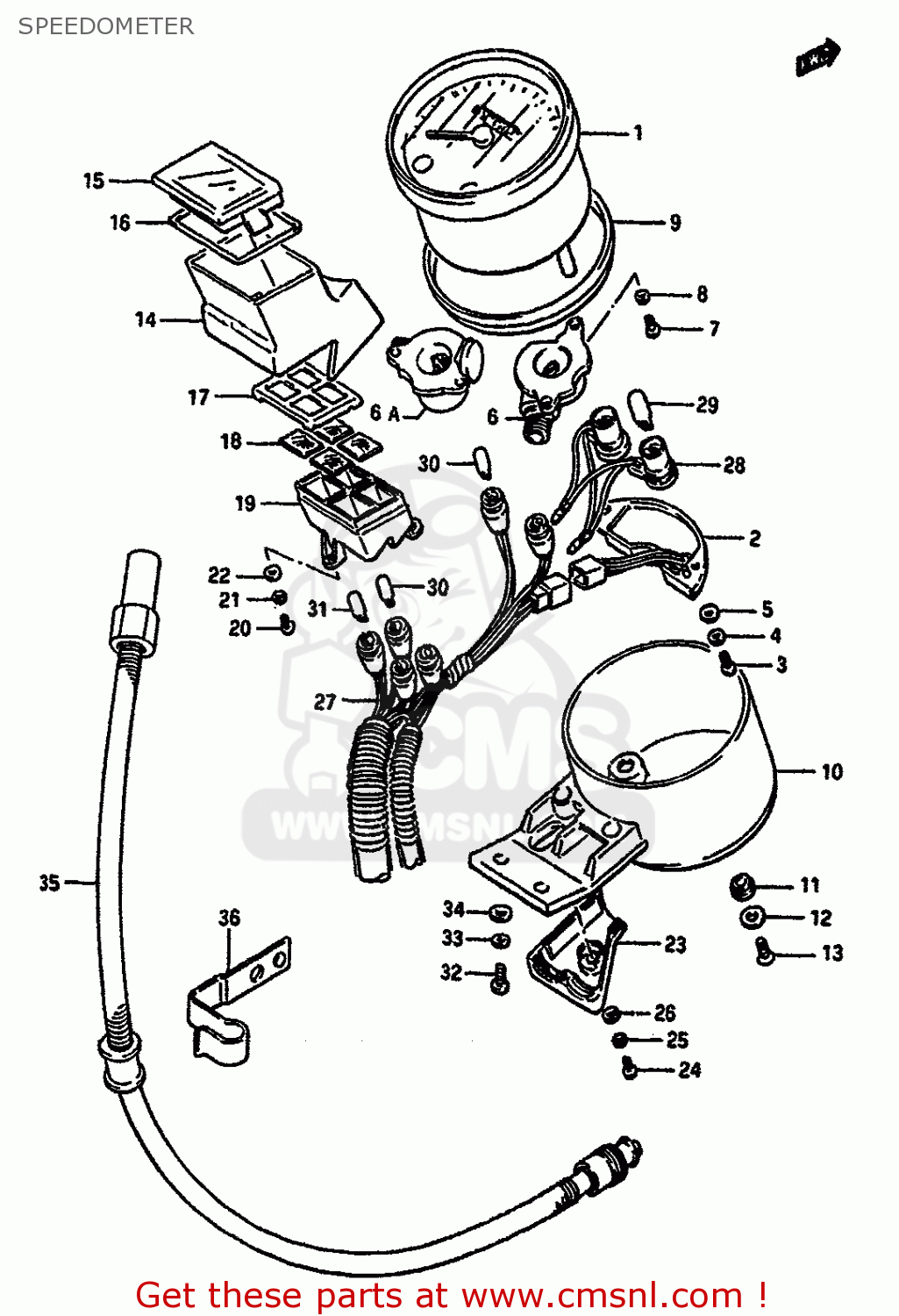

Speedometer diagram VS750GLEP 1987 (H) (E02)
SPEEDOMETER VS750GLEP 1987 (H) (E02)
×
prices are in EUR
ref
part #
description
quantity
1-1
3411038A30
ref: 1-1
MODEL F E2
SPEEDOMETER (MILE/KILO)
€ 233.00
1-2
3411038A60
ref: 1-2
MODEL G/H/L E2
SPEEDOMETER ASSEMBLY
€ 233.00
1-3
3411038A40
ref: 1-3
MODEL F/G/H E4,E21,E
METER,SPEED (K
€ 248.00
1-4
3411038A50
ref: 1-4
MODEL F/G/H E15,E18,
SPEEDOMETER (KILO)
€ 248.00
1-5
3411038A70
ref: 1-5
E17
SPEEDOMETER (KILO)
€ 248.00
1-6
3411039A20
ref: 1-6
MODEL J E4,E18,E22,E
METER,SPEED
€ 424.00
1-7
3411039A60
ref: 1-7
E75,MODEL K/L/M E2
METER,SPEEDOMETER
€ 391.00
2-1
3449038A00
ref: 2-1
MODEL F/G/H
UNIT,WATER TEMP WARNING
€ 98.00
2-2
3449039A10
ref: 2-2
MODEL J/K/L/M
UNIT,WATER TEMP
€ 222.00
3
0211203086
ref: 3
SCREW
€ 1.50
4
0832121036
ref: 4
LOCK WASHER
€ 1.50
5
0832221036
ref: 5
WASHER 3.3X8X0
€ 1.50
6
3413138A00
ref: 6
MODEL F/G/H
BOX,GEAR
€ 150.00
6A
3413138B00
ref: 6A
MODEL J/K/L/M
BOX,METER GEAR
€ 150.00
7
0211204108
ref: 7
SCREW 4X10
€ 2.00
8
0832121047
ref: 8
WASHER,LOCK 4M
€ 2.00
9-1
3428838A00
ref: 9-1
MODEL F/G/H
CUSHION,METER
€ 7.50
9-2
3428839A00
ref: 9-2
MODEL J/K/L/M
CUSHION
€ 14.00
10-1
3419338A00
ref: 10-1
MODEL F/G/H
COVER,METER
€ 125.50
10-2
3419339A20
ref: 10-2
MODEL J/K/L/M
COVER,METER
€ 182.00
11
3418905A30
ref: 11
CUSHION,METER
€ 4.50
12
3418138A00
ref: 12
WASHER
€ 3.50
13
3416438A00
ref: 13
SCREW
€ 1.50
14-1
3638138A00
ref: 14-1
MODEL F/G/H
BOX,PILOT LAMP
€ 34.00
14-2
3638139A20
ref: 14-2
MODEL J/K/L/M
BOX,PILOT
€ 98.00
15
3639338A00
ref: 15
LENS,PILOT BOX
€ 15.00
16
3639538A00
ref: 16
CUSHION
€ 7.00
17
3638638A00
ref: 17
PLATE,PILOT LENS
€ 6.50
18
3630038810
ref: 18
LENS SET
€ 10.50
19-1
3638238A00
ref: 19-1
MODEL F/G/H
CASE,PILOT LAMP
€ 9.00
19-2
3638238B30
ref: 19-2
MODEL J/K/L/M
CASE,PILOT LAMP
€ 19.50
20
0211203086
ref: 20
SCREW
€ 1.50
21
0832121036
ref: 21
LOCK WASHER
€ 1.50
22
0832221036
ref: 22
WASHER 3.3X8X0
€ 1.50
23-1
3415238A00
ref: 23-1
MODEL F/G/H
COVER,PILOT BOX
€ 21.00
23-2
3415239A20
ref: 23-2
MODEL J/K/L/M
COVER,PILOT BOX
€ 67.50
24
0211204087
ref: 24
SCREW
€ 1.50
25
0832121047
ref: 25
WASHER,LOCK 4M
€ 2.00
26
0832221047
ref: 26
WASHER 4MM
€ 2.00
27-1
3417338A20
ref: 27-1
MODEL F E2
SOCKET,METER NO.1
€ 98.00
27-2
3417338A50
ref: 27-2
MODEL G E16,MODEL G/
SOCKET,METER NO.1
€ 98.00
27-3
3417338A20
ref: 27-3
MODEL G E34,MODEL G/
SOCKET,METER NO.1
€ 98.00
27-4
3417339A20
ref: 27-4
MODEL J/K/L/M
SOCKET,METER
€ 120.50
28-1
3417438A00
ref: 28-1
MODEL F/G/H
SOCKET,METER NO.2
€ 16.00
28-2
3417439A10
ref: 28-2
MODEL J/K/L/M
SOCKET
€ 19.50
29
0947112028
ref: 29
MODEL F/G/H
BULB(12V3.4W,T10)
€ 3.50
30-1
0947112103
ref: 30-1
MODEL F/G/H
BULB(12V3W,T6.5)
€ 2.50
30-2
0947112103
ref: 30-2
MODEL J/K/L/M
BULB(12V3W,T6.5)
€ 2.50
31
0947112108
ref: 31
BULB(12V1.7W,T6.5)
€ 2.00
32
0211206167
ref: 32
SCREW
€ 2.50
33
0832121067
ref: 33
WASHER,LOCK
€ 2.50
34
0832221067
ref: 34
MODEL F/G/H/J
WASHER
€ 2.00
35-1
3491038A20
ref: 35-1
MODEL F/G/H
CABLE ASSEMBLY,SPEEDOMETER
€ 184.00
35-2
3491039A00
ref: 35-2
MODEL J/K/L/M
CABLE ASSY,SPEEDOMETER
€ 184.00
36
3493838A20
ref: 36
CLAMP,SPEEDOMETER CABLE
€ 9.50
