RADIATOR

VS750GLEP 1987 (H) (E02)

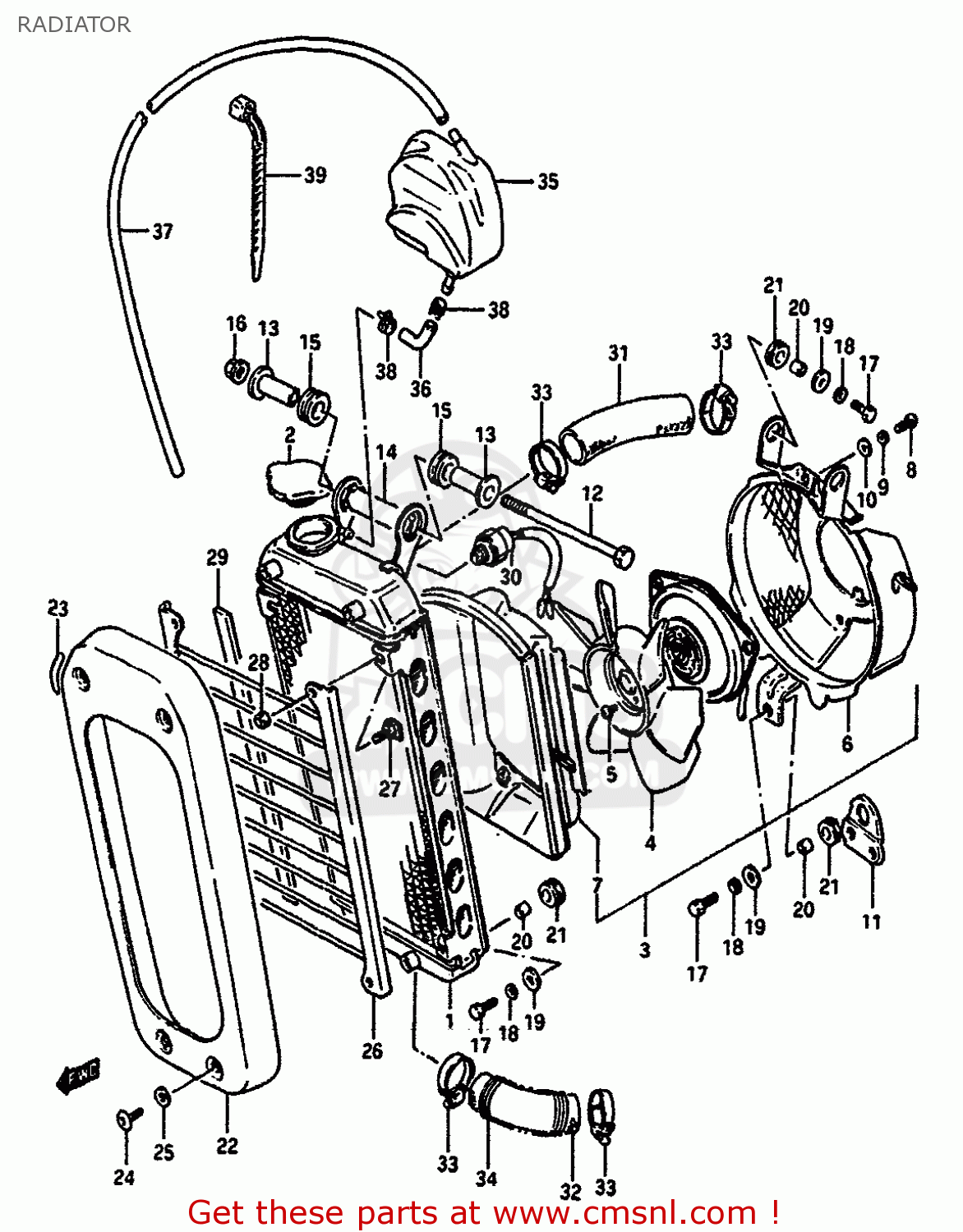

Radiator diagram VS750GLEP 1987 (H) (E02)

RADIATOR VS750GLEP 1987 (H) (E02)
RADIATOR VS750GLEP 1987 (H) (E02)
RADIATOR VS750GLEP 1987 (H) (E02)
prices are in EUR
ref
part #
description
quantity
1
1771038A01
ref: 1
RADIATOR COMP,WATER
€ 681.00
2-1
1773024A00
ref: 2-1
MODEL F/G/H/J/K
CAP,RADIATOR
€ 40.00
2-2
1773020930
ref: 2-2
MODEL L/M
CAP,RADIATOR 1.1
1773020930
€ 40.00
3
1780038A02
ref: 3
FAN ASSEMBLY,RADIATOR
€ 496.00
4
1782038A00
ref: 4
FAN
€ 51.00
5
1780105A00
ref: 5
BOLT
€ 2.00
6
1777038A01
ref: 6
SHROUD,FAN
€ 78.50
7
1715038A00
ref: 7
DUCT,FAN
€ 82.50
8
0211205106
ref: 8
SCREW 5X10
€ 2.00
9
0832121056
ref: 9
LOCK WASHER
0832121056
€ 3.00
10
0832221056
ref: 10
WASHER
€ 2.50
11
1780838A00
ref: 11
BRACKET,RADIATOR FAN
1780838A00
€ 4.00
12
0910010198
ref: 12
BOLT 10X135
€ 4.00
13-1
1778238A00
ref: 13-1
~F.NO.103866
SPACER,RADIATOR CUSHION
€ 12.50
13-2
1778238A01
ref: 13-2
F.NO.103867~
SPACER,RADIATOR CUSHION NO.2
1778238A01
€ 12.50
14
1778338A00
ref: 14
SPACER,RDTR CUSH NO.2 OUTER
1778338A00
€ 2.00
15
0932015008
ref: 15
CUSHION
0932015008
€ 3.50
16
0831931105
ref: 16
NUT 10MM
€ 3.00
17
0110706165
ref: 17
BOLT 6X16
0110706165
€ 2.00
18
0832121064
ref: 18
WASHER,LOCK
0832121064
€ 2.00
19
0916006039
ref: 19
WASHER (6.5X18X1.6)
0916006039
€ 2.00
20
0918006154
ref: 20
SPACER (6X9X8)
€ 2.00
21
0932008037
ref: 21
CUSHION
0932008037
€ 4.00
22-1
1776138A11
ref: 22-1
MODEL F/G
COVER,RADIATOR (BLACK)
€ 74.50
22-2
1776138A5013Z
ref: 22-2
MODEL H
COVER,RADIATOR
€ 74.50
22-3
1776138A5024V
ref: 22-3
MODEL H
COVER,RADIATOR (BLUE)
€ 74.50
22-4
1776138A50330
ref: 22-4
MODEL H
COVER,RADIATOR (MAROON)
€ 0.00
22-5
1776138A5020U
ref: 22-5
MODEL J/K/L
COVER,RADIATOR (MAROON)
€ 77.00
22-6
1776138A5033J
ref: 22-6
MODEL J/K/L
COVER,RADIATOR(BLACK)
€ 74.50
22-7
1776138A5014W
ref: 22-7
MODEL M
COVER,RADIATOR
€ 74.50
22-8
1776138A5019A
ref: 22-8
MODEL M
COVER,RADIATOR
€ 74.50
22-9
1776138A01
ref: 22-9
MODEL F/G E39
COVER,RADIATOR
€ 74.50
22-10
1776138A4013Z
ref: 22-10
MODEL H E39
COVER,RADIATOR
€ 74.50
22-11
1776138A4024V
ref: 22-11
MODEL H E39
COVER,RADIATOR
€ 74.50
22-12
1776138A40330
ref: 22-12
MODEL H E39
COVER,RADIATOR (MAROON)
€ 0.00
22-13
1776138A4020U
ref: 22-13
MODEL J E77,MODEL K/
COVER,RADIATOR
€ 77.00
22-14
1776138A4033J
ref: 22-14
MODEL J E77,MODEL K/
COVER,RADIATOR
1776138A4033J
€ 74.50
22-15
1776138A4014W
ref: 22-15
MODEL M E39
COVER,RADIATOR
€ 74.50
22-16
1776138A4019A
ref: 22-16
MODEL M E39
COVER,RADIATOR
€ 74.50
23
1776538A00
ref: 23
MODEL F/G
TAPE,RATIATOR COVER
€ 0.00
24
0913906041
ref: 24
SCREW
0913906041
€ 2.50
25
0916006093
ref: 25
WASHER (6.2X14X2)
0916006093
€ 2.00
26
1779038A00
ref: 26
BUMPER COMP,RADIATOR
1779038A00
€ 25.50
27
0911905014
ref: 27
BOLT
0911905014
€ 2.50
28
0831022055
ref: 28
NUT 5MM
0831022055
€ 2.00
29
1779538A00
ref: 29
CUSHION,RADIATOR BUMPER
€ 3.00
30-1
1768038A00
ref: 30-1
MODEL F/G/H/J/K
SWITCH
1768038A00
€ 106.50
30-2
1768024A02
ref: 30-2
MODEL L/M
SWITCH,RADIATOR FAN
1768024A02
€ 106.50
31
1785138A00
ref: 31
HOSE,RADIATOR INLET
1785138A00
€ 11.50
32
1785238A00
ref: 32
HOSE,RADIATOR
1785238A00
€ 16.50
33-1
0940230501
ref: 33-1
MODEL F/G
CLAMP
€ 11.50
33-2
0940230502
ref: 33-2
MODEL H/J/K/L/M
CLAMP
€ 11.50
34
0944035005
ref: 34
SPRING
0944035005
€ 4.00
35
1791138A00
ref: 35
TANK,RESERVOIR
1791138A00
€ 23.00
36
1798138A01
ref: 36
HOSE,RESERVE TANK INLET
1798138A01
€ 7.00
37
1798238A03
ref: 37
HOSE,RESERVOIR TANK OVERFLOW
€ 16.00
38
0940108407
ref: 38
CLIP
€ 3.00
39
0940714403
ref: 39
CLAMP(L:125)
0940714403
€ 2.50
