HANDLEBAR-CONTROL CABLE (VS750GLFG/GLFH/GLFJ/GLFK/GLFL/GLFM)

VS750GLEP 1987 (H) (E02)

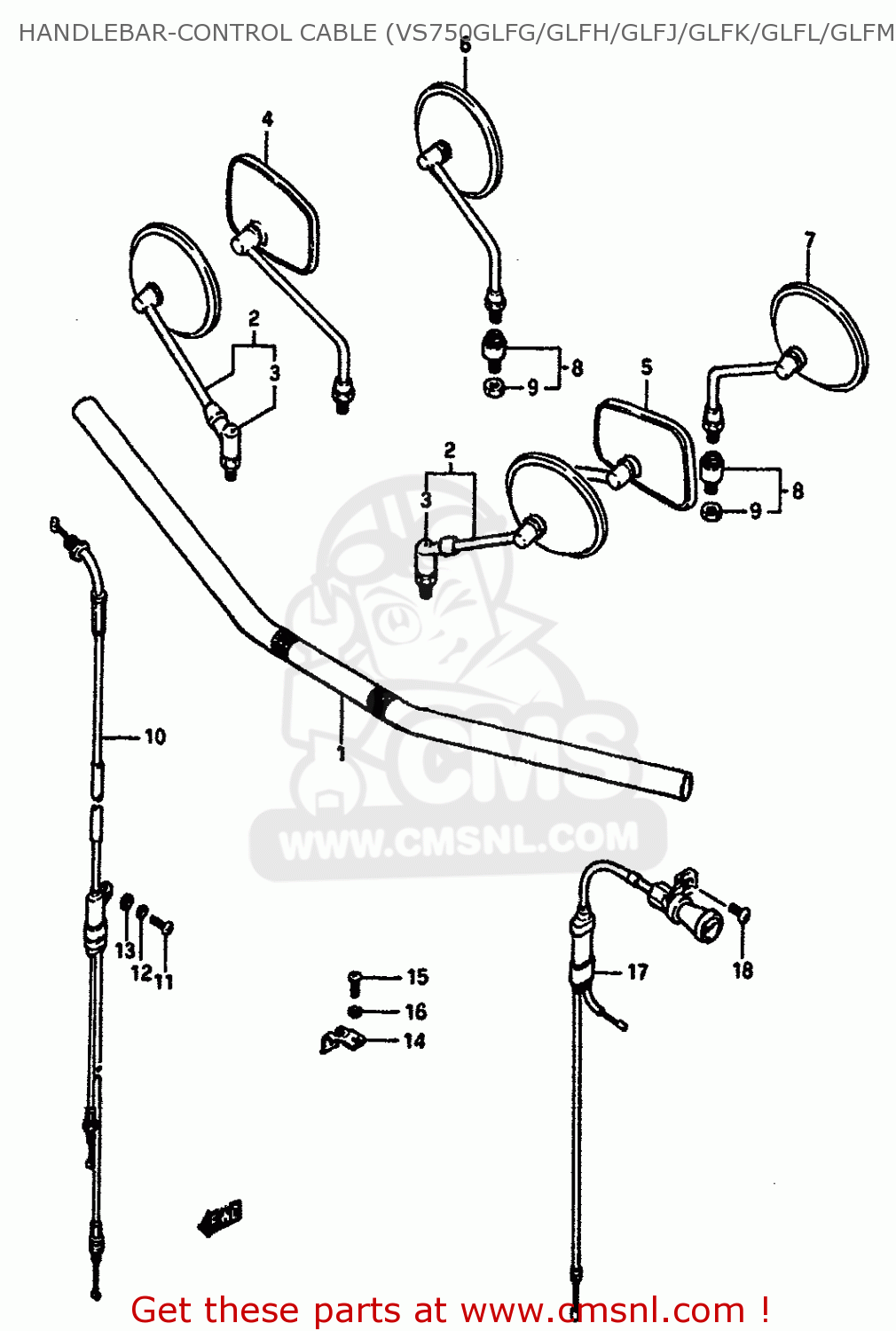

Handlebar-control cable (vs750glfg/glfh/glfj/glfk/glfl/glfm) diagram VS750GLEP 1987 (H) (E02)

HANDLEBAR-CONTROL CABLE (VS750GLFG/GLFH/GLFJ/GLFK/GLFL/GLFM) VS750GLEP 1987 (H) (E02)

HANDLEBAR-CONTROL CABLE (VS750GLFG/GLFH/GLFJ/GLFK/GLFL/GLFM) VS750GLEP 1987 (H) (E02)

prices are in EUR

ref

part #

description

quantity

1-1

5611138A00
ref: 1-1
MODEL G/H

HANDLEBAR,RIGHT

€ 70.50

1-2

5611138A20
ref: 1-2
MODEL G/H E22

HANDLEBAR

€ 70.50

1-3

5611138A40
ref: 1-3
MODEL J/K/L/M

HANDLEBAR

€ 135.00

2

5650038A50
ref: 2
E2,E4,E21,E22,E24,E7

MIRROR ASSY,R.

€ 356.00

3

5652428600
ref: 3

CAP

€ 4.00

4

5650038A30
ref: 4
E1,E15,E18,E25,E39 M

MIRROR ASSY,RR VIEW,R

€ 75.00

5

5660038A30
ref: 5
E1,E15,E18,E25,E39 M

MIRROR ASSY,RR VIEW,L

€ 75.50

6

5650045121
ref: 6
E16

MIRROR ASSY RH

€ 209.00

7

5660045121
ref: 7
E16

MIRROR ASSY

€ 209.00

8

5670031001
ref: 8
E16

CUSHION,REAR VIEW MIRROR

€ 18.00

9

0831022107
ref: 9
E16

NUT

€ 2.50

10

5830038A00
ref: 10

CABLE ASSEMBLY,THROTTLE

€ 60.00

11-1

0211205128
ref: 11-1
MODEL G/H/J/K/L

SCREW

€ 2.50

11-2

0211275128
ref: 11-2
MODEL M

SCREW,THROTTLE CABLE

€ 2.50

12

0832121057
ref: 12
MODEL G/H/J/K/L

LOCK WASHER

€ 2.00

13

0832221057
ref: 13
MODEL G/H/J/K/L

WASHER

€ 2.50

14

5862138A00
ref: 14

CLAMP,THROTTLE CABLE

€ 6.00

15

0211205107
ref: 15

SCREW

€ 2.00

16

0832121057
ref: 16

LOCK WASHER

€ 2.00

17-1

5840038A00
ref: 17-1
MODEL G/H/J

CABLE ASSEMBLY,STARTER

€ 54.00

17-2

5840038A10
ref: 17-2
MODEL K/L/M

CABLE ASSEMBLY,STARTER

€ 65.50

18

0214206104
ref: 18

SCREW

€ 2.00
