Buy Suzuki VS Parts Online


FRONT MASTER CYLINDER (VS750GLPJ/GLPK/GLPL/GLPM)

VS750GLEP 1987 (H) (E02)

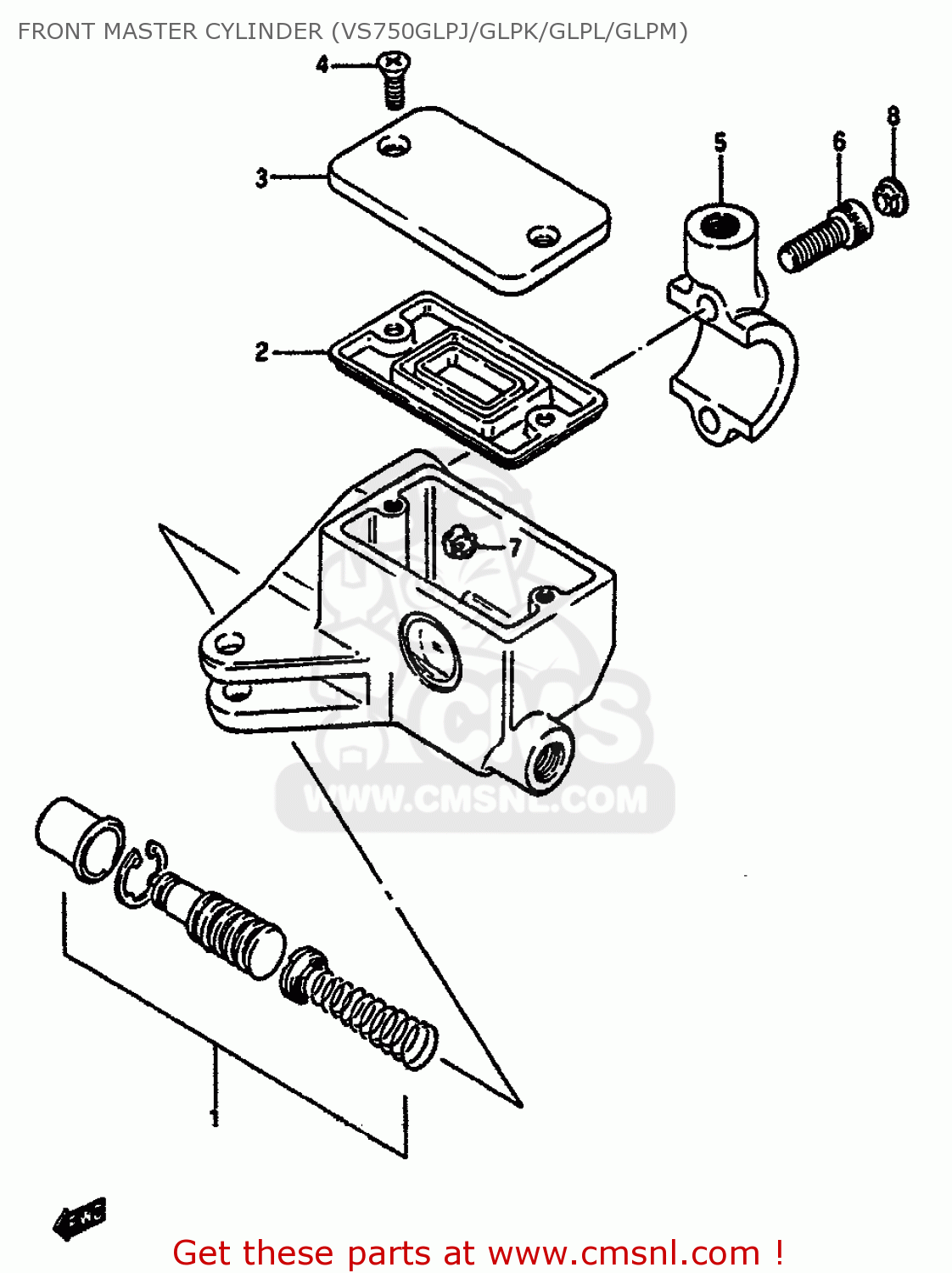

Front master cylinder (vs750glpj/glpk/glpl/glpm) diagram VS750GLEP 1987 (H) (E02)

FRONT MASTER CYLINDER (VS750GLPJ/GLPK/GLPL/GLPM) VS750GLEP 1987 (H) (E02)
FRONT MASTER CYLINDER (VS750GLPJ/GLPK/GLPL/GLPM) VS750GLEP 1987 (H) (E02)
FRONT MASTER CYLINDER (VS750GLPJ/GLPK/GLPL/GLPM) VS750GLEP 1987 (H) (E02)
prices are in EUR
ref
part #
description
quantity
0
5960024B10
ref: 0
VS750GLPJ
CYLINDER ASSEMBLY,FRONT MASTER
€ 328.00
0
5960024B50
ref: 0
VS750GLPK/GLPL/GLPM
CYLINDER ASSY,FR MASTER
5960024B50
€ 391.50
1
5960036820
ref: 1
CUP SET,MASTER CYLINDER
5960036820
€ 37.50
2
5966749460
ref: 2
5966749460
3-1
5966938A30
ref: 3-1
VS750GLPJ
CAP
5966938A30
€ 45.50
3-2
5966924B00
ref: 3-2
VS750GLPK/GLPL/GLPM
CAP
5966924B00
€ 59.00
4
5969138A00
ref: 4
SCREW,RESERVOIR CAP
5969138A00
€ 2.00
5
5967138A00
ref: 5
HOLDER
5967138A00
€ 37.50
6
0711006208
ref: 6
BOLT ,6X20
0711006208
€ 3.50
7
5966448B00
ref: 7
VS750GLPK/GLPL/GLPM
PROTECTOR
5966448B00
€ 8.00
8
0925005008
ref: 8
CAP(OD:10)
0925005008
€ 5.00
