PILLION RIDER HANDLE
VS750GLEP 1987 (H) (E02)

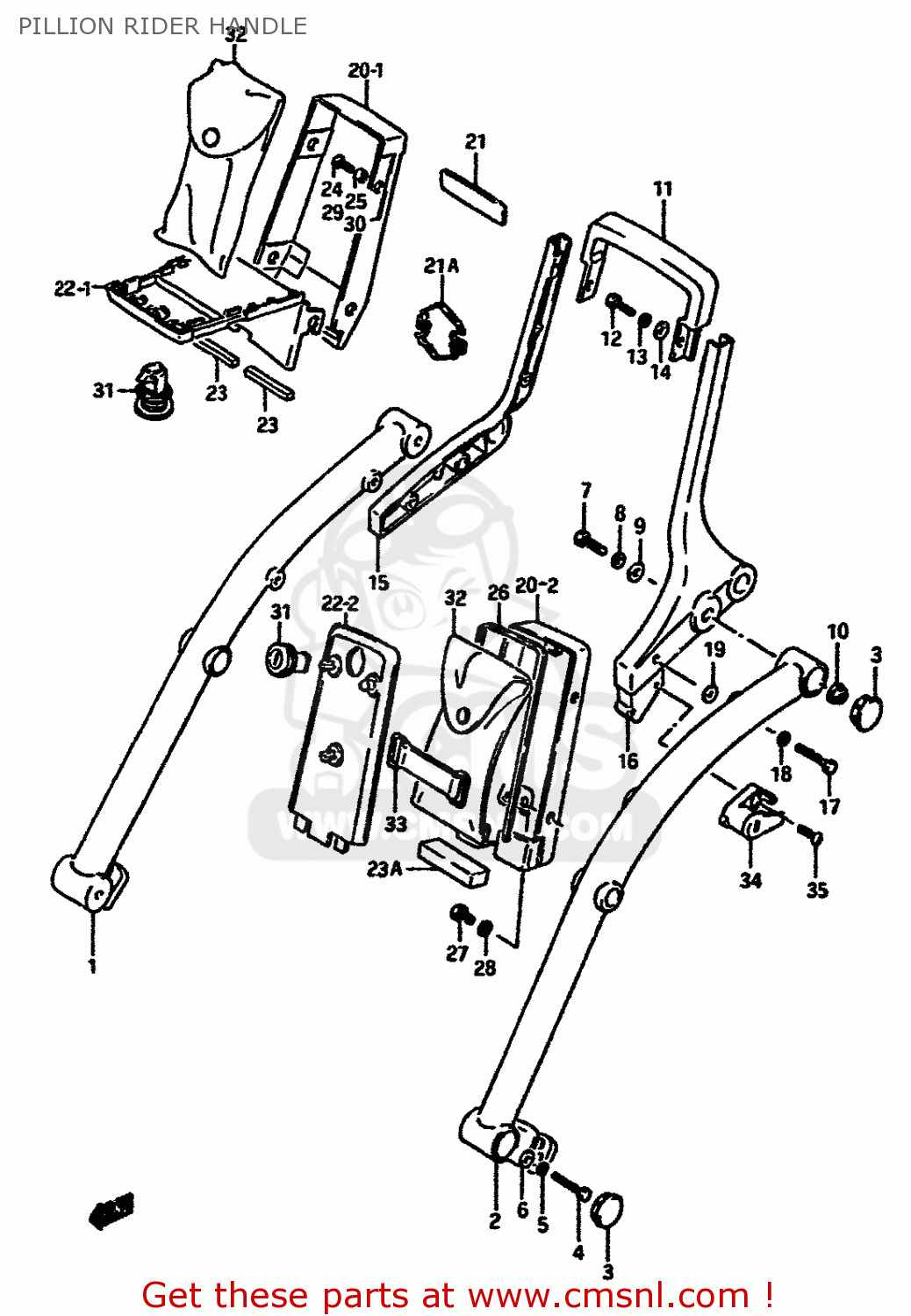

Pillion rider handle diagram VS750GLEP 1987 (H) (E02)
PILLION RIDER HANDLE VS750GLEP 1987 (H) (E02)
×
prices are in EUR
ref
part #
description
quantity
1-1
4161038A10
ref: 1-1
MODEL F/G
GRIP,FRAME HANDLE
€ 243.50
1-2
4161038A30
ref: 1-2
MODEL H/J/K/L/M
GRIP,FRAME HANDLE,RIGHT
€ 243.50
1-3
4161038A00
ref: 1-3
MODEL F/G E39
GRIP,FRAME HANDLE
€ 243.50
1-4
4161038A20
ref: 1-4
MODEL H E39,MODEL J
GRIP,FRAME HANDLE RH
€ 243.50
2-1
4162038A10
ref: 2-1
MODEL F/G
GRIP,FRAME HANDLE,LEFT
€ 308.00
2-2
4162038A30
ref: 2-2
MODEL H/J/K/L/M
GRIP,FRAME HANDLE,LEFT
€ 308.00
2-3
4162038A00
ref: 2-3
MODEL F/G E39
GRIP,FRAME HANDLE,LEFT
€ 308.00
2-4
4162038A20
ref: 2-4
MODEL H E39,MODEL J
GRIP,FRAME HANDLE LH
€ 308.00
3
9567224A00
ref: 3
CAP,FRAME HANDLE GRIP
€ 5.00
4
0110708506
ref: 4
BOLT,FRONT
€ 3.00
5
0832121086
ref: 5
WASHER,LOCK,8.
€ 2.50
6
0832221086
ref: 6
WASHER
€ 1.50
7
0110708207
ref: 7
BOLT
€ 3.00
8
0832121088
ref: 8
LOCK WASHER
€ 2.00
9
0832221088
ref: 9
WASHER
€ 2.00
10
0831616086
ref: 10
NUT, WHEEL SET
€ 3.00
11-1
4621138A00
ref: 11-1
MODEL F/G/H,MODEL J/
HANDLE,PILLION RIDER,U
€ 68.50
11-2
4621138B00
ref: 11-2
MODEL J/K/L/M
HANDLE,PILLION RIDER
€ 69.00
12
0110706166
ref: 12
BOLT
€ 2.00
13
0832121067
ref: 13
WASHER,LOCK
€ 2.50
14
0832221067
ref: 14
WASHER
€ 2.00
15-1
4621238A01
ref: 15-1
MODEL F/G/H,MODEL J/
HANDLE,PILLION RIDER
€ 100.00
15-2
4621238A20
ref: 15-2
MODEL J/K/L/M
HANDLE,PILLION RIDER
€ 139.50
16-1
4621338A01
ref: 16-1
MODEL F/G/H,MODEL J/
HANDLE,PILLION RIDER
€ 103.50
16-2
4621338A20
ref: 16-2
MODEL J/K/L/M
HANDLE,PILLION RIDER
€ 95.50
17
0110706356
ref: 17
BOLT ,6X35
€ 2.50
18
0832121066
ref: 18
WASHER,LOCK
€ 2.00
19
0832221066
ref: 19
WASHER, LOWER
€ 2.00
20-1
4743038A01
ref: 20-1
MODEL F/G/H,MODEL J/
HOLDER,TOOL RR
€ 12.50
20-2
4743038B01225
ref: 20-2
MODEL J/K/L/M
HOLDER,TOOL REAR (BLACK)
€ 0.00
21
6826138A00
ref: 21
MODEL H,MODEL J/K/L/
EMBLEM
€ 16.50
21A
6826138A20
ref: 21A
MODEL J/K/L/M
EMBLEM
€ 31.00
22-1
4744038A01
ref: 22-1
MODEL F/G/H,MODEL J/
HOLDER,TOOL FR
€ 11.00
22-2
4744138B00
ref: 22-2
MODEL J/K/L/M
HOLDER,TOOL FR
€ 15.00
23
4745138A01
ref: 23
MODEL F/G/H,MODEL J/
CUSHION,TOOL HOLDER
€ 3.00
23A
4743838B00
ref: 23A
MODEL J/K/L/M
CUSHION,TOOL BACK
€ 19.50
24
0214205126
ref: 24
MODEL F/G/H
SCREW
€ 1.50
25
0918005023
ref: 25
MODEL F/G/H
SPACER
€ 1.50
26
4743738B00
ref: 26
MODEL J/K/L/M
MOLDING,TOOL HOLDER RR
€ 5.00
27-1
0110706127
ref: 27-1
MODEL J
BOLT
€ 2.00
27-2
0113706128
ref: 27-2
MODEL K/L/M
BOLT
€ 2.50
28
0832121067
ref: 28
MODEL J
WASHER,LOCK
€ 2.50
29
0214205126
ref: 29
MODEL J/K/L/M E22
SCREW
€ 1.50
30
0918005015
ref: 30
MODEL J/K/L/M E22
SPACER (5.5X8X4)
€ 3.00
31
9570024831
ref: 31
LOCK SET,TOOL HOLDER
€ 79.50
32-1
0980000296
ref: 32-1
MODEL F/G/H
TOOL ASSY
€ 50.00
32-2
0980020008
ref: 32-2
MODEL J/K/L/M
TOOL ASSY
€ 23.50
32-3
0980020002
ref: 32-3
E22
TOOL ASSY
€ 23.50
33
0946200008
ref: 33
MODEL J/K/L/M
BAND
€ 4.50
34
9570038821
ref: 34
LOCK SET,HELMET
€ 54.00
35
0211205128
ref: 35
SCREW
€ 2.50
