REAR WHEEL (VS750GLFH/GLPH,MODEL J/K/L/M)
VS750GLEP 1987 (H) (E02)

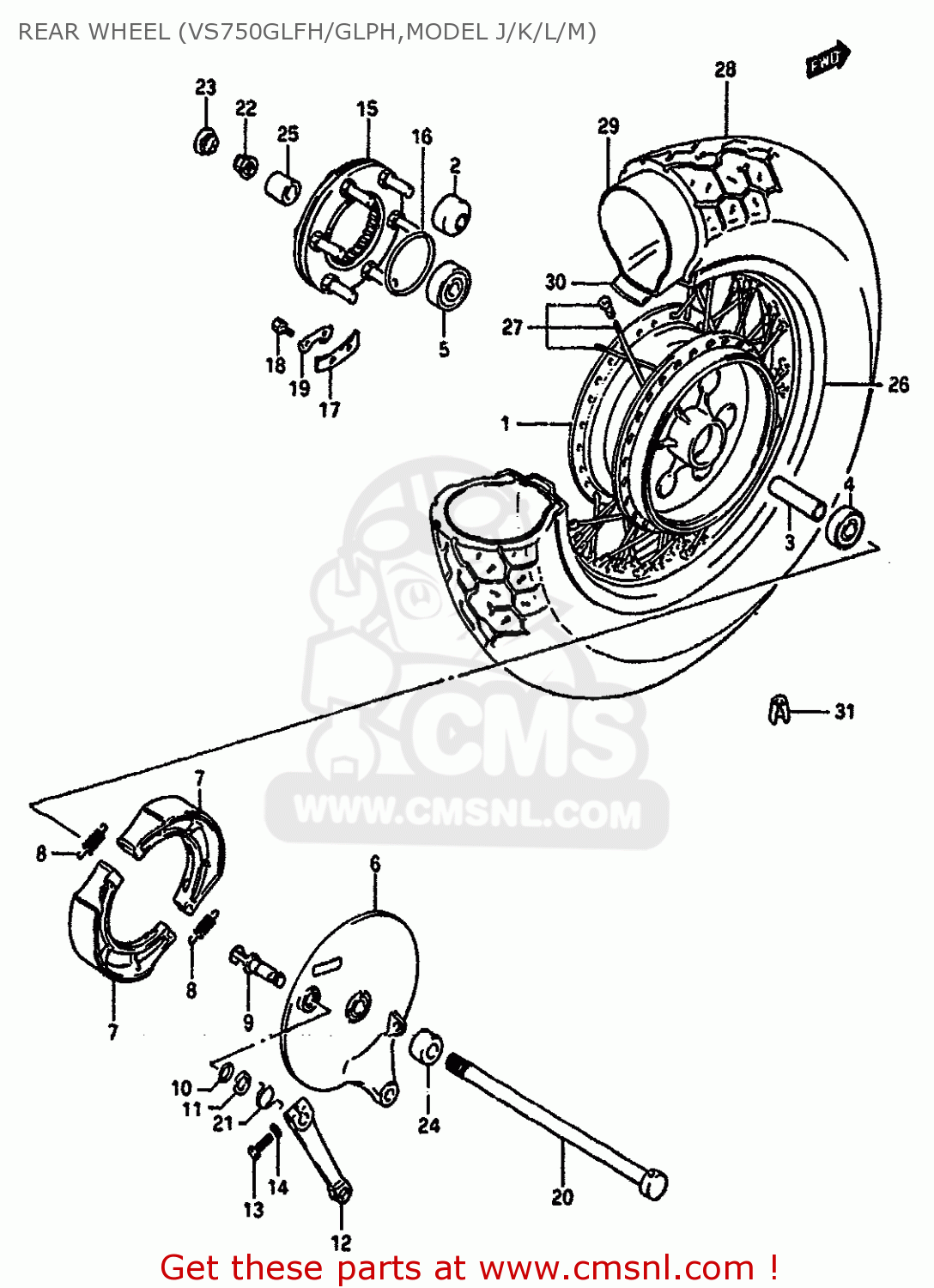

Rear wheel (vs750glfh/glph,model j/k/l/m) diagram VS750GLEP 1987 (H) (E02)
REAR WHEEL (VS750GLFH/GLPH,MODEL J/K/L/M) VS750GLEP 1987 (H) (E02)
×
prices are in EUR
ref
part #
description
quantity
1
6410007860
ref: 1
HUB SET,REAR
€ 392.00
2
0931912019
ref: 2
BUSH
€ 10.50
3-1
6473137200
ref: 3-1
MODEL H
SPACER,REAR HUB BEARING
€ 19.00
3-2
0918017091
ref: 3-2
MODEL J/K/L/M
SPACER(17.5X25X80)
€ 13.00
4
0813362037
ref: 4
BEARING
€ 24.50
5
0814363037
ref: 5
BEARING
€ 23.00
6
6421038A20
ref: 6
PANEL,REAR BRAKE ANCHOR
€ 253.00
7-1
6441007A01
ref: 7-1
MODEL H
SHOE SET,BRAKE (MCA)
€ 56.50
7-2
6441038A00
ref: 7-2
MODEL J/K/L/M
SHOE,BRAKE
€ 56.50
8
5542030000
ref: 8
SPRING,BRAKE SHOE
€ 3.50
9
6444038A00
ref: 9
CAM,RR BRAKE
€ 43.00
10
0928015001
ref: 10
O-RING,BOSS
€ 2.00
11
0916015001
ref: 11
WASHER (15X24X1.6)
€ 2.50
12
6445138A01
ref: 12
LEVER,RR BRAKE CAM
€ 33.00
13
0110706257
ref: 13
BOLT
€ 2.00
14
0832121067
ref: 14
WASHER,LOCK
€ 2.50
15
6468007A01
ref: 15
JOINT ASSEMBLY,REAR HUB DRUM
€ 181.50
16
0928065003
ref: 16
O RING(D:2.1,ID:65)
€ 2.50
17
6467745110
ref: 17
WASHER,THRUST(T:1.6)
€ 2.50
18
0911906049
ref: 18
BOLT(6X16)
€ 1.50
19
0916906030
ref: 19
WASHER
€ 2.00
20
6471138A10
ref: 20
AXLE,REAR
€ 65.50
21
0944833006
ref: 21
SPRING
€ 11.00
22
0831931148
ref: 22
NUT
€ 9.00
23
6479138B00
ref: 23
CAP,RR AXLE,R
€ 83.50
24
6474138A21
ref: 24
SPACER,REAR AXLE,RIGHT
€ 20.00
25
6477234201
ref: 25
SPACER,RR AXLE,L
€ 14.50
26-1
6531138A00
ref: 26-1
MODEL H/J
RIM,REAR WHEEL
€ 331.50
26-2
6531138A01
ref: 26-2
MODEL K/L/M
RIM,REAR WHEEL (MT3.00X
€ 331.50
27
6532038A01
ref: 27
SPOKE SET,RR WHEEL
€ 164.00
28-1
6510038A40
ref: 28-1
MODEL H/J
TIRE
€ 159.00
28-2
6510038A41
ref: 28-2
MODEL K/L/M
TIRE,REAR 140/90-15M/C
€ 159.00
29
6520038A00
ref: 29
TUBE ASSEMBLY,WHEEL,INNER
€ 32.50
30
6526138A00
ref: 30
PROTECTOR,WHL INR TUBE
€ 3.50
31-1
5541238A00
ref: 31-1
BALANCER,WHEEL
€ 6.50
31-2
5541338A00
ref: 31-2
BALANCER,WHEEL (30G)
€ 8.00
