REAR WHEEL (MODEL F/G)
VS750GLEP 1987 (H) (E02)

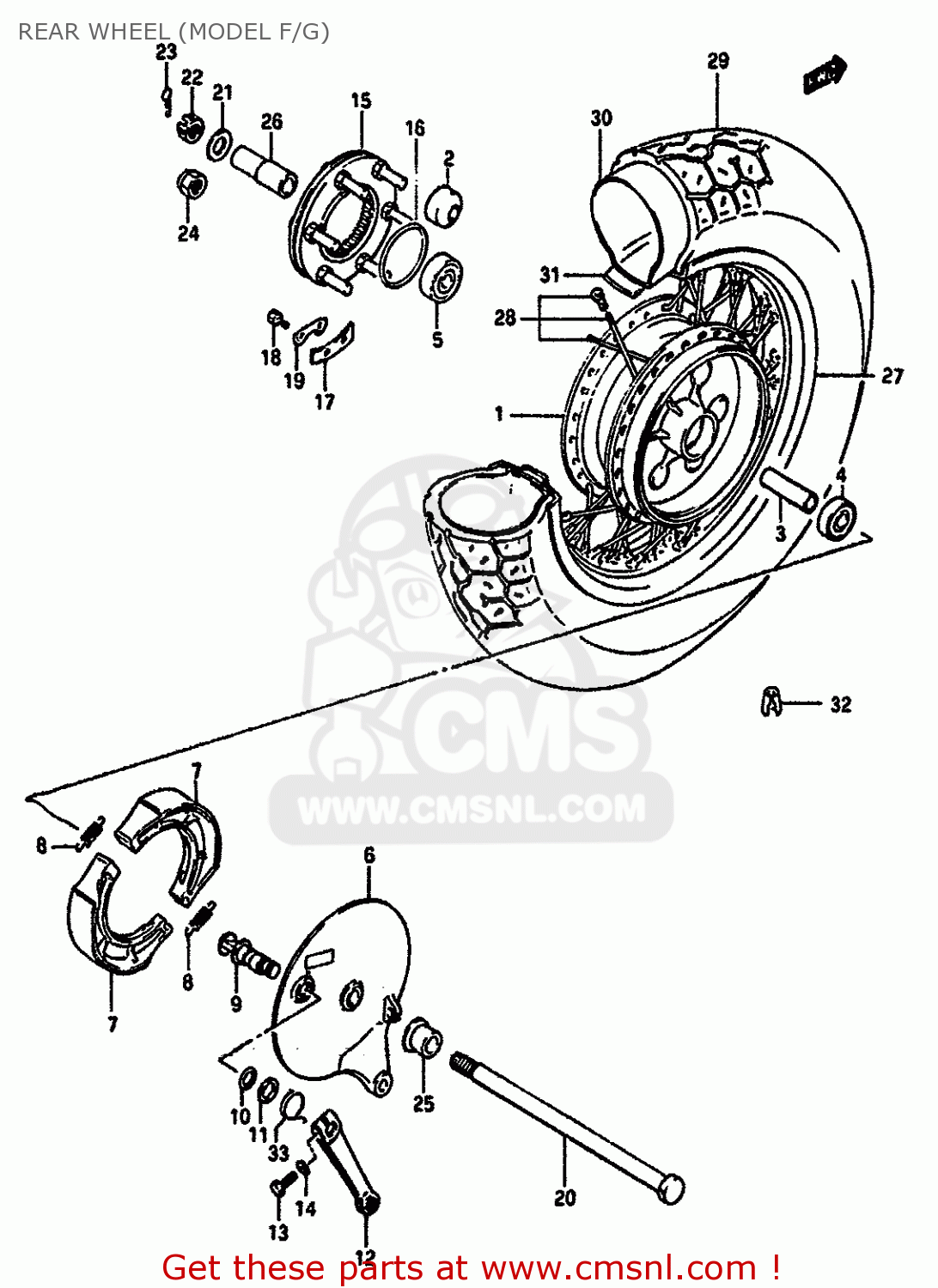

Rear wheel (model f/g) diagram VS750GLEP 1987 (H) (E02)
REAR WHEEL (MODEL F/G) VS750GLEP 1987 (H) (E02)
×
prices are in EUR
ref
part #
description
quantity
1
6410007850
ref: 1
HUB SET,REAR
€ 392.00
2
0931912037
ref: 2
BUSHING
€ 0.00
3
6473137200
ref: 3
SPACER,REAR HUB BEARING
€ 19.00
4
0813362037
ref: 4
BEARING
€ 24.50
5
0814363037
ref: 5
BEARING
€ 23.00
6-1
6421038A02
ref: 6-1
MODEL F
PANEL,REAR BRAKE ANCHOR
€ 126.00
6-2
6421038A20
ref: 6-2
MODEL G
PANEL,REAR BRAKE ANCHOR
€ 253.00
7
6441007A01
ref: 7
SHOE SET,BRAKE (MCA)
€ 56.50
8
5542030000
ref: 8
SPRING,BRAKE SHOE
€ 3.50
9
6444038A00
ref: 9
CAM,RR BRAKE
€ 43.00
10
0928015001
ref: 10
O-RING,BOSS
€ 2.00
11
0916015001
ref: 11
WASHER (15X24X1.6)
€ 2.50
12
6445138A01
ref: 12
LEVER,RR BRAKE CAM
€ 33.00
13
0110706257
ref: 13
BOLT
€ 2.00
14
0832121067
ref: 14
WASHER,LOCK
€ 2.50
15
6468007A01
ref: 15
JOINT ASSEMBLY,REAR HUB DRUM
€ 181.50
16
0928065003
ref: 16
O RING(D:2.1,ID:65)
€ 2.50
17
6467745110
ref: 17
WASHER,THRUST(T:1.6)
€ 2.50
18
0911906049
ref: 18
BOLT(6X16)
€ 1.50
19
0916906030
ref: 19
WASHER
€ 2.00
20
6471138A00
ref: 20
AXLE,REAR
€ 46.50
21
0916016025
ref: 21
WASHER(16.5X36X3.2)
€ 2.50
22
0914116001
ref: 22
MODEL F
NUT
€ 6.50
23
6479138A00
ref: 23
MODEL F
COTTER PIN
€ 0.00
24
0915916002
ref: 24
MODEL G
NUT
€ 5.00
25
6474138A10
ref: 25
SPACER,REAR AXLE,RIGHT
€ 12.50
26
6477234200
ref: 26
SPACER,REAR AXLE,LEFT
€ 14.50
27
6531138A00
ref: 27
RIM,REAR WHEEL
€ 331.50
28
6532038A01
ref: 28
SPOKE SET,RR WHEEL
€ 164.00
29
6510038A00
ref: 29
BRIDGESTONE
TIRE
€ 159.00
30
6520038A00
ref: 30
TUBE ASSEMBLY,WHEEL,INNER
€ 32.50
31
6526138A00
ref: 31
PROTECTOR,WHL INR TUBE
€ 3.50
32-1
5541238A00
ref: 32-1
BALANCER,WHEEL
€ 6.50
32-2
5541338A00
ref: 32-2
BALANCER,WHEEL (30G)
€ 8.00
33
0944833006
ref: 33
MODEL G
SPRING
€ 11.00
