REAR COMBINATION LAMP (MODEL F,MODEL K/L/M E1,E24)

VS750GLEP 1987 (H) (E02)

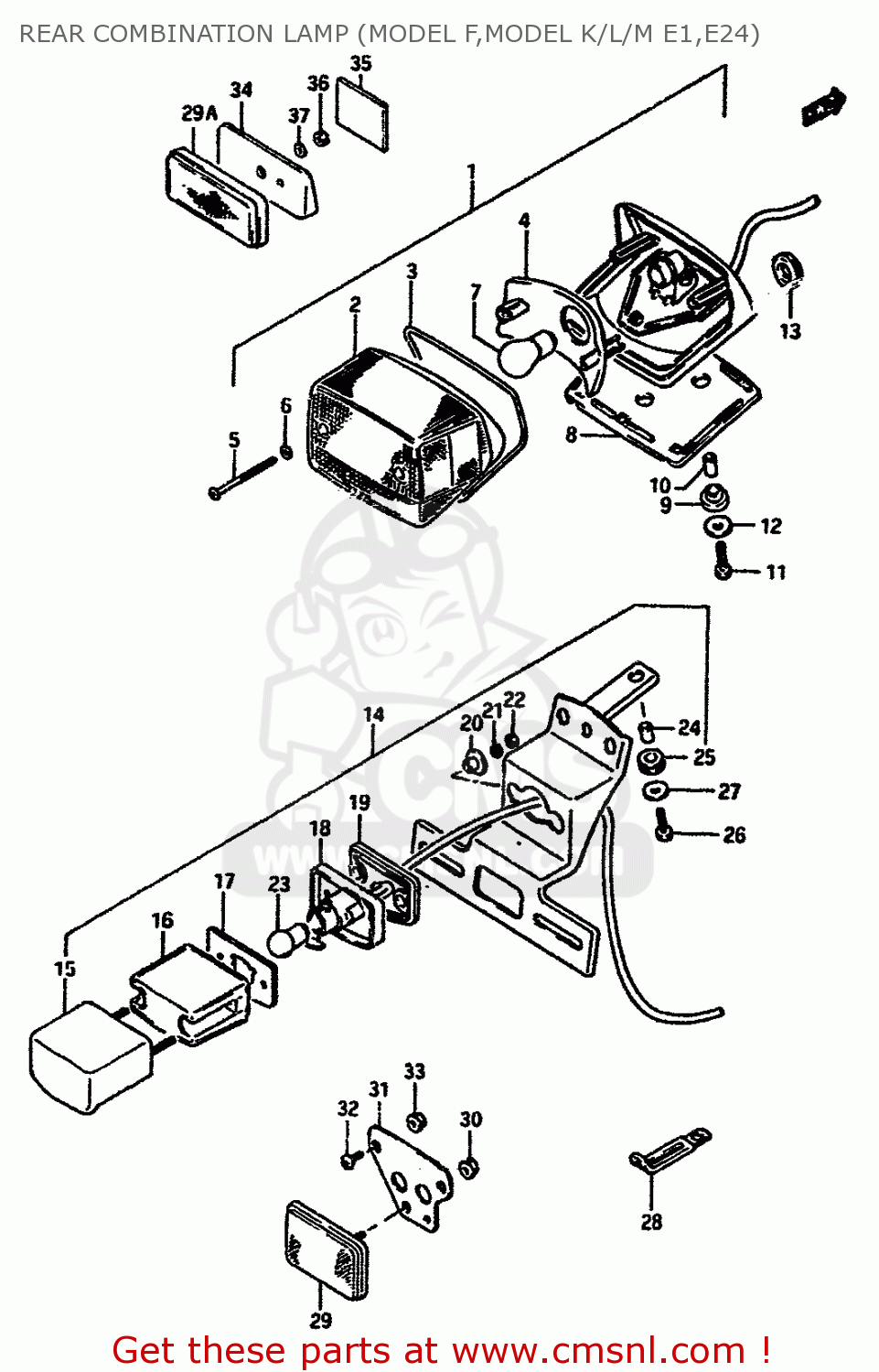

Rear combination lamp (model f,model k/l/m e1,e24) diagram VS750GLEP 1987 (H) (E02)

REAR COMBINATION LAMP (MODEL F,MODEL K/L/M E1,E24) VS750GLEP 1987 (H) (E02)
REAR COMBINATION LAMP (MODEL F,MODEL K/L/M E1,E24) VS750GLEP 1987 (H) (E02)
REAR COMBINATION LAMP (MODEL F,MODEL K/L/M E1,E24) VS750GLEP 1987 (H) (E02)
prices are in EUR
ref
part #
description
quantity
1-1
3571038A00
ref: 1-1
MODEL F
LAMP ASSY,REAR COMBINATION
€ 303.00
1-2
3571038A20
ref: 1-2
MODEL K/L/M E1,E24
LAMP ASSY,RR COMBINATION
3571038A20
€ 303.00
2-1
3571238A00
ref: 2-1
MODEL F
LENS
3571238A00
€ 40.50
2-2
3571238A20
ref: 2-2
MODEL K/L/M E1,E24
LENS
3571238A20
€ 81.00
3
3571338A00
ref: 3
GASKET (NAS)
3571338A00
€ 9.50
4
3571438A00
ref: 4
MODEL F
REFLECTOR
€ 16.50
5
3572344130
ref: 5
SCREW
3572344130
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7-1
0947112084
ref: 7-1
MODEL F
BULB(12V23/8W,TOKAI DENSO)
0947112084
€ 6.00
7-2
0947112083
ref: 7-2
MODEL K/L/M E1,E24
BULB(12V21/5W)
0947112083
€ 6.00
8
3576538A00
ref: 8
CUSHION
3576538A00
€ 13.50
9
3576426470
ref: 9
CUSHION
3576426470
€ 2.50
10
3576637190
ref: 10
SPACER
3576637190
€ 2.00
11
0110706256
ref: 11
BOLT
€ 2.50
12
0916006020
ref: 12
WASHER
0916006020
€ 2.00
13
0930809013
ref: 13
GROMMET
€ 2.00
14-1
3591038A32
ref: 14-1
-35910-38A33
LAMP ASSEMBLY,LICENSE
€ 149.00
14-2
3591038A33
ref: 14-2
LAMP ASSY,LICENSE
3591038A33
€ 149.00
15
3591738A30
ref: 15
COVER,LICENSE LAMP
€ 121.50
16
3591238A30
ref: 16
LENS
3591238A30
€ 11.50
17
3591338A30
ref: 17
GASKET,LICENSE LAMP (NAS)
3591338A30
€ 2.00
18
3591538A31
ref: 18
HOUSING,LICENSE LAMP
3591538A31
€ 39.50
19
3576138A30
ref: 19
FOR 35910-38A32
CUSHION
€ 8.50
20
3576638A30
ref: 20
SPACER
3576638A30
€ 2.00
21
0832121047
ref: 21
WASHER,LOCK 4M
0832121047
€ 2.00
22
0831011047
ref: 22
NUT
0831011047
€ 2.00
23-1
0947112037
ref: 23-1
MODEL F
BULB
€ 7.00
23-2
0947112141
ref: 23-2
MODEL K/L/M E1,E24
BULB(12V8W)
0947112141
€ 7.00
24
3576638A00
ref: 24
SPACER
3576638A00
€ 3.00
25
3576538A30
ref: 25
CUSHION
3576538A30
€ 4.00
26
0110706206
ref: 26
BOLT,M6X1X20
0110706206
€ 2.00
27
0916006057
ref: 27
WASHER
€ 2.00
28
0940406401
ref: 28
CLAMP L:35
0940406401
€ 2.50
29
3997001A00
ref: 29
MODEL F
REFLEX REFLECTOR,REAR
€ 0.00
29A
3597038B00
ref: 29A
MODEL K/L/M E1,E24
REFLEX REFLECTOR ASSY,RR
3597038B00
€ 27.00
30
0831616056
ref: 30
MODEL F
NUT
€ 2.50
31-1
3597438A00
ref: 31-1
-35974-38A01,MODEL F
BRACKET
€ 0.00
31-2
3597438A01
ref: 31-2
BRACKET
€ 0.00
32
0214205104
ref: 32
MODEL F
SCREW 5X10
0214205104
€ 2.50
33
0831616056
ref: 33
MODEL F
NUT
€ 2.50
34
3597738B00
ref: 34
MODEL K/L/M E1,E24
SPACER
€ 3.00
35
3692006400
ref: 35
MODEL K/L/M E1,E24
COVER,HARNESS
€ 3.00
36
0831022056
ref: 36
MODEL K/L/M E1,E24
NUT 5MM
0831022056
€ 2.50
37
0832221056
ref: 37
MODEL K/L/M E1,E24
WASHER
€ 2.50
