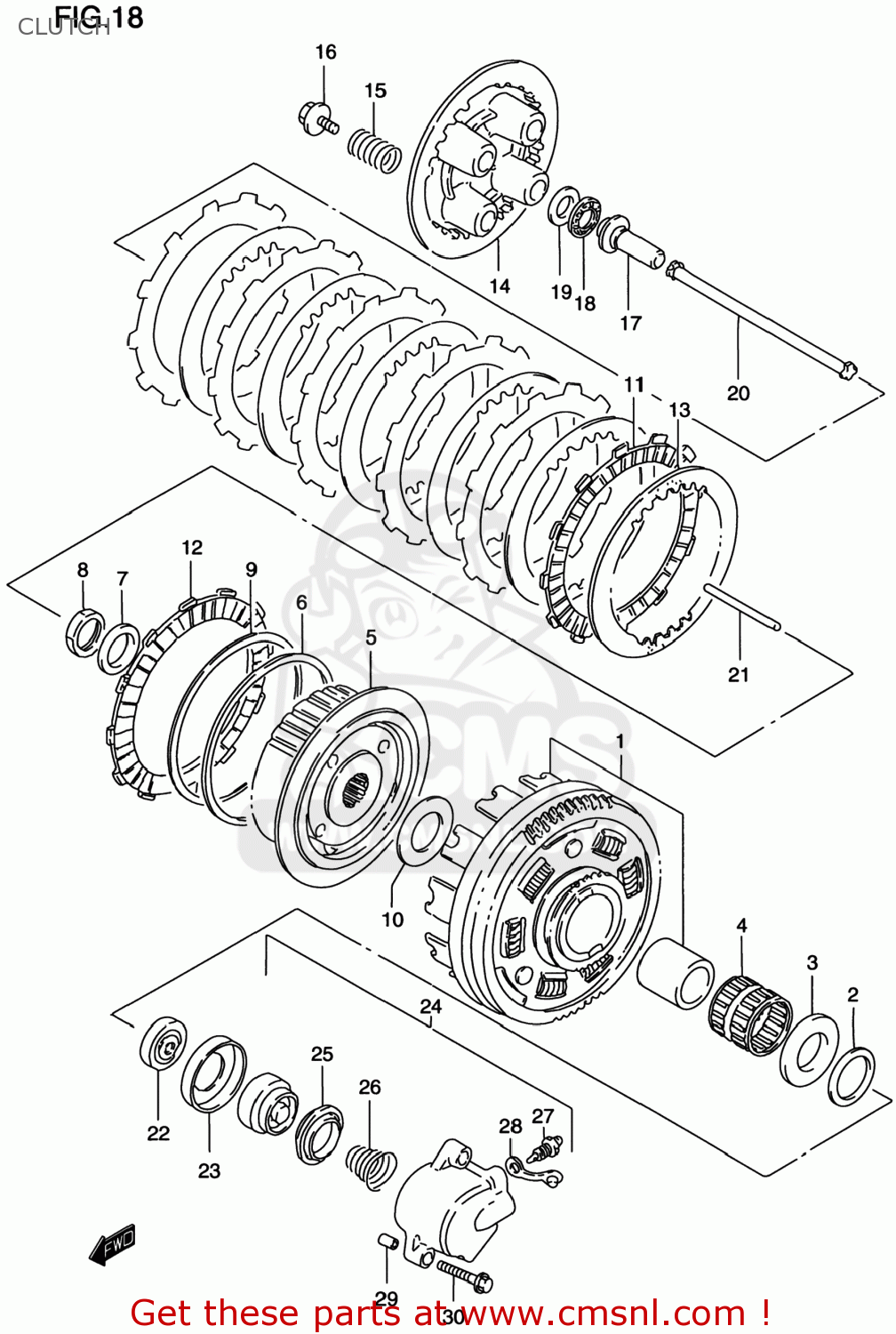

CLUTCH

ref

part #

description

quantity

1

2120038840
ref: 1

GEAR ASSY,PRIMARY(NT:71)

€ 321.00

2

0918025077
ref: 2

SPACER(25X38X6.5)

€ 7.50

3

0916025055
ref: 3

WASHER(25X50X2.5)

€ 9.50

4

0926335017
ref: 4

BEARING(35X40X35.8)

€ 36.50

5

2141038A00
ref: 5
21410-41F00

HUB COMP,CLUTCH SLEEVE

€ 95.50

6

2147137400
ref: 6

SEAT,WAVE WASHER(T:1.4)

€ 8.00

7

0916422007
ref: 7

WASHER

€ 5.00

8

0914022008
ref: 8

NUT

€ 4.50

9

0916400004
ref: 9

WASHER

€ 9.00

10

0916025055
ref: 10

WASHER(25X50X2.5)

€ 9.50

11

2144137400
ref: 11

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

12

2144237401
ref: 12

PLATE,CLUTCH DRIVE(T:3.5) (NAS)

€ 11.50

13

2145114A00
ref: 13

PLATE,CLUTCH DRIVEN(T:1.6) (NAS)

€ 6.50

14

2146227A00
ref: 14

DISC,CLUTCH PRESSURE

€ 37.00

15

0944020013
ref: 15

SPRING

€ 5.00

16

0911606167
ref: 16

BOLT(6X20)

€ 2.00

17

2312107A00
ref: 17
23121-31E00

PIECE,CLUTCH PUSH

€ 18.50

18

0926315003
ref: 18

BEARING(15X28X2)

€ 7.00

19

0916015045
ref: 19

WASHER(15.5X28X1)

€ 4.00

20

2311027A00
ref: 20

ROD,CLUTCH

€ 17.00

21

2311138A00
ref: 21

ROD,CLUTCH PUSH,L

€ 9.50

22

0928506017
ref: 22

SEAL,OIL(6X34X11)

€ 11.00

23

2311738A00
ref: 23

RETAINER,CL PUSH ROD OIL SEAL

€ 6.00

24

2316038A00
ref: 24

CYLINDER,CLUTCH RELEASE

€ 122.50

25

2316305A00
ref: 25

CUP,CLUTCH CYLINDER

€ 7.50

26

2316405A00
ref: 26

SPRING,CLUTCH CYLINDER

€ 3.50

27

5912101A00
ref: 27

BLEEDER

€ 8.50

28

5912201A00
ref: 28

CAP,BLEEDER

€ 4.50

29

0421109129
ref: 29

PIN

€ 2.00

30

0155006303
ref: 30
01550-0630A

BOLT

€ 2.50
