STEERING STEM (MODEL W/X)

VS800GL INTRUDER 1998 (W) USA (E03)

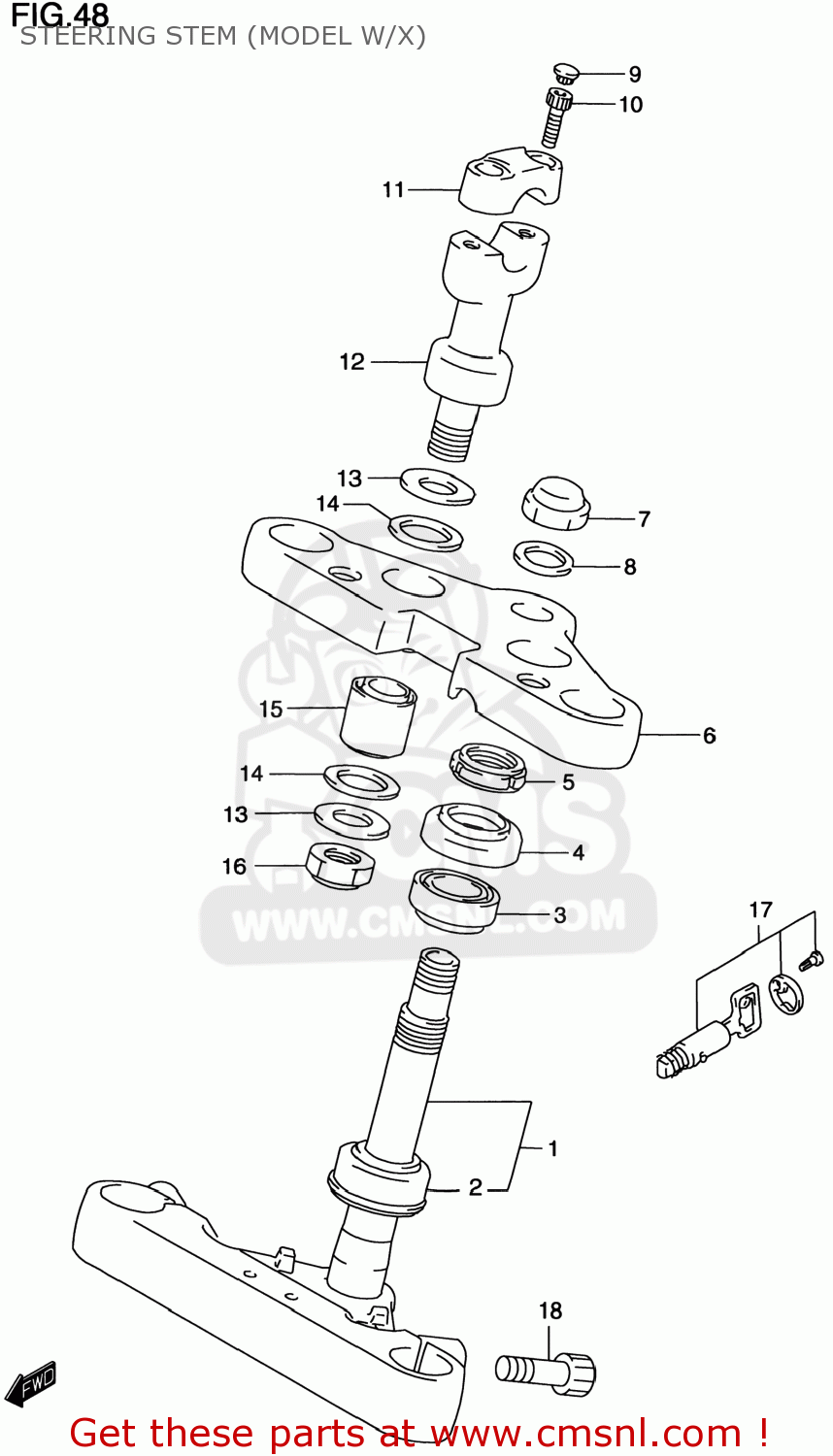

Steering stem (model w/x) diagram VS800GL INTRUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

5141039A21
ref: 1

STEM,STEERING

€ 594.00

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

0926525019
ref: 3

BEARING(25X47X15)

€ 48.50

5164349002
ref: 4

SEAL,STEERING UPR DUST

€ 7.50

5163128000
ref: 5

NUT,STEERING STEM(25X44X10)

€ 12.50

5131139A50
ref: 6

HEAD,STEERING STEM

€ 336.50

5135324B00
ref: 7

NUT,CAP

€ 21.50

5135624B01
ref: 8

WASHER(22.5X32X1.6)

€ 3.00

0925006009
ref: 9

CAP(OD:14.5)

€ 3.50

0713008303
ref: 10
07130-0830A

BOLT

€ 3.00

5621138A01
ref: 11

HOLDER,HANDLE UPR

€ 45.00

5622038B10
ref: 12

HOLDER,HANDLE

€ 184.50

5624438B00
ref: 13

WASHER

€ 7.50

5624538B00
ref: 14

SEAT,RUBBER

€ 5.00

5624038B00
ref: 15

CUSHION

€ 43.00

5624638B00
ref: 16

NUT

€ 42.00

5190038810
ref: 17

LOCK SET,STEERING

€ 168.50

0713010307
ref: 18

BOLT

€ 4.50
