CLUTCH MASTER CYLINDER

VS800GL INTRUDER 1998 (W) USA (E03)

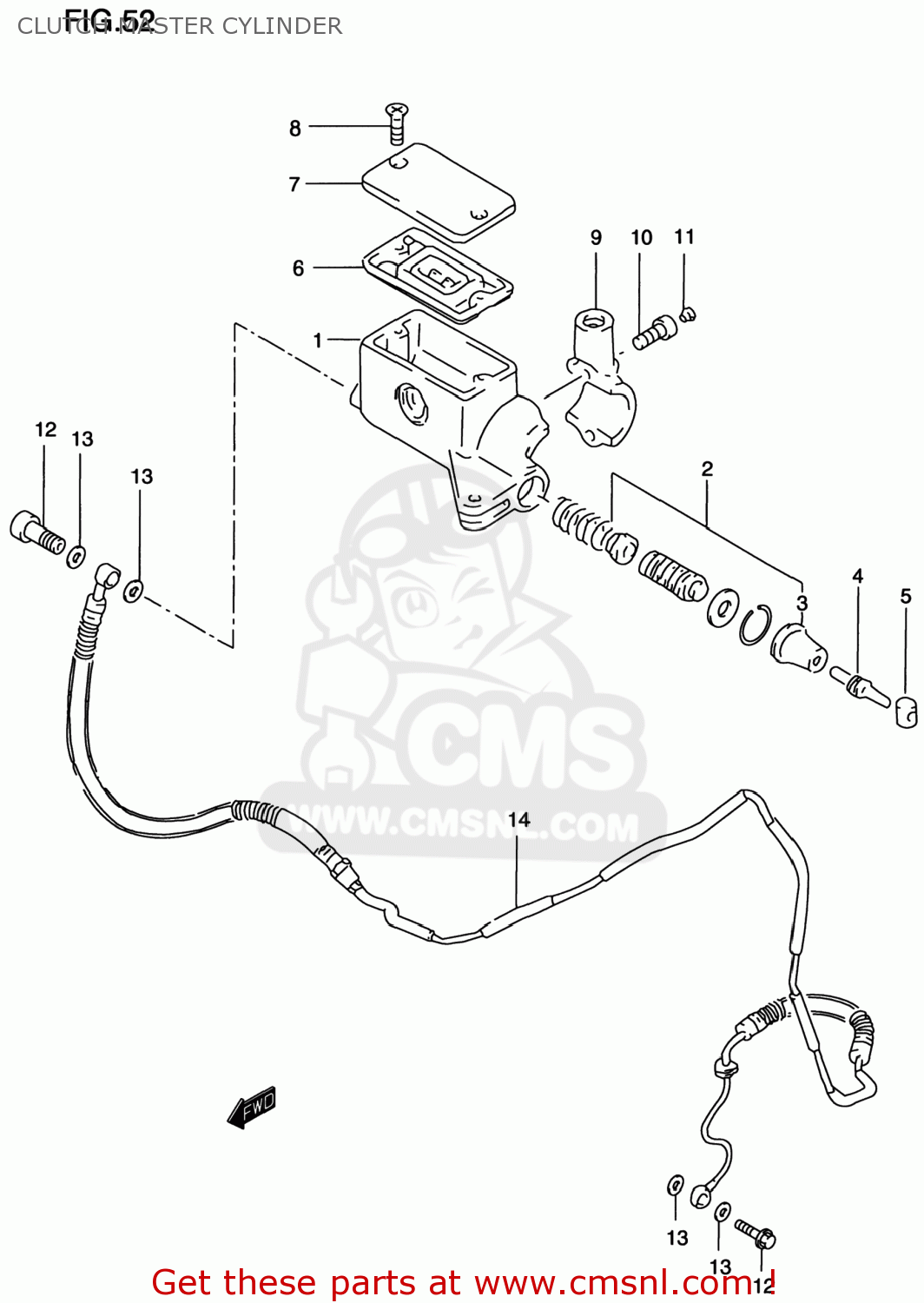

Clutch master cylinder diagram VS800GL INTRUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

5980039A20
ref: 1

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 421.00

5980008810
ref: 2

PISTON & CUP SET

€ 36.50

5966644300
ref: 3

BOOT

€ 6.00

5987138A00
ref: 4

PUSH ROD

€ 6.50

5989208A00
ref: 5

BUSH

€ 5.50

5966749460
ref: 6

5966749460

5966924B00
ref: 7

CAP

€ 59.00

0212204127
ref: 8

SCREW

€ 2.00

5967138A00
ref: 9

HOLDER

€ 37.50

0713006207
ref: 10

BOLT

€ 3.50

0925005008
ref: 11

CAP(OD:10)

€ 5.00

0936010039
ref: 12
09360-10061

BOLT UNION

€ 6.50

0916110009
ref: 13

WASHER(10X15X1.5)

€ 2.00

5990038A60
ref: 14

HOSE ASSY,CLUTCH

€ 312.50

CLUTCH MASTER CYLINDER
