MAGNETO

VS800GL INTRUDER 1998 (W) USA (E03)

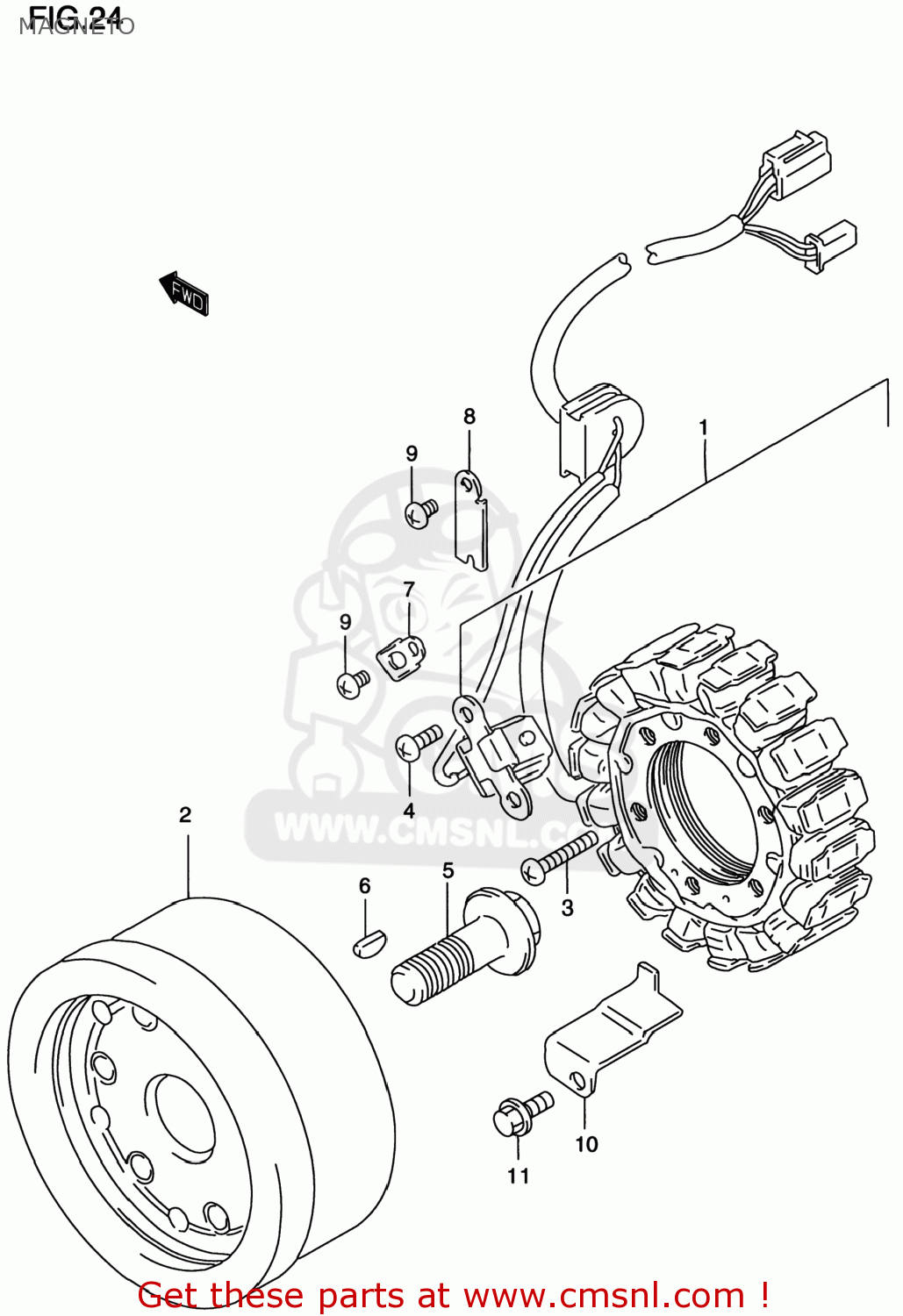

Magneto diagram VS800GL INTRUDER 1998 (W) USA (E03)

MAGNETO VS800GL INTRUDER 1998 (W) USA (E03)

MAGNETO VS800GL INTRUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210145C00
ref: 1

STARTER ASSY

€ 591.00

2

3210238A30
ref: 2

ROTOR ASSY

€ 390.50

3

0154706303
ref: 3
01547-0630B

BOLT,G/S SWITC

€ 3.00

4

0211205103
ref: 4
02112-0510A

SCREW

€ 2.00

5

0910314001
ref: 5

BOLT(14X43)

€ 7.00

6

0942004008
ref: 6

KEY

€ 3.50

7

3149745000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 1.50

8

3237138A10
ref: 8

CLAMP NO.1,MAGNETO READ WIRE

€ 1.50

9

0211205103
ref: 9
02112-0510A

SCREW

€ 2.00

10

3237145C00
ref: 10

CLAMP,MAGNETO LEAD WIRE

€ 3.00

11

0154706103
ref: 11
01547-0610B

BOLT

€ 3.00
