HANDLE LEVER

VS800GL INTRUDER 1998 (W) USA (E03)

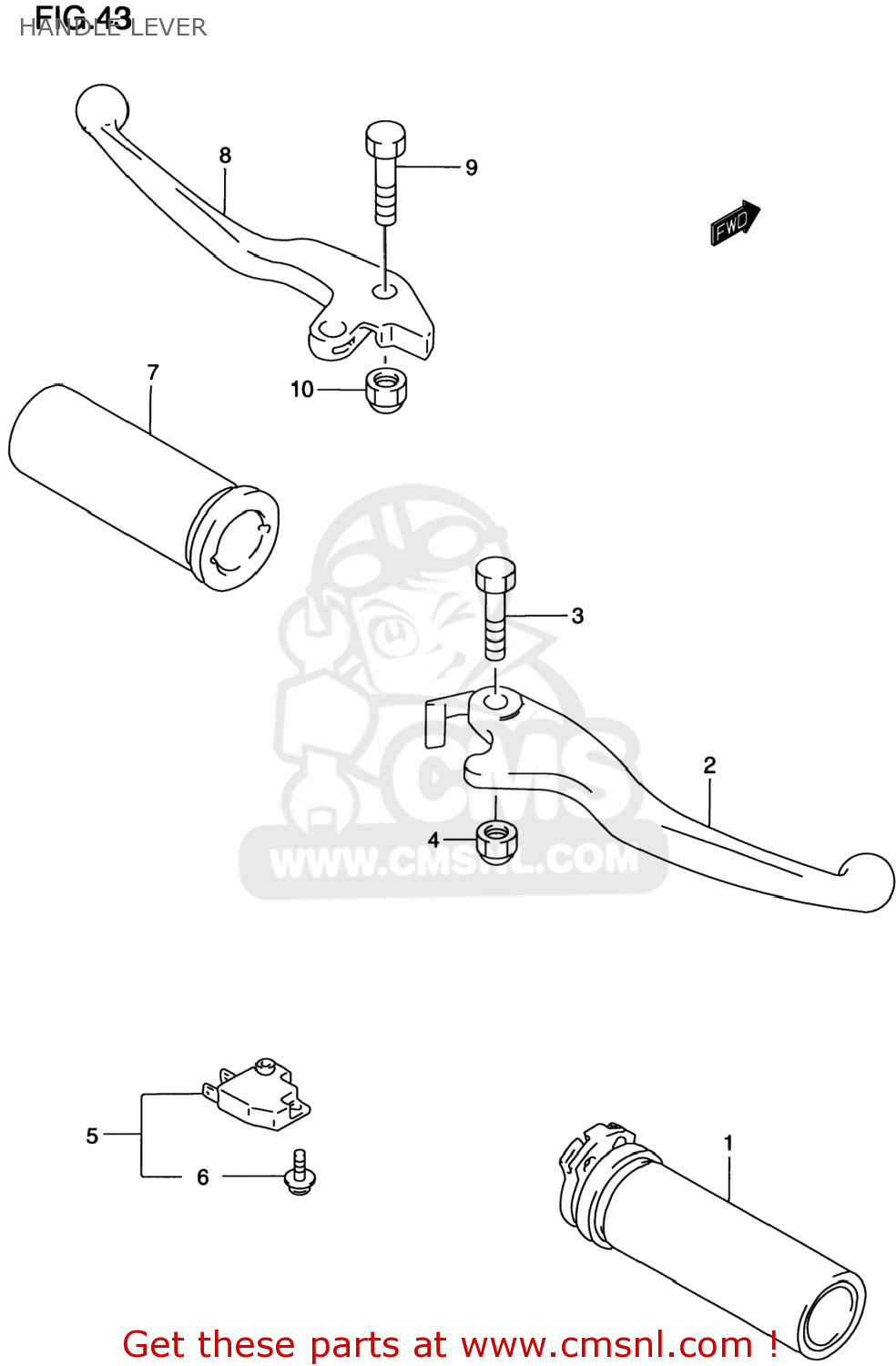

Handle lever diagram VS800GL INTRUDER 1998 (W) USA (E03)

HANDLE LEVER VS800GL INTRUDER 1998 (W) USA (E03)

HANDLE LEVER VS800GL INTRUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5711026D00
ref: 1

GRIP,THROTTLE

€ 45.00

2

5742024B01
ref: 2

LEVER,BRAKE

€ 53.50

3

5743138A10
ref: 3

BOLT,LEVER SET

€ 14.50

4

0831921068
ref: 4
08319-2106A

NUT 6MM

€ 2.00

5

5746017C00
ref: 5
57460-17C01

SWITCH ASSEMBLY,STOP

€ 32.50

6

5746517C00
ref: 6

SCREW

€ 1.50

7

5721026D00
ref: 7

GRIP,L

€ 21.50

8

5762138A02
ref: 8

LEVER,CLUTCH (SILVER)

€ 31.50

9

5743138A10
ref: 9

BOLT,LEVER SET

€ 14.50

10

0831921068
ref: 10
08319-2106A

NUT 6MM

€ 2.00
