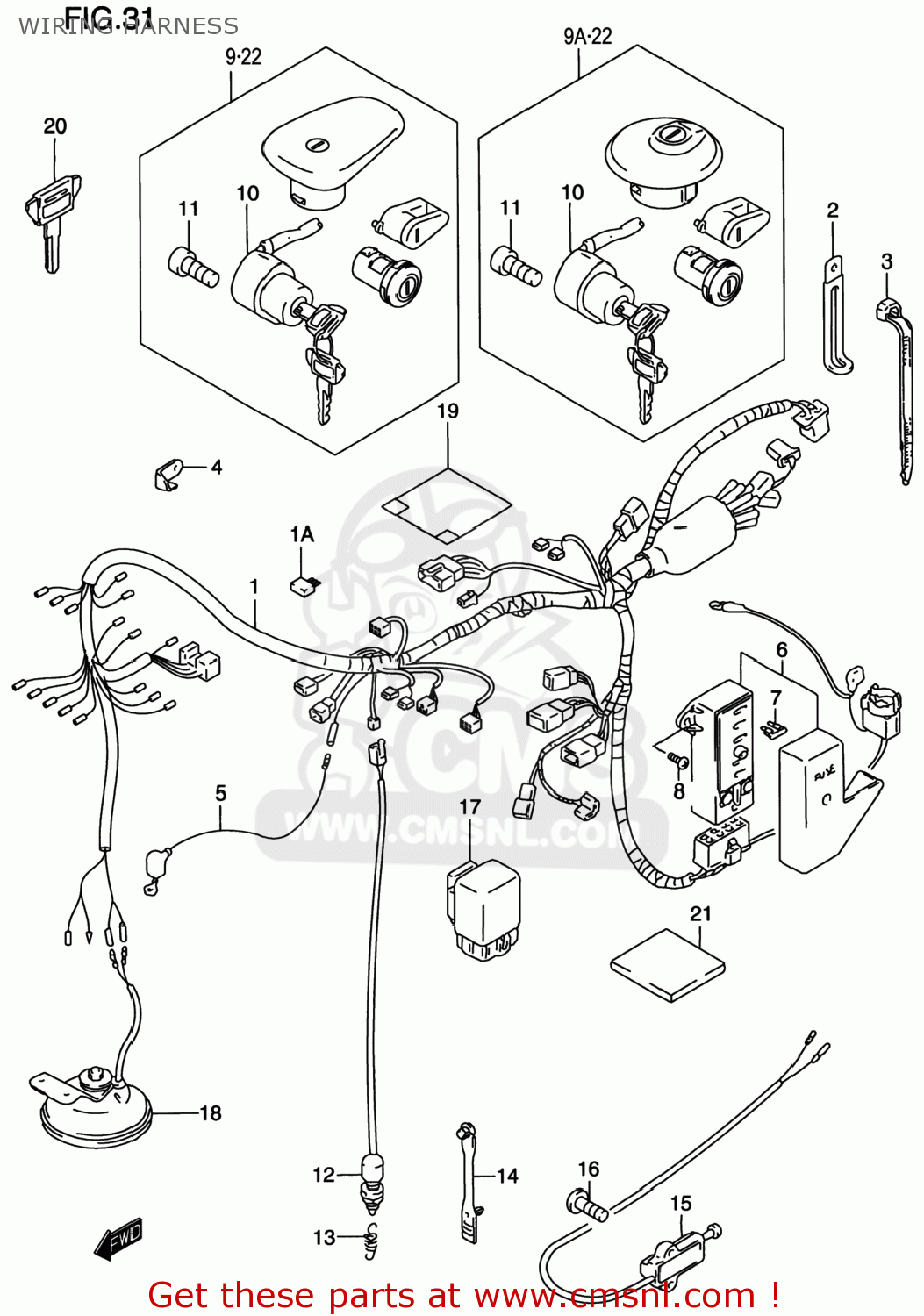

WIRING HARNESS

ref

part #

description

quantity

1

3661039AC0
ref: 1

HARNESS,WIRING

€ 0.00

1A

3661138A00
ref: 1A

DIODE(STANLEY DE8804)

€ 13.00

2-1

0940406429
ref: 2-1

CLAMP(L:45)

€ 2.50

2-2

0940406432
ref: 2-2

CLAMP(L:65)

€ 2.50

3-1

0940714403
ref: 3-1

CLAMP(L:125)

€ 2.50

3-2

0940718403
ref: 3-2
09407-18402

CLAMP L:165

€ 2.50

4

3668738A00
ref: 4

PLATE,COUPLER HOLDER

€ 2.00

5

3685117E00
ref: 5

WIRE,WATER TEMP GAUGE LEAD

€ 7.50

6

3674039A00
ref: 6

BOX ASSY,FUSE

€ 93.50

7-1

0948110101
ref: 7-1

FUSE(10A)

€ 2.50

7-2

0948125103
ref: 7-2

FUSE(25A)

€ 2.50

8

0214206163
ref: 8
02142-0616A

SCREW

€ 2.50

9

3710038835
ref: 9

LOCK SET

€ 182.00

9A

3700038840
ref: 9A

LOCK SET

€ 0.00

10

3711038A04
ref: 10

SWITCH ASSY,IGNITION

€ 74.50

11

0713005163
ref: 11
07130-0516A

BOLT

€ 2.00

12

3774031D00
ref: 12

SWITCH ASSY,STOP LAMP

€ 20.50

13

0944306046
ref: 13

SPRING

€ 3.50

14

0940705403
ref: 14

CLAMP,L:88

€ 1.50

15

3784039A22
ref: 15

SWITCH ASSY,SIDE STAND

€ 87.50

16

0211276203
ref: 16
02112-7620B

SCREW

€ 2.50

17

3874024X50
ref: 17

RELAY ASSY

€ 37.50

18

3850039A00
ref: 18

HORN ASSY

€ 126.00

19

3661815D20
ref: 19

COVER,WIRING HARNESS

€ 12.00

20-1

3714603A00
ref: 20-1

KEY,BLANK(TYPE:C)

€ 6.00

20-2

3714603A10
ref: 20-2

KEY,BLANK(TYPE:D)

€ 6.00

20-3

3714603A20
ref: 20-3

KEY,BLANK(TYPE:E)

€ 6.00

20-4

3714603A30
ref: 20-4

KEY,BLANK(TYPE:F)

€ 6.00

21

3692002200
ref: 21

COVER,HARNESS

€ 3.00

22-1

9507938A10
ref: 22-1
37100-38835

LOCK SET

€ 182.00

22-2

9507938A20
ref: 22-2
37000-38840

LOCK SET

€ 94.00

22-3

9507938A11
ref: 22-3
37100-38835

LOCK SET

€ 182.00

22-4

9507938A21
ref: 22-4
37000-38840

LOCK SET

€ 0.00

all assemblies
