FRONT MASTER CYLINDER

VS800GL INTRUDER 1998 (W) USA (E03)

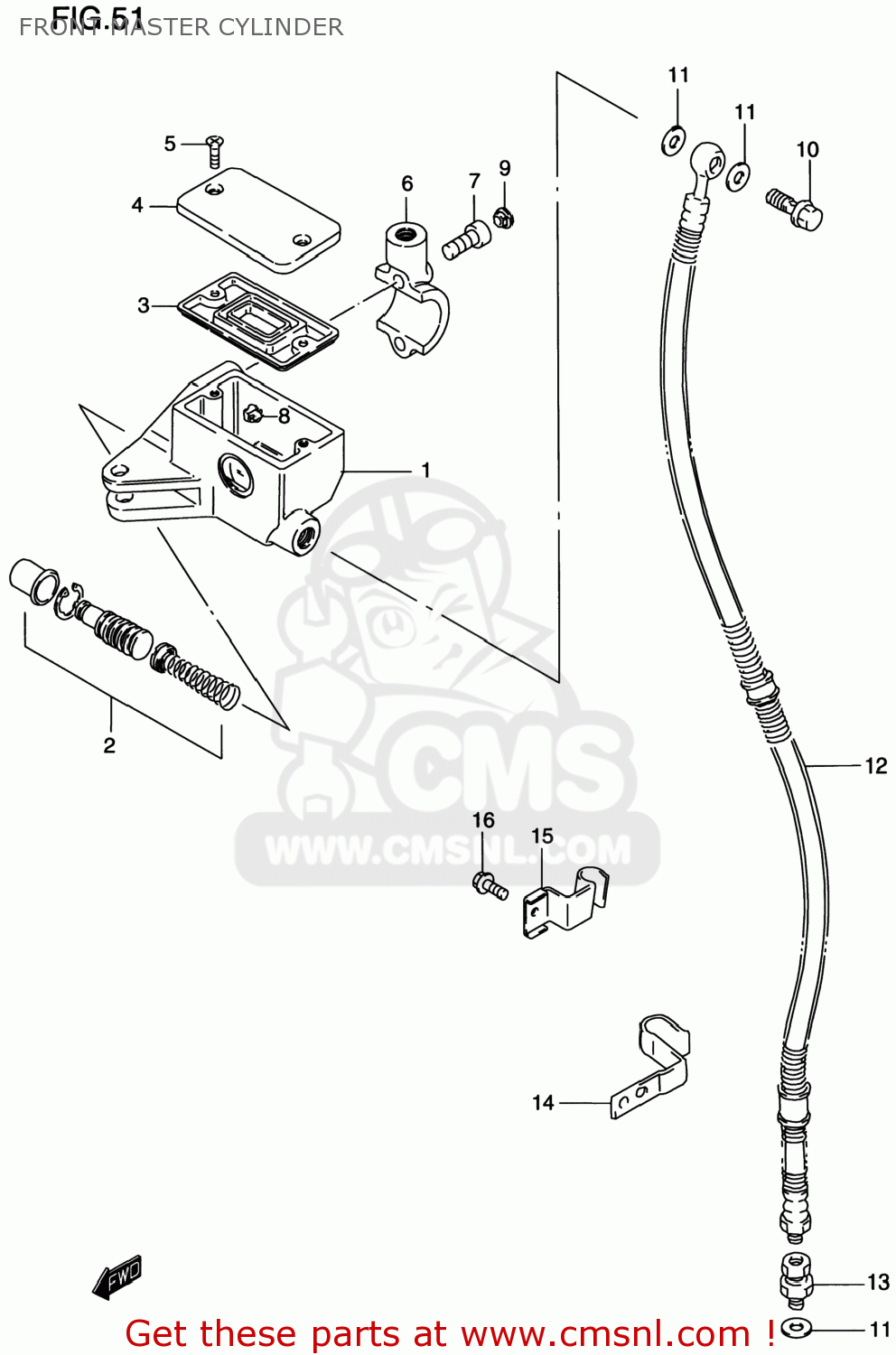

Front master cylinder diagram VS800GL INTRUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

5960024B50
ref: 1

CYLINDER ASSY,FR MASTER

€ 391.50

5960004810
ref: 2

PISTON/CUP SET

€ 37.50

5966749460
ref: 3

5966749460

5966924B00
ref: 4

CAP

€ 59.00

0212204127
ref: 5

SCREW

€ 2.00

5967138A00
ref: 6

HOLDER

€ 37.50

0713006207
ref: 7

BOLT

€ 3.50

5966448B00
ref: 8

PROTECTOR

€ 8.00

0925005008
ref: 9

CAP(OD:10)

€ 5.00

0936010039
ref: 10
09360-10061

BOLT UNION

€ 6.50

0916110009
ref: 11

WASHER(10X15X1.5)

€ 2.00

5948038A63
ref: 12

HOSE,FR BRAKE

€ 221.00

5929043500
ref: 13

ADAPTER,BRAKE HOSE

€ 34.50

5926838A22
ref: 14

GUIDE,BRAKE HOSE

€ 7.50

5926838A30
ref: 15

GUIDE,BRAKE HOSE

€ 10.50

0154706107
ref: 16

BOLT

€ 1.50
