FUEL TANK (MODEL X)
VS800GL INTRUDER 1998 (W) USA (E03)

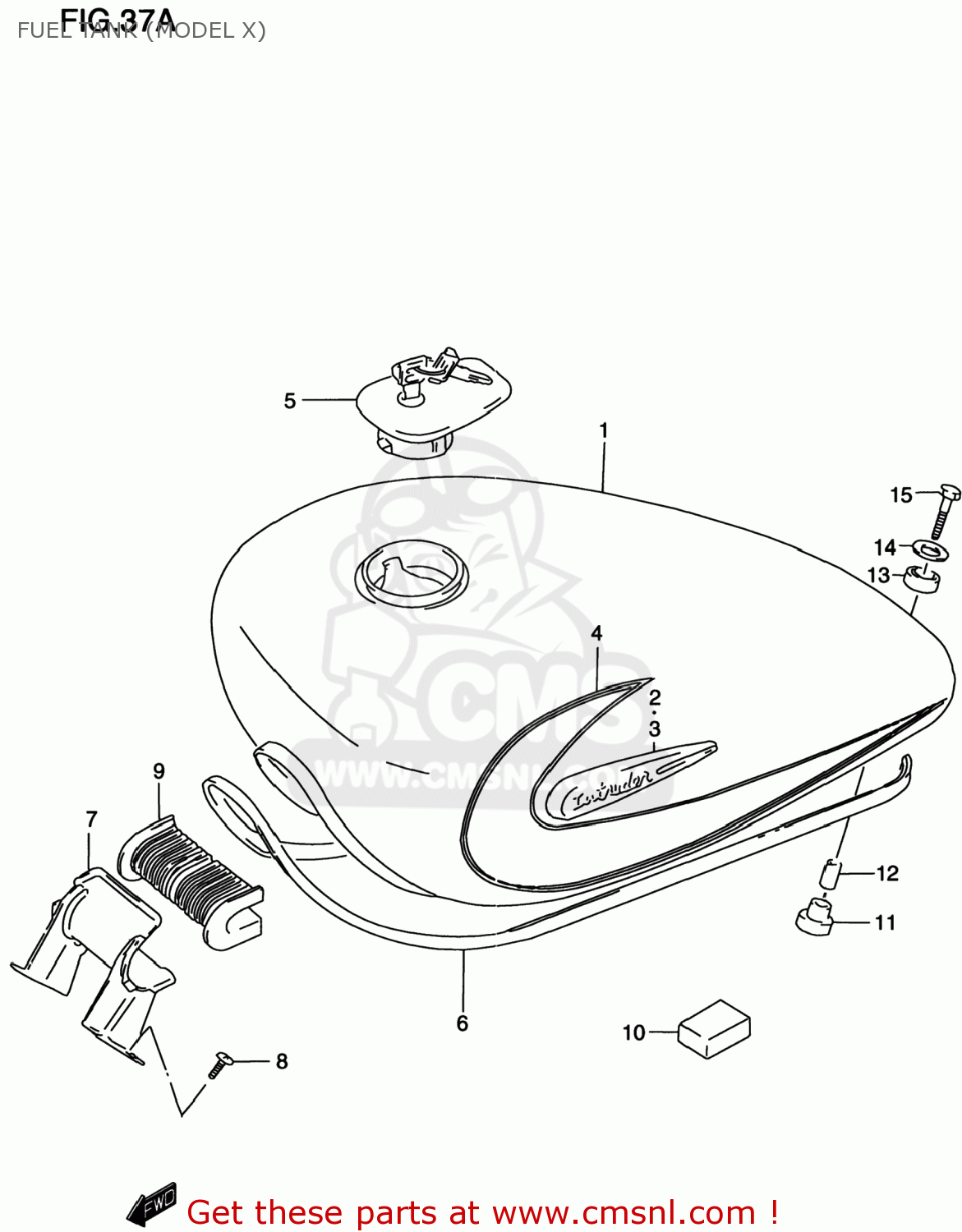

Fuel tank (model x) diagram VS800GL INTRUDER 1998 (W) USA (E03)
FUEL TANK (MODEL X) VS800GL INTRUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410038E60Y4M
ref: 1-1
44100-38E70-Y4M
TANK ASSEMBLY,FUEL
€ 708.00
1-2
4410038E60Y7H
ref: 1-2
44100-38E70-Y7H
TANK ASSEMBLY,FUEL
€ 620.50
1-3
4410038E80Y4M
ref: 1-3
44110-38A12-YD8
TANK ASSEMBLY,FUEL
€ 485.00
1-4
4410038E80Y7H
ref: 1-4
44100-38E81-Y7H
TANK ASSEMBLY,FUEL
€ 358.50
2
6811138E00
ref: 2
EMBLEM,FUEL TANK,R
€ 34.00
3
6812138E00
ref: 3
EMBLEM,FUEL TANK,L
€ 33.50
4-1
6811038E10M0Z
ref: 4-1
TAPE SET,FUEL TANK
€ 96.50
4-2
6811038E10M1A
ref: 4-2
TAPE SET,FUEL TANK
€ 115.50
5-1
4420038820
ref: 5-1
CAP SET,FUEL TANK
€ 107.50
5-2
4420038850
ref: 5-2
CAP SET,FUEL TANK
€ 135.50
5-3
4420038860
ref: 5-3
CAP SET,FUEL TANK
€ 135.50
5-4
4420038870
ref: 5-4
ENGRAVED GAS CAP SET,G
€ 136.50
6
6824104X5000B
ref: 6
MOLDING
€ 23.00
7
4425038A01019
ref: 7
BRACKET,FUEL TANK FR
€ 56.00
8
0211276163
ref: 8
02112-7616A
SCREW
€ 2.00
9
4451138A01
ref: 9
CUSHION,FUEL TANK FR
€ 10.50
10
4451238B00
ref: 10
56314-48B10
CUSHION
€ 6.00
11
0932010020
ref: 11
CUSHION
€ 4.00
12
0918006273
ref: 12
SPACER(6.5X9X21.5)
€ 5.50
13
0932014013
ref: 13
CUSHION
€ 3.00
14
0916006501
ref: 14
WASHER(6.5X24X1.6)
€ 2.00
15
0912806055
ref: 15
01500-0635A
SCREW
€ 2.50
