FRONT FENDER

VS800GL INTRUDER 1998 (W) USA (E03)

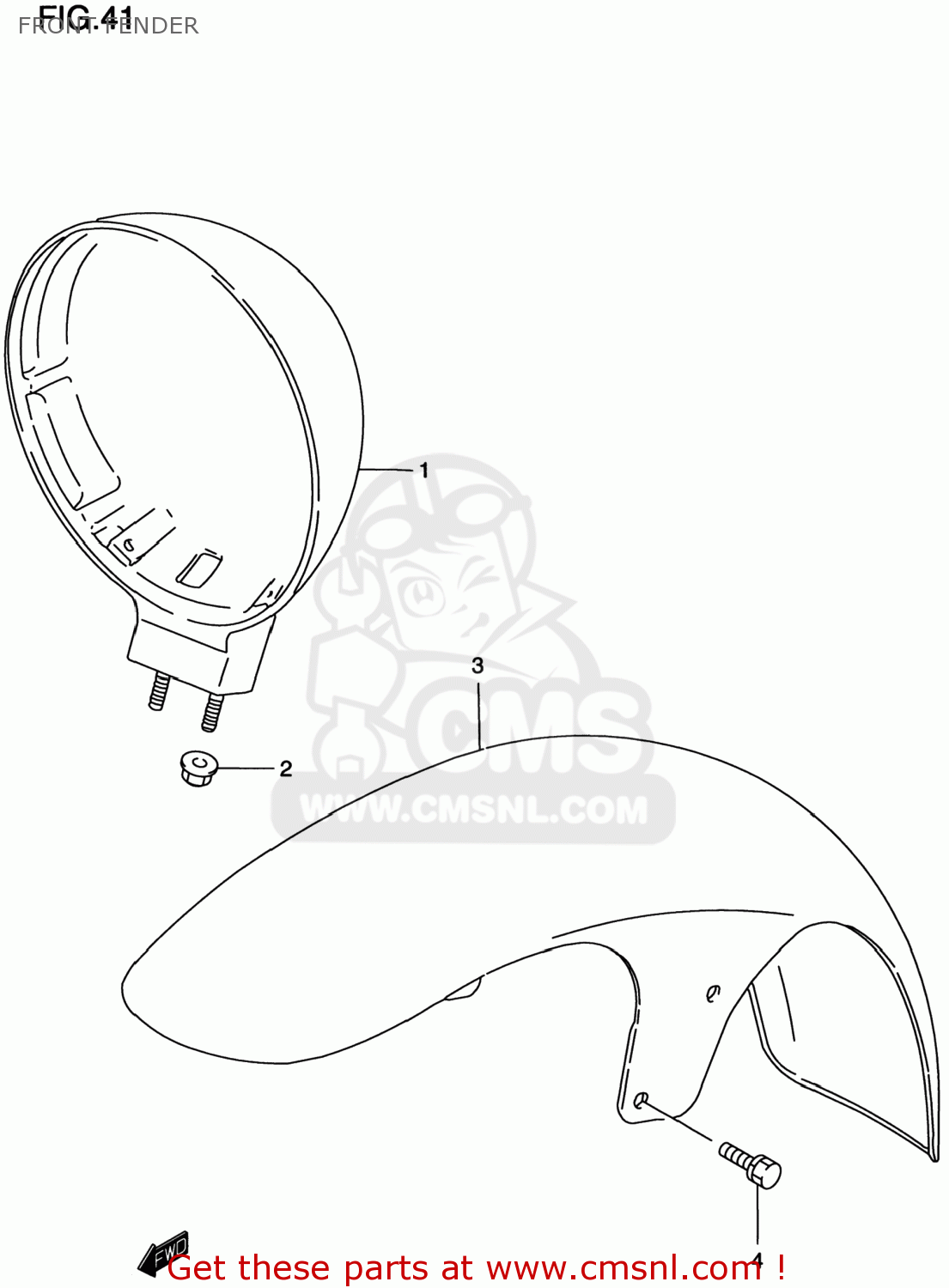

Front fender diagram VS800GL INTRUDER 1998 (W) USA (E03)

FRONT FENDER VS800GL INTRUDER 1998 (W) USA (E03)

FRONT FENDER VS800GL INTRUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5181038A02
ref: 1-1
51810-38A03

HOUSING,HEADLAMP

€ 111.00

1-2

5181038A03
ref: 1-2

HOUSING,HEADLAMP

€ 111.00

2

0831931063
ref: 2
08319-3106A

NUT

€ 2.50

3-1

5311038A1019A
ref: 3-1

FENDER,FR

€ 325.50

3-2

5311038A10Y98
ref: 3-2
53110-38A10-13L

FENDER COMP,FRONT

€ 325.50

3-3

5311038A10Y4M
ref: 3-3

FENDER COMP,FRONT

€ 132.50

3-4

5311038A10Y7H
ref: 3-4

FENDER,FR

€ 161.00

3-5

5311038A1033J
ref: 3-5

FENDER,FR

€ 430.00

3-6

5311038A1019A
ref: 3-6

FENDER,FR

€ 325.50

4

0157006163
ref: 4
01570-0616A

BOLT

€ 2.50
