TURN SIGNAL LAMP
VS800GL INTRUDER 1998 (W) USA (E03)

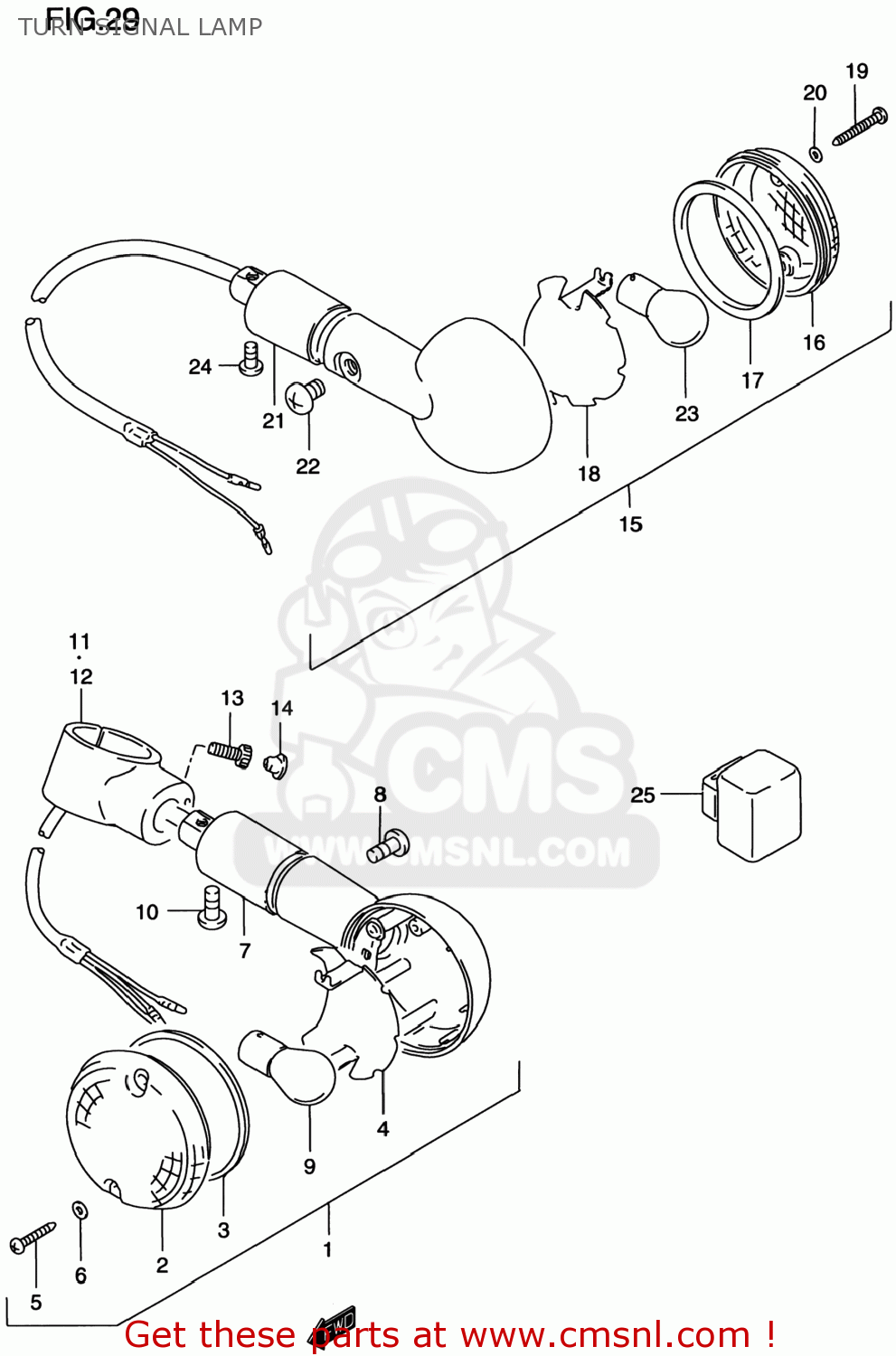

Turn signal lamp diagram VS800GL INTRUDER 1998 (W) USA (E03)
TURN SIGNAL LAMP VS800GL INTRUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560138A32999
ref: 1
LAMP ASSY,FR TURN SIGNAL
€ 135.50
2
3561238A30
ref: 2
LENS
€ 16.50
3
3561338A00
ref: 3
GASKET (NAS)
€ 11.50
4
3562439A00
ref: 4
REFRECTOR
€ 0.00
5
0321104253
ref: 5
03211-0425B
SCREW
€ 2.00
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
3561938A01
ref: 7
STAY,TURNSIGNAL LAMP
€ 35.50
8
3562338A01
ref: 8
SCREW
€ 5.50
9
0947112128
ref: 9
BULB(12V21/5W,BF141-49642A)
€ 6.00
10
0214206107
ref: 10
SCREW
€ 2.00
11
3567139A00
ref: 11
BRACKET,FR TURNSIGNAL LAMP,R
€ 51.50
12
3568139A00
ref: 12
BRACKET,FR TURNSIGNAL LAMP,L
€ 51.50
13
0713006167
ref: 13
BOLT
€ 3.00
14
0925005008
ref: 14
CAP(OD:10)
€ 5.00
15
3560338A02999
ref: 15
LAMP ASSY,FR TURN SIGNAL
€ 105.00
16
3561238A01
ref: 16
LENS
€ 10.50
17
3561338A00
ref: 17
GASKET (NAS)
€ 11.50
18
3562439A00
ref: 18
REFRECTOR
€ 0.00
19
0321104253
ref: 19
03211-0425B
SCREW
€ 2.00
20
3562743010
ref: 20
GASKET (NAS)
€ 2.00
21
3561938A01
ref: 21
STAY,TURNSIGNAL LAMP
€ 35.50
22
3562338A01
ref: 22
SCREW
€ 5.50
23
0947112045
ref: 23
BULB(12V21W)
€ 5.00
24
0214206107
ref: 24
SCREW
€ 2.00
25
3861026E00
ref: 25
RELAY ASSY
€ 47.00
