CARBURETOR (REAR)
VS800GL INTRUDER 2003 (K3) USA (E03)

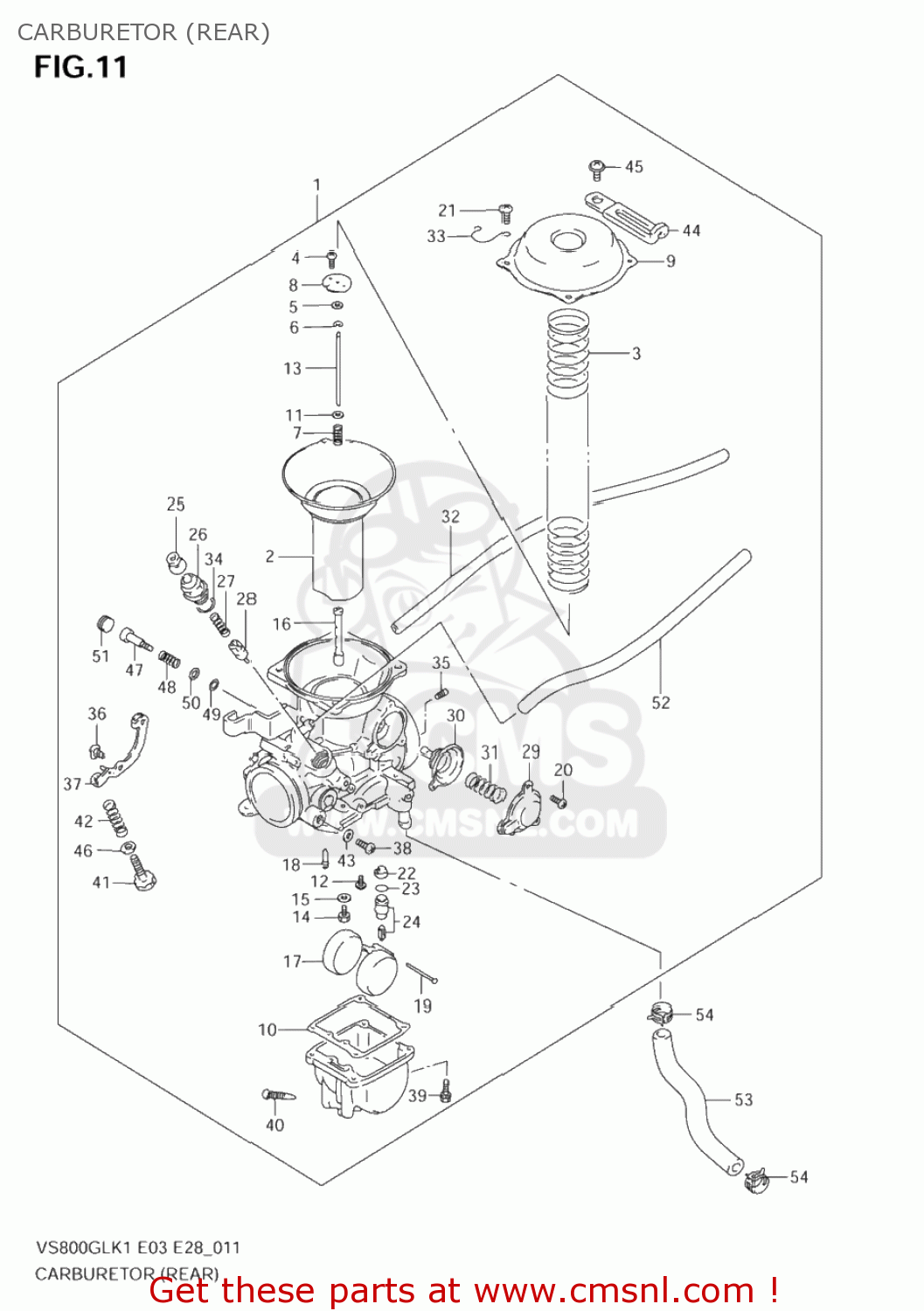

Carburetor (rear) diagram VS800GL INTRUDER 2003 (K3) USA (E03)
CARBURETOR (REAR) VS800GL INTRUDER 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1322038E10
ref: 1-1
CARBURETOR ASSY,RR
€ 1,089.50
1-2
1322038E50
ref: 1-2
13220-38E52
CARBURETOR ASSEMBLY,REAR
€ 550.00
1-3
1322038E51
ref: 1-3
13220-38E52
CARBURETOR ASSY, REAR
€ 550.00
2
1350038A10
ref: 2
DIAPHRAGM,CARBURETOR
€ 222.50
3
1350338B00
ref: 3
SPRING,DIAPHRAGM
€ 12.00
4
0211233073
ref: 4
SCREW
€ 0.00
5
1338747010
ref: 5
RING
€ 7.50
6
1339410010
ref: 6
CLIP
€ 4.50
7
1338844030
ref: 7
SPRING
€ 6.00
8
1338937400
ref: 8
PLATE
€ 5.50
9
1350245CE0
ref: 9
COVER
€ 37.50
10
1325138A10
ref: 10
GASKET,FLOAT CHAMBER (NAS)
€ 8.00
11
1338244030
ref: 11
WASHER
€ 3.50
12
0949245016
ref: 12
JET,PILOT(45)
€ 12.00
13
1338338B00
ref: 13
NEEDLE,JET
€ 17.50
14
0949126012
ref: 14
JET,MAIN(132.5)
€ 11.50
15
1338203110
ref: 15
WASHER
€ 2.50
16
0949400893
ref: 16
JET,NEEDLE(P-7M)
€ 0.00
17
1325223010
ref: 17
FLOAT
€ 19.00
18
1360205A10
ref: 18
SCREW
€ 4.00
19
1325492311
ref: 19
PIN,FLOAT
€ 2.00
20
0211204107
ref: 20
SCREW
€ 2.00
21
0211204083
ref: 21
02112-0408A
SCREW
€ 2.00
22
1337619F00
ref: 22
FILTER
€ 6.50
23
1337435C00
ref: 23
O RING,NEEDLE VALVE SEAT
€ 6.00
24
1337039A00
ref: 24
VALVE ASSY,NEEDLE
€ 67.50
25
1368104010
ref: 25
CAP
€ 3.00
26
1341843410
ref: 26
HOLDER,GUIDE
€ 6.50
27
1341722010
ref: 27
SPRING
€ 3.00
28
1341101400
ref: 28
PLUNGER,STARTER
€ 11.50
29
1348438A10
ref: 29
COVER
€ 16.00
30
1348005A10
ref: 30
DIAPHRAGM ASSY
€ 54.50
31
1348145C10
ref: 31
SPRING
€ 5.50
32
0935250823600
ref: 32
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
33
1369202500
ref: 33
CLIP
€ 7.00
34
1327847090
ref: 34
O RING
€ 2.00
35
0949265005
ref: 35
JET,AIR(65)
€ 7.50
36
1360205A30
ref: 36
SCREW
€ 4.50
37
1355445C20
ref: 37
LEVER ASSY
€ 38.50
38
0211205063
ref: 38
02112-0506B
SCREW
€ 2.00
39
1360104148
ref: 39
SCREW
€ 2.50
40
1324713A00
ref: 40
13247-02340
SCREW,DRAIN
€ 5.50
41
1326739E50
ref: 41
ADJUSTER
€ 13.00
42
1327193011
ref: 42
SPRING
€ 4.50
43
1352346110
ref: 43
GASKET,DRAIN PLUG (NAS)
€ 3.00
44
0940406431
ref: 44
09404-06432
CLAMP(L:65)
€ 2.50
45
0214204083
ref: 45
02142-0408B
SCREW
€ 1.50
46
1327737100
ref: 46
WASHER
€ 2.00
47-1
1327947070
ref: 47-1
SCREW,PILOT
€ 11.50
47-2
1327947070
ref: 47-2
SCREW,PILOT
€ 11.50
48
1326847070
ref: 48
SPRING
€ 5.00
49
1329529900
ref: 49
O RING,PILOT AIR SCREW
€ 4.00
50
1329129900
ref: 50
WASHER
€ 2.00
51
1328105A00
ref: 51
PLUG
€ 3.50
52
1368338B00
ref: 52
13683-38B01
(CA) HOSE SET,FUEL
€ 19.50
53
1368338E00
ref: 53
13683-38E01
HOSE,FUEL PUMP & CARBURETOR
€ 21.50
54
0940111407
ref: 54
09401-11415
CLIP
€ 2.50
