STARTER CLUTCH
VS800GL INTRUDER 2003 (K3) USA (E03)

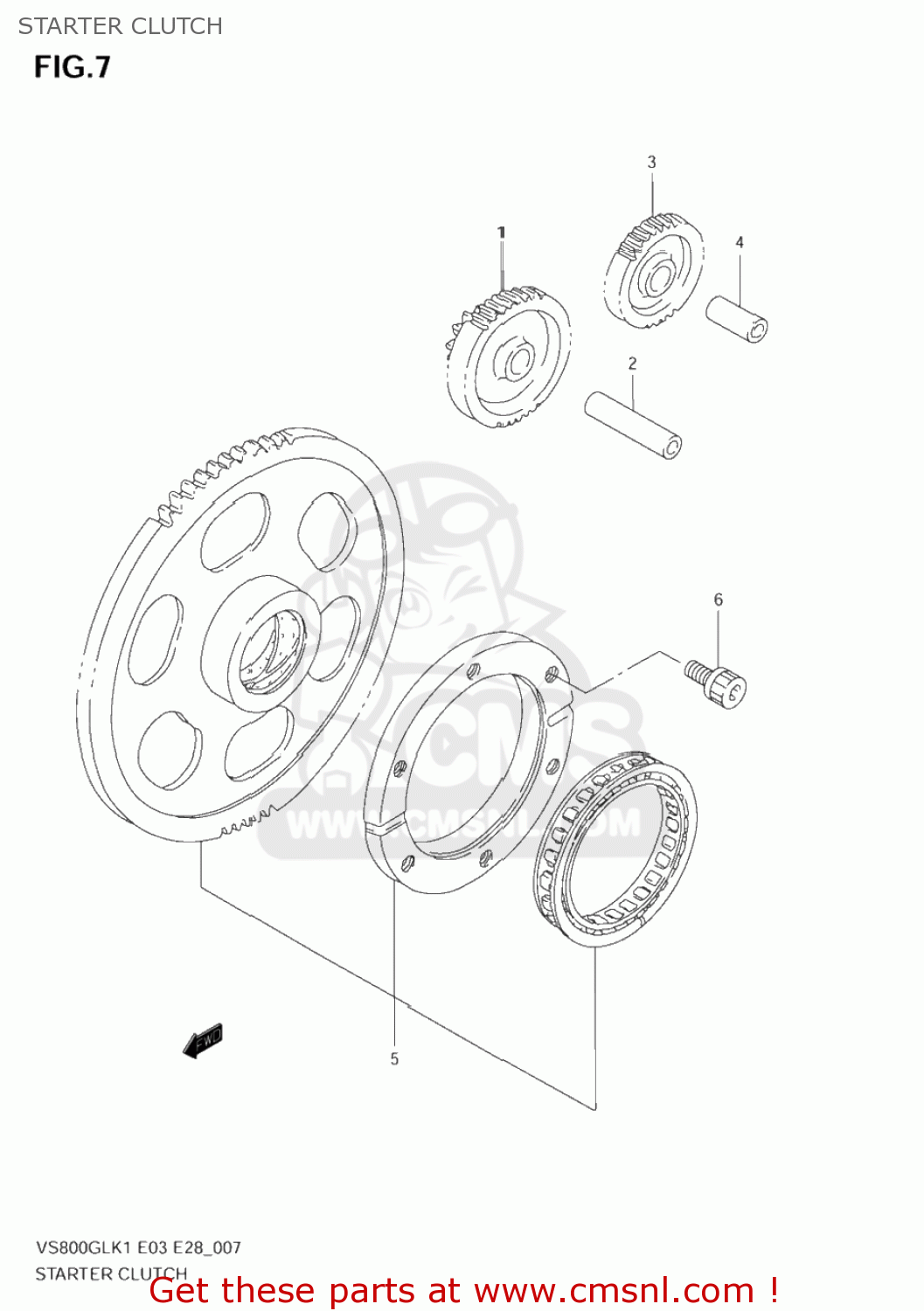

Starter clutch diagram VS800GL INTRUDER 2003 (K3) USA (E03)
STARTER CLUTCH VS800GL INTRUDER 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1261138A01
ref: 1
GEAR,STARTER IDLE NO.1
€ 57.50
2
0920210008
ref: 2
PIN,10X43
€ 9.00
3
1261138A11
ref: 3
GEAR,STARTER IDLE NO.2
€ 39.50
4
0920210006
ref: 4
PIN
€ 6.50
5
1260038831
ref: 5
12600-38832
CLUTCH SET,STARTER
€ 307.00
6
0713008163
ref: 6
07130-0816A
BOLT
€ 3.00
