FRAME COVER (MODEL K5)

VS800GL INTRUDER 2003 (K3) USA (E03)

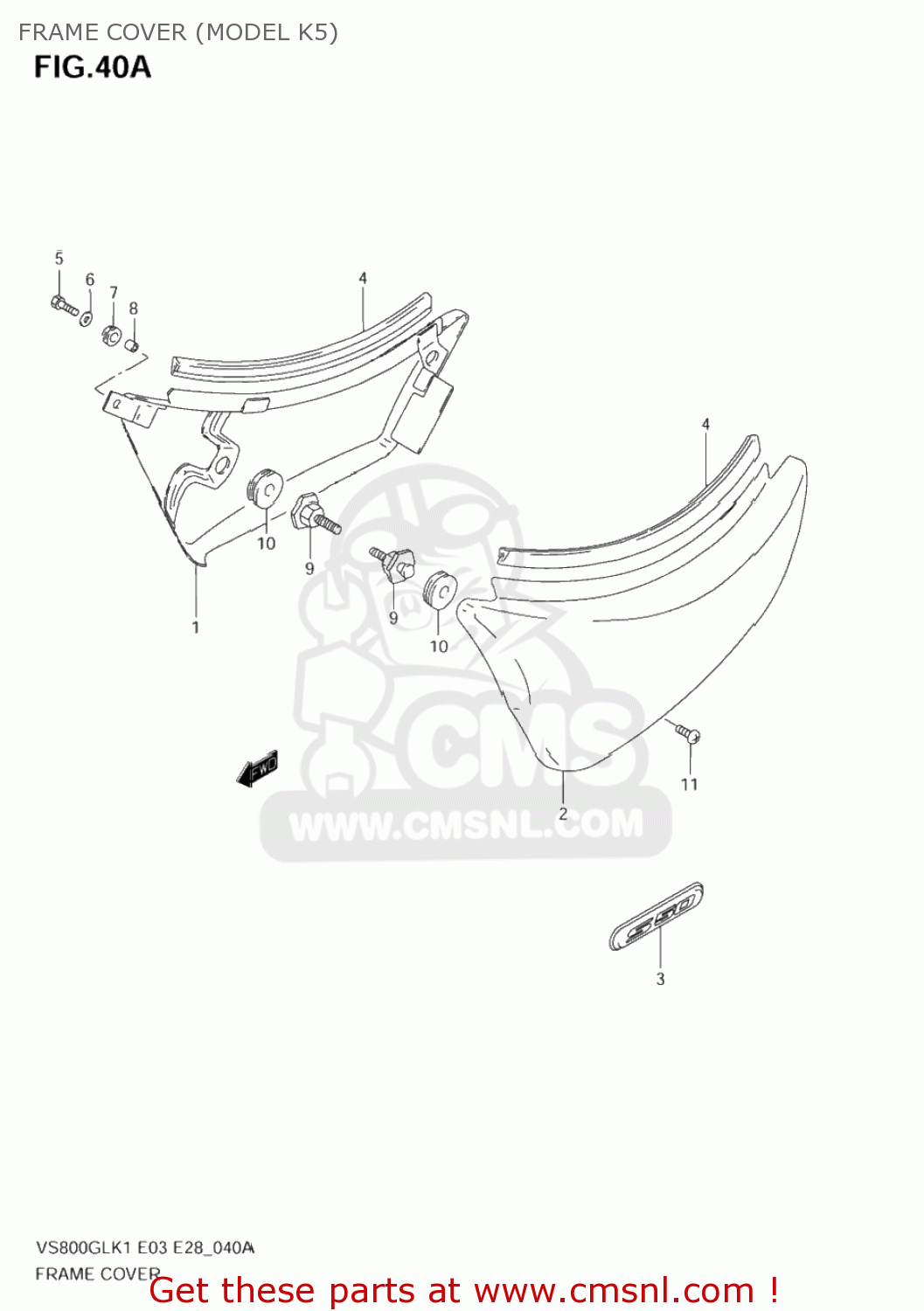

Frame cover (model k5) diagram VS800GL INTRUDER 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4710039AA0YAY
ref: 1-1

COVER ASSY,FRAME,R(BLACK)

€ 131.50

1-2

4710039AA0YU8
ref: 1-2

COVER ASSY,FRAME,R(GRAY)

€ 0.00

2-1

4720039AA0YAY
ref: 2-1

COVER ASSY,FRAME,L(BLACK)

€ 131.50

2-2

4720039AA0YU8
ref: 2-2

COVER ASSY,FRAME,L(GRAY)

€ 0.00

6813139AA0
ref: 3

EMBLEM,S50

€ 17.50

6824104X50300
ref: 4

MOLDING

€ 6.00

0155006167
ref: 5

BOLT

€ 1.50

0916006084
ref: 6

WASHER(6.5X18X1.6)

€ 2.00

0932006017
ref: 7

CUSHION

€ 3.00

0918006246
ref: 8

SPACER(6.1X8X5.2)

€ 2.50

4725038A01
ref: 9

BOSS,FRAME COVER

€ 6.50

0932008013
ref: 10

CUSHION

€ 4.00

0214206103
ref: 11
02142-0610A

SCREW 6X10

€ 2.00
