HEADLAMP
VS800GL INTRUDER 2003 (K3) USA (E03)

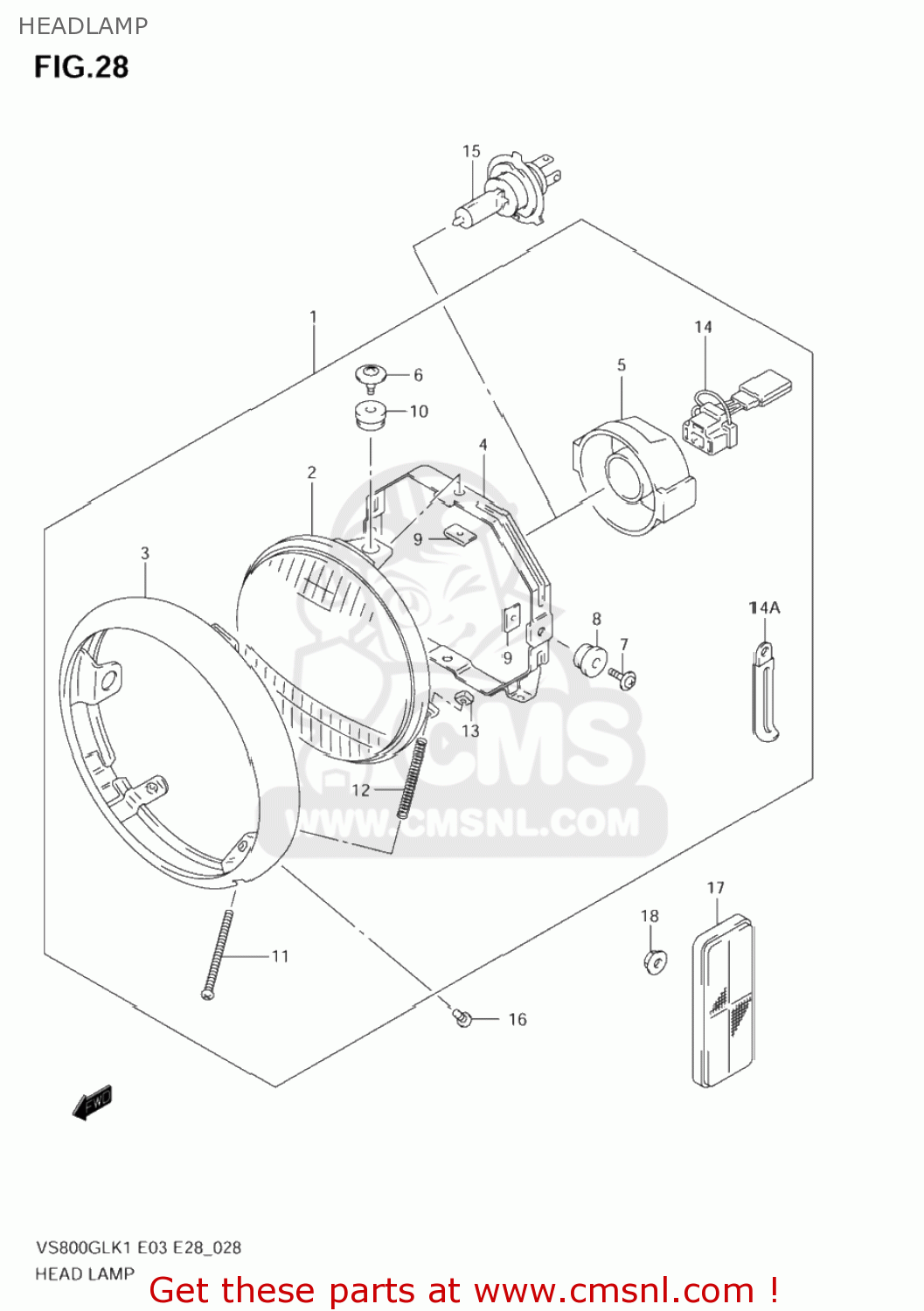

Headlamp diagram VS800GL INTRUDER 2003 (K3) USA (E03)
HEADLAMP VS800GL INTRUDER 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510038A60999
ref: 1-1
35100-38A61-999
HEADLAMP ASSEMBLY
€ 236.00
1-2
3510038A61999
ref: 1-2
HEADLAMP ASSY
€ 236.00
2
3512138A60
ref: 2
UNIT,LAMP
€ 114.00
3
3511138A60
ref: 3
RIM
€ 24.00
4
3513038A00
ref: 4
RING,MOUNTING
€ 15.00
5
3517313E10
ref: 5
COVER
€ 12.50
6
3513638A60
ref: 6
SCREW
€ 3.50
7
3513638A00
ref: 7
SCREW,MOUNTING
€ 2.50
8
3513945230
ref: 8
CUSHION
€ 1.50
9
3515538A60
ref: 9
NUT
€ 3.50
10
3513938A60
ref: 10
CUSHION
€ 2.50
11
3515138A00
ref: 11
SCREW,ADJUSTING(4X50)
€ 2.50
12
3515431300
ref: 12
SPRING
€ 2.00
13
3515245600
ref: 13
NUT,HEADLAMP ADJUST
€ 3.00
14
3685338A00
ref: 14
SOCKET
€ 10.00
14A
0940406432
ref: 14A
CLAMP(L:65)
€ 2.50
15
0947112060
ref: 15
BULB(12V60/55W,H4)
€ 8.00
16
0214205127
ref: 16
SCREW
€ 1.50
17
3595043431
ref: 17
REFLEX REFLECTOR,FR SIDE
€ 12.00
18
0831000053
ref: 18
08310-0005A
NUT
€ 2.50
