TURN SIGNAL LAMP (MODEL K1/K2/K3)

VS800GL INTRUDER 2003 (K3) USA (E03)

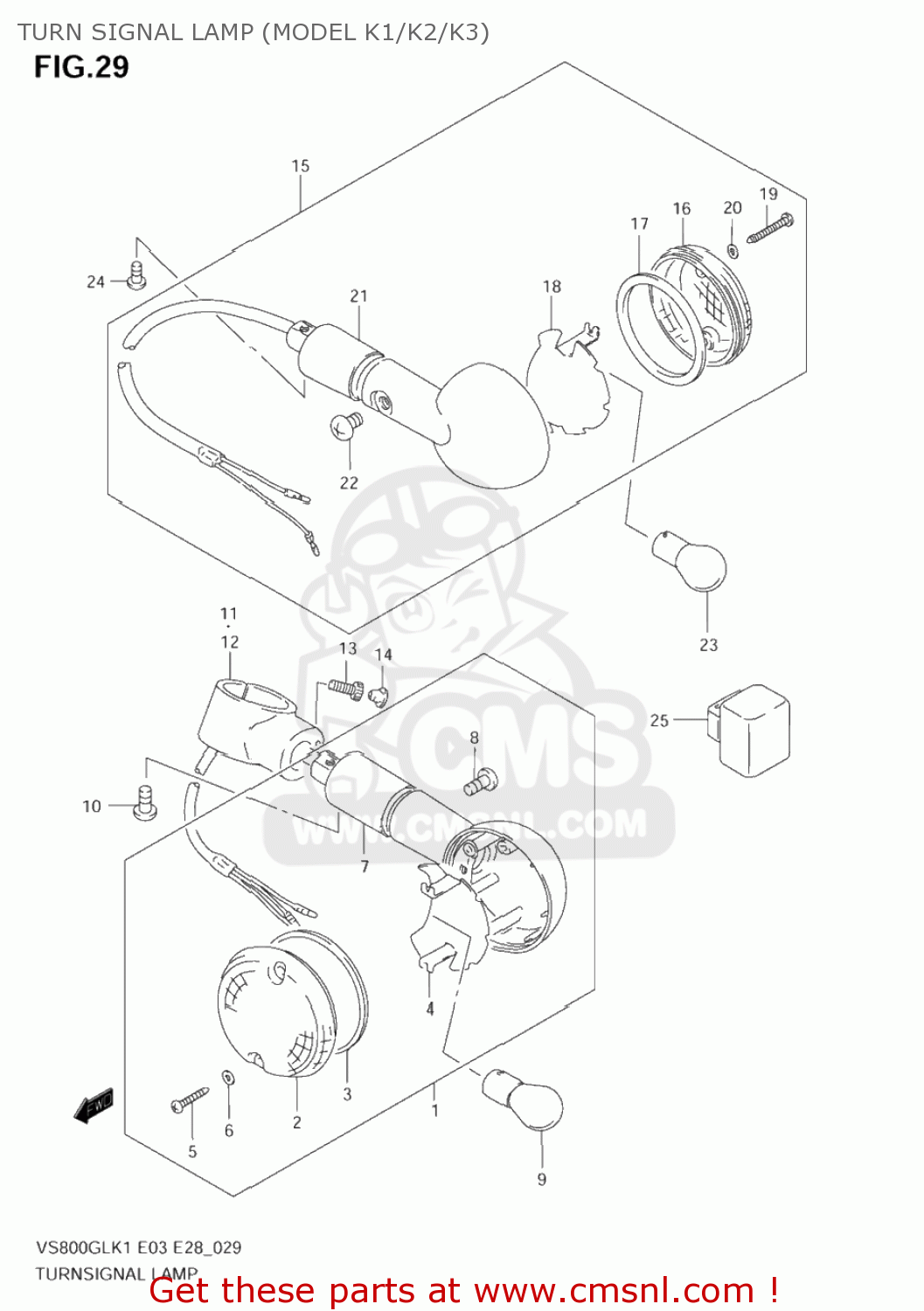

Turn signal lamp (model k1/k2/k3) diagram VS800GL INTRUDER 2003 (K3) USA (E03)

TURN SIGNAL LAMP (MODEL K1/K2/K3) VS800GL INTRUDER 2003 (K3) USA (E03)

TURN SIGNAL LAMP (MODEL K1/K2/K3) VS800GL INTRUDER 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3560138A32999
ref: 1

LAMP ASSY,FR TURN SIGNAL

€ 135.50

2

3561238A30
ref: 2

LENS

€ 16.50

3

3561338A00
ref: 3

GASKET (NAS)

€ 11.50

4

3562439A00
ref: 4

REFRECTOR

€ 0.00

5

0321104253
ref: 5
03211-0425B

SCREW

€ 2.00

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

3561938A01
ref: 7

STAY,TURNSIGNAL LAMP

€ 35.50

8

3562338A01
ref: 8

SCREW

€ 5.50

9-1

0947112128
ref: 9-1

BULB(12V21/5W,BF141-49642A)

€ 6.00

9-2

0947112083
ref: 9-2
09471-12128

BULB(12V21/5W)

€ 6.00

10

0214206107
ref: 10

SCREW

€ 2.00

11

3567139A00
ref: 11

BRACKET,FR TURNSIGNAL LAMP,R

€ 51.50

12

3568139A00
ref: 12

BRACKET,FR TURNSIGNAL LAMP,L

€ 51.50

13

0713006167
ref: 13

BOLT

€ 3.00

14

0925005008
ref: 14

CAP(OD:10)

€ 5.00

15

3560338A02999
ref: 15

LAMP ASSY,FR TURN SIGNAL

€ 105.00

16

3561238A01
ref: 16

LENS

€ 10.50

17

3561338A00
ref: 17

GASKET (NAS)

€ 11.50

18

3562439A00
ref: 18

REFRECTOR

€ 0.00

19

0321104253
ref: 19
03211-0425B

SCREW

€ 2.00

20

3562743010
ref: 20

GASKET (NAS)

€ 2.00

21

3561938A01
ref: 21

STAY,TURNSIGNAL LAMP

€ 35.50

22

3562338A01
ref: 22

SCREW

€ 5.50

23

0947112045
ref: 23

BULB(12V21W)

€ 5.00

24

0214206107
ref: 24

SCREW

€ 2.00

25

3861026E00
ref: 25

RELAY ASSY

€ 47.00
