HANDLE SWITCH (MODEL K4)

VS800GL INTRUDER 2003 (K3) USA (E03)

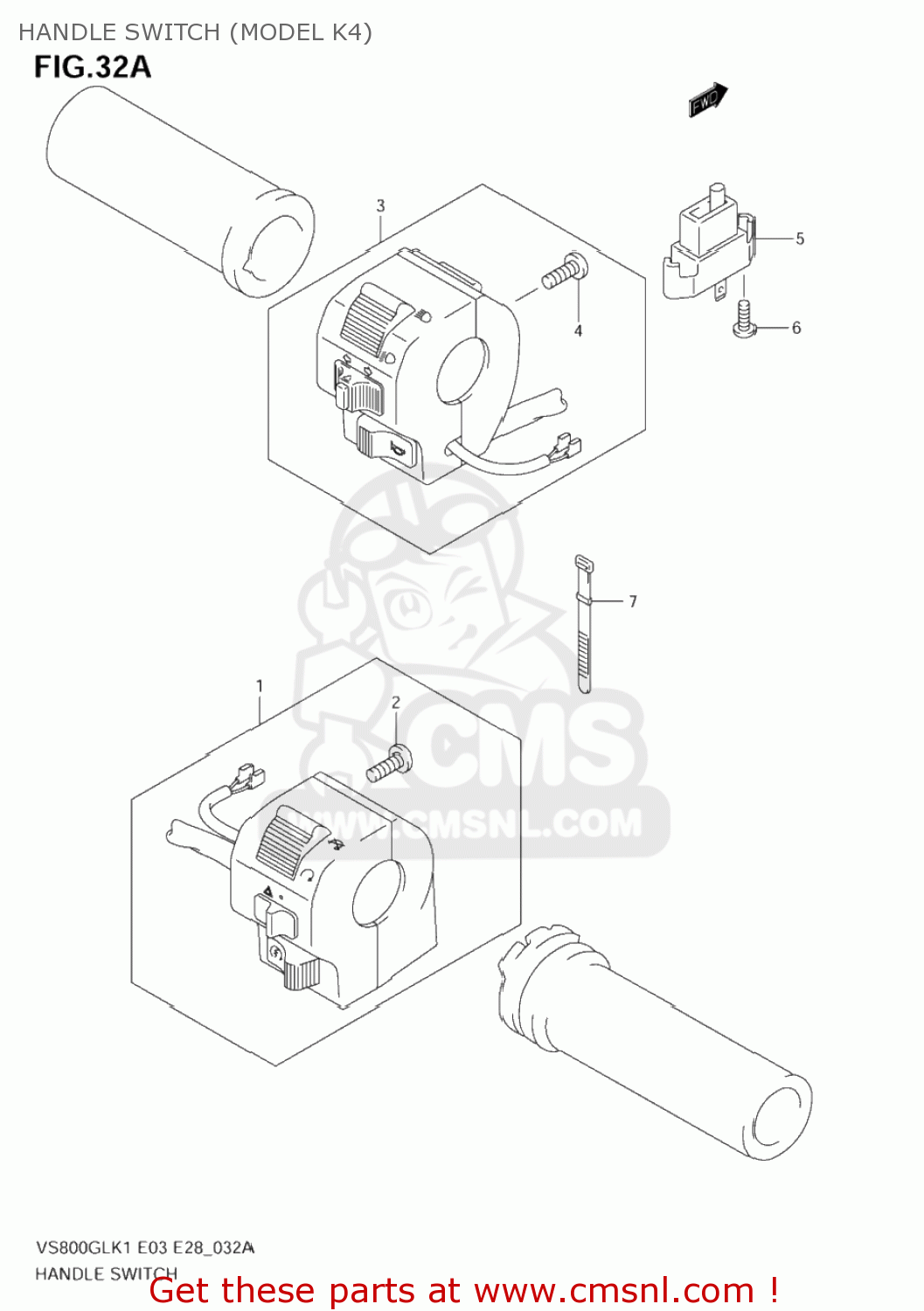

Handle switch (model k4) diagram VS800GL INTRUDER 2003 (K3) USA (E03)

HANDLE SWITCH (MODEL K4) VS800GL INTRUDER 2003 (K3) USA (E03)

HANDLE SWITCH (MODEL K4) VS800GL INTRUDER 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720038AF0
ref: 1

SWITCH ASSY,HANDLE,R

€ 0.00

2

0211205167
ref: 2

SCREW

€ 2.50

3

3740038AF0
ref: 3

SWITCH ASSY,HANDLE,L

€ 114.50

4

0211205167
ref: 4

SCREW

€ 2.50

5

3756038A00
ref: 5

SWITCH ASSY,CLUTCH

€ 20.00

6

0214203127
ref: 6

SCREW

€ 2.00

7

0940714401
ref: 7

CLAMP

€ 3.00
