FUEL TANK (MODEL K5)

VS800GL INTRUDER 2003 (K3) USA (E03)

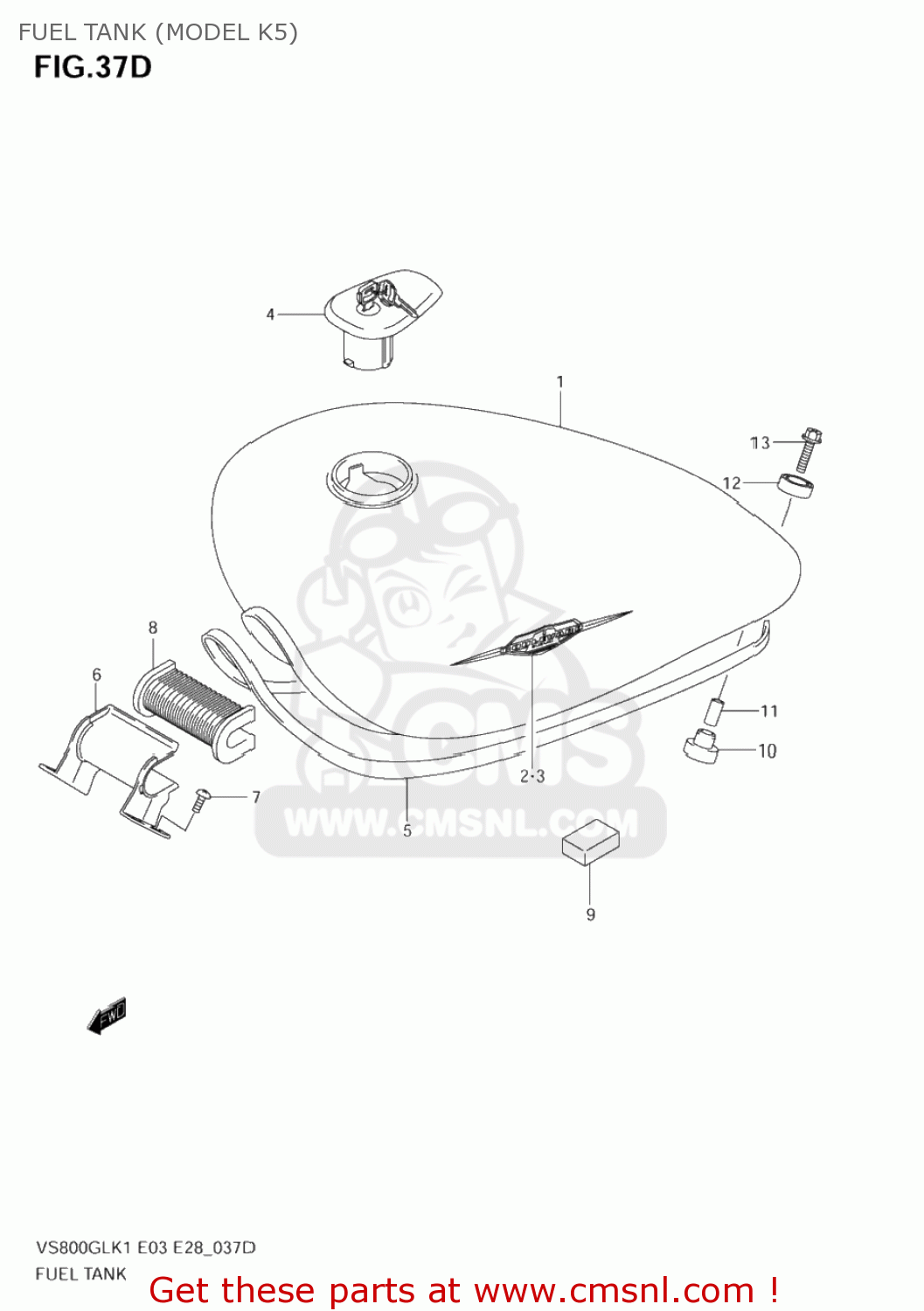

Fuel tank (model k5) diagram VS800GL INTRUDER 2003 (K3) USA (E03)

FUEL TANK (MODEL K5) VS800GL INTRUDER 2003 (K3) USA (E03)

FUEL TANK (MODEL K5) VS800GL INTRUDER 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4410039AE0YAY
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 0.00

1-2

4410039AE0YU8
ref: 1-2

TANK ASSY,FUEL(GRAY)

€ 0.00

1-3

4410039AF0YAY
ref: 1-3

TANK ASSY,FUEL(BLACK)

€ 0.00

1-4

4410039AF0YU8
ref: 1-4

TANK ASSY,FUEL(GRAY)

€ 0.00

2

6811139A10
ref: 2

EMBLEM,FUEL TANK,R

€ 31.50

3

6812139A10
ref: 3

EMBLEM,FUEL TANK,L

€ 31.50

4-1

4420038820
ref: 4-1

CAP SET,FUEL TANK

€ 107.50

4-2

4420038850
ref: 4-2

CAP SET,FUEL TANK

€ 135.50

4-3

4420038860
ref: 4-3

CAP SET,FUEL TANK

€ 135.50

4-4

4420038870
ref: 4-4

ENGRAVED GAS CAP SET,G

€ 136.50

5

6824104X5000B
ref: 5

MOLDING

€ 23.00

6

4425038A10019
ref: 6

BRACKET,FUEL TANK FR

€ 0.00

7

0211276163
ref: 7
02112-7616A

SCREW

€ 2.00

8

4451138A01
ref: 8

CUSHION,FUEL TANK FR

€ 10.50

9

4451238B00
ref: 9
56314-48B10

CUSHION

€ 6.00

10

0932010020
ref: 10

CUSHION

€ 4.00

11

0918006273
ref: 11

SPACER(6.5X9X21.5)

€ 5.50

12

0932014013
ref: 12

CUSHION

€ 3.00

13

0913606095
ref: 13

SCREW(6X35)

€ 0.00
