ELECTRICAL (MODEL K1/K2/K3/K4)

VS800GL INTRUDER 2003 (K3) USA (E03)

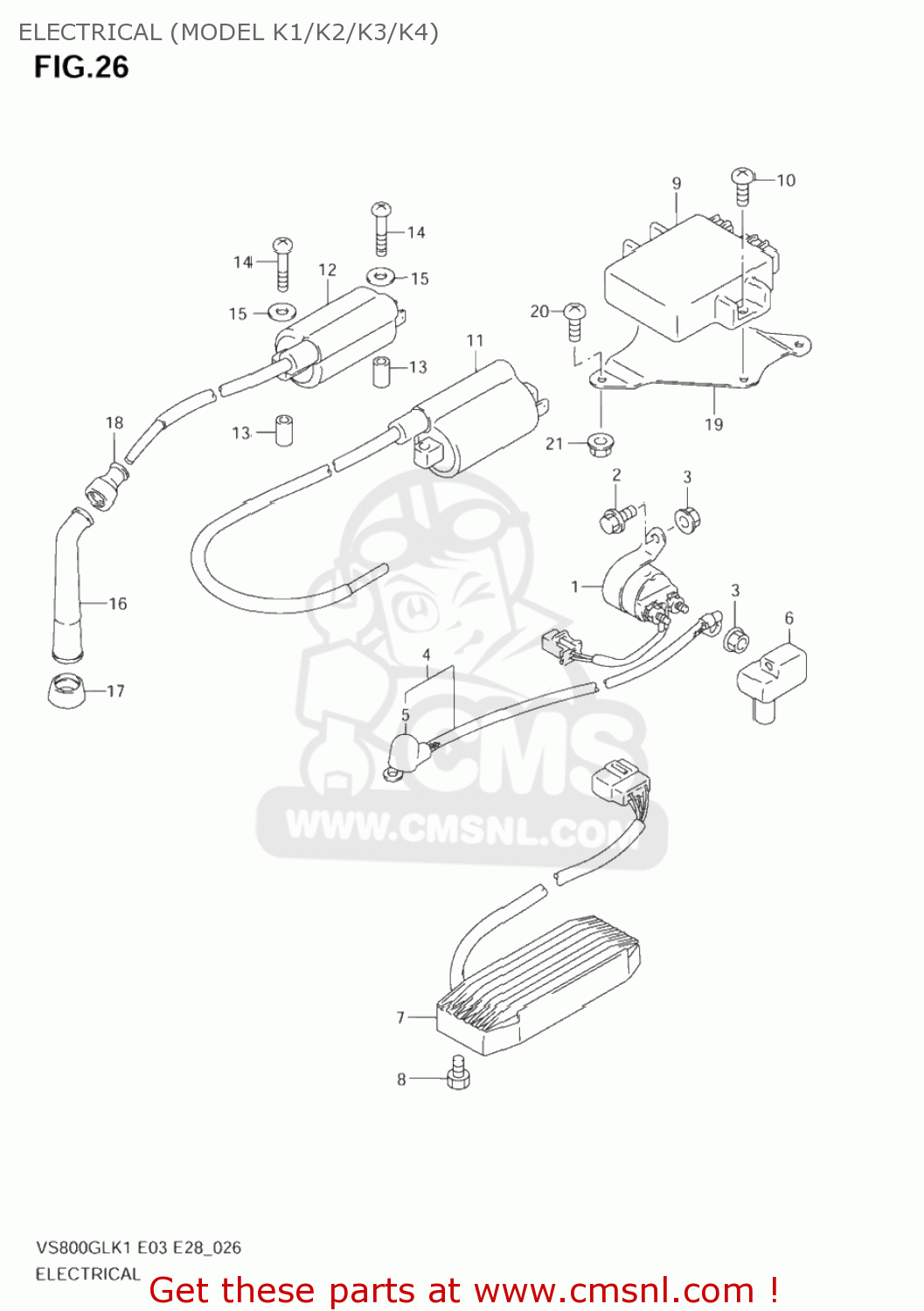

Electrical (model k1/k2/k3/k4) diagram VS800GL INTRUDER 2003 (K3) USA (E03)

ELECTRICAL (MODEL K1/K2/K3/K4) VS800GL INTRUDER 2003 (K3) USA (E03)
ELECTRICAL (MODEL K1/K2/K3/K4) VS800GL INTRUDER 2003 (K3) USA (E03)
ELECTRICAL (MODEL K1/K2/K3/K4) VS800GL INTRUDER 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3180015501
ref: 1
RELAY ASSY,STARTING MOTOR
3180015501
€ 78.00
2
0155006103
ref: 2
01550-0610A
BOLT
0155006103
€ 2.50
3
0836135068
ref: 3
08361-3506A
NUT
0836135068
€ 2.00
4
3385038A00
ref: 4
WIRE,STARTER MOTOR LEAD
3385038A00
€ 17.50
5
3186148B10
ref: 5
CAP,STARTER MOTOR LEAD
3186148B10
€ 4.50
6
3186138A00
ref: 6
CAP,STARTER RELAY
3186138A00
€ 7.50
7
3280012E01
ref: 7
RECTIFIER ASSY
3280012E01
€ 368.00
8
0150006103
ref: 8
01500-0610B
BOLT
€ 2.00
9
3290038A31
ref: 9
IGNITOR ASSY
3290038A31
€ 633.50
10
0214206123
ref: 10
02142-0612A
SCREW 6X12
0214206123
€ 2.00
11
3341038A11
ref: 11
COIL ASSY,IGNITION
3341038A11
€ 136.00
12
3342038A11
ref: 12
COIL ASSY,IGNITION
3342038A11
€ 150.00
13
0918006144
ref: 13
SPACER(6.4X10X19)
0918006144
€ 5.00
14
0912505053
ref: 14
SCREW (5X38)
0912505053
€ 1.50
15-1
0832201053
ref: 15-1
08322-0105A
WASHER
0832201053
€ 2.50
15-2
0832201053
ref: 15-2
08322-0105A
WASHER
0832201053
€ 2.50
16
3351011410
ref: 16
CAP,SPARK PLUG
3351011410
€ 24.50
17
3354124510
ref: 17
33541-47D00
SEAL,SPARK PLUG CAP
3354124510
€ 7.00
18
3354238B00
ref: 18
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
19
3291038A10
ref: 19
PLATE,IGNITOR FITING
3291038A10
€ 7.00
20
0211236123
ref: 20
02112-3612A
BOLT
€ 2.00
21
0831620063
ref: 21
08316-2006A
NUT
0831620063
€ 2.00
