STEERING STEM (MODEL K5)

VS800GL INTRUDER 2003 (K3) USA (E03)

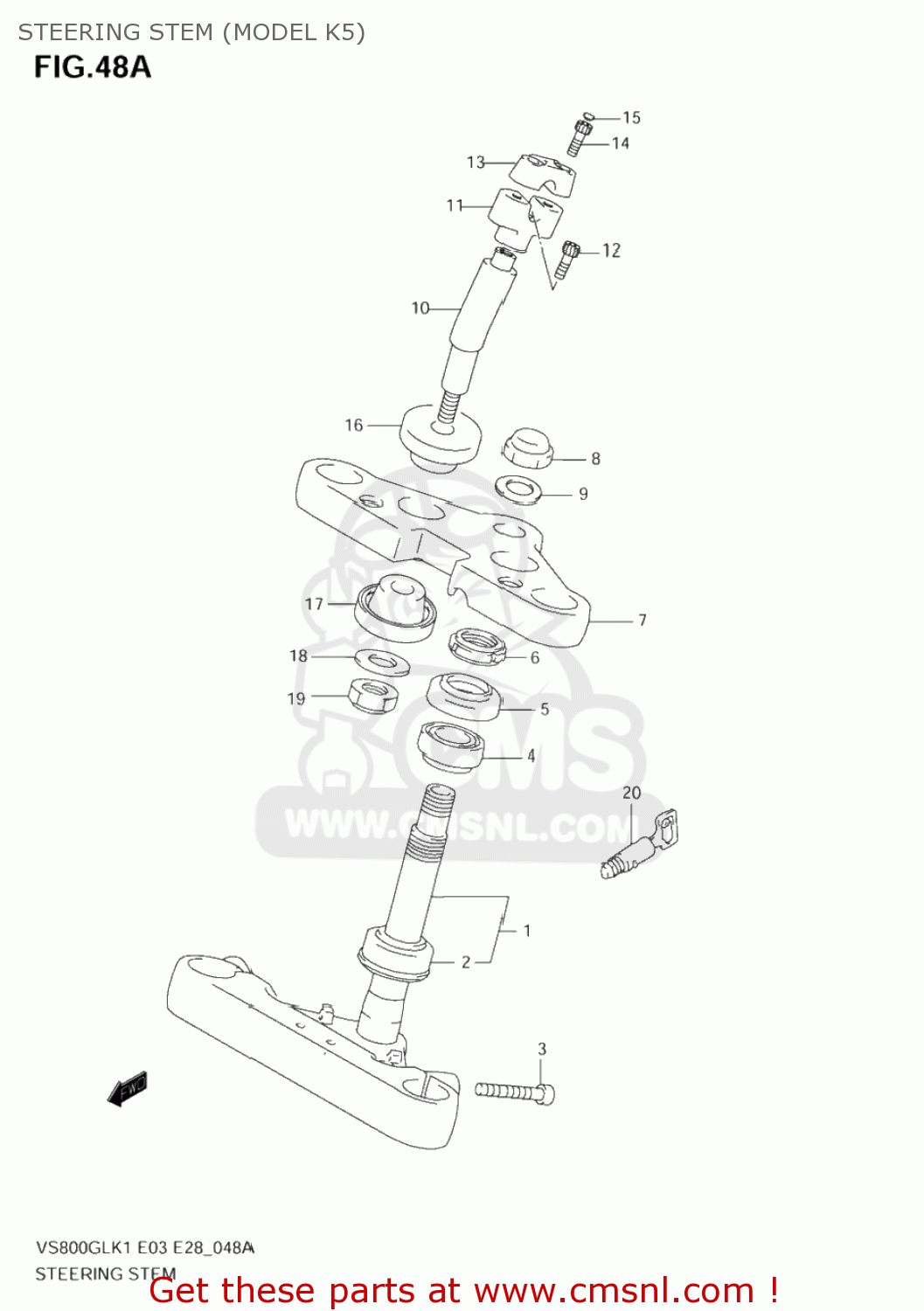

Steering stem (model k5) diagram VS800GL INTRUDER 2003 (K3) USA (E03)

STEERING STEM (MODEL K5) VS800GL INTRUDER 2003 (K3) USA (E03)
STEERING STEM (MODEL K5) VS800GL INTRUDER 2003 (K3) USA (E03)
STEERING STEM (MODEL K5) VS800GL INTRUDER 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5141039A21
ref: 1
STEM,STEERING
5141039A21
€ 594.00
2
0926530009
ref: 2
BEARING(30X55X17)
0926530009
€ 49.50
3
0713010307
ref: 3
BOLT
0713010307
€ 4.50
4
0926525019
ref: 4
BEARING(25X47X15)
0926525019
€ 48.50
5
5164349002
ref: 5
SEAL,STEERING UPR DUST
5164349002
€ 7.50
6
5163128000
ref: 6
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
7
5131139A00
ref: 7
BRACKET,UPR
5131139A00
€ 446.50
8
5135324B00
ref: 8
NUT,CAP
5135324B00
€ 21.50
9
5135624B01
ref: 9
WASHER(22.5X32X1.6)
5135624B01
€ 3.00
10
5623139A40
ref: 10
STAY,HANDLE
5623139A40
€ 59.00
11
5622139A40
ref: 11
HOLDER,HANDLE LWR
5622139A40
€ 226.00
12
0713010257
ref: 12
BOLT
0713010257
€ 3.00
13
5621138B70
ref: 13
HOLDER,HANDLE UPR
€ 0.00
14
0713008307
ref: 14
BOLT
0713008307
€ 4.50
15
0925006009
ref: 15
CAP(OD:14.5)
0925006009
€ 3.50
16
5624038A42
ref: 16
DAMPER,RUBBER
5624038A42
€ 31.50
17
5624239A12
ref: 17
CUSHION,RUBBER UNDER
5624239A12
€ 42.50
18
5135438A40
ref: 18
WASHER
5135438A40
€ 9.00
19
0915910027
ref: 19
NUT
0915910027
€ 3.00
20
5190038810
ref: 20
LOCK SET,STEERING
5190038810
€ 168.50
