WIRING HARNESS (MODEL K1/K2/K3)

VS800GL INTRUDER 2003 (K3) USA (E03)

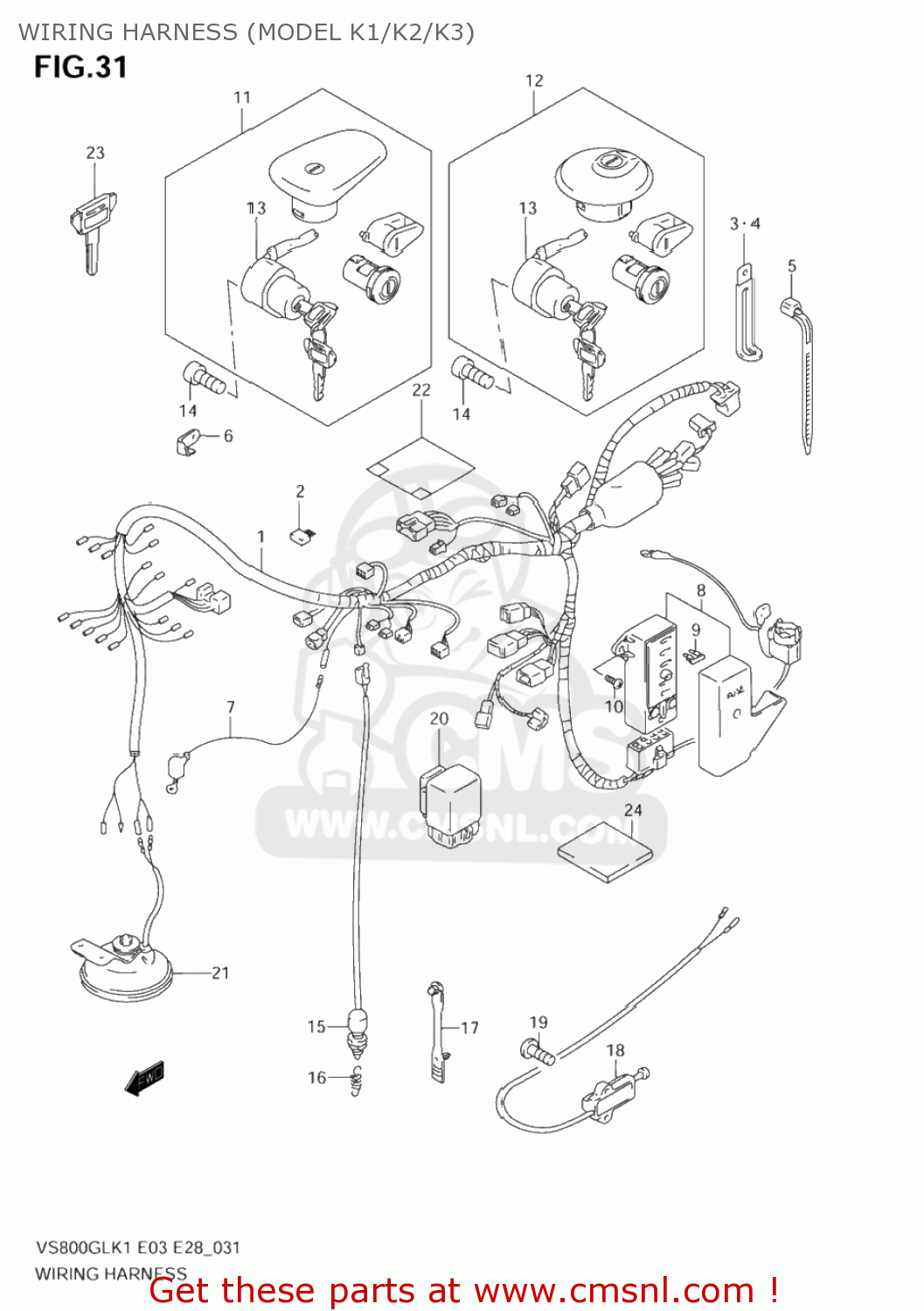

Wiring harness (model k1/k2/k3) diagram VS800GL INTRUDER 2003 (K3) USA (E03)

WIRING HARNESS (MODEL K1/K2/K3) VS800GL INTRUDER 2003 (K3) USA (E03)
WIRING HARNESS (MODEL K1/K2/K3) VS800GL INTRUDER 2003 (K3) USA (E03)
WIRING HARNESS (MODEL K1/K2/K3) VS800GL INTRUDER 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3661039AC0
ref: 1
HARNESS,WIRING
€ 0.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
0940406431
ref: 3
09404-06432
CLAMP(L:65)
0940406431
€ 2.50
4
0940406432
ref: 4
CLAMP(L:65)
0940406432
€ 2.50
5-1
0940714403
ref: 5-1
CLAMP(L:125)
0940714403
€ 2.50
5-2
0940718402
ref: 5-2
CLAMP(L:165)
0940718402
€ 2.50
6
3668738A00
ref: 6
PLATE,COUPLER HOLDER
€ 2.00
7
3685117E00
ref: 7
WIRE,WATER TEMP GAUGE LEAD
3685117E00
€ 7.50
8
3674039A00
ref: 8
BOX ASSY,FUSE
3674039A00
€ 93.50
9-1
0948110101
ref: 9-1
FUSE(10A)
0948110101
€ 2.50
9-2
0948125103
ref: 9-2
FUSE(25A)
0948125103
€ 2.50
10
0214206163
ref: 10
02142-0616A
SCREW
0214206163
€ 2.50
11
3710038835
ref: 11
LOCK SET
3710038835
€ 182.00
12
3700038840
ref: 12
LOCK SET
€ 0.00
13
3711038A04
ref: 13
SWITCH ASSY,IGNITION
3711038A04
€ 74.50
14
0713005163
ref: 14
07130-0516A
BOLT
€ 2.00
15
3774031D00
ref: 15
SWITCH ASSY,STOP LAMP
3774031D00
€ 20.50
16
0944306046
ref: 16
SPRING
0944306046
€ 3.50
17
0940705403
ref: 17
CLAMP,L:88
0940705403
€ 1.50
18
3784039A22
ref: 18
SWITCH ASSY,SIDE STAND
3784039A22
€ 87.50
19
0211276203
ref: 19
02112-7620B
SCREW
€ 2.50
20
3874024X50
ref: 20
RELAY ASSY
3874024X50
€ 37.50
21
3850039A00
ref: 21
HORN ASSY
3850039A00
€ 126.00
22
3661815D20
ref: 22
COVER,WIRING HARNESS
3661815D20
€ 12.00
23-1
3714603A00
ref: 23-1
KEY,BLANK(TYPE:C)
3714603A00
€ 6.00
23-2
3714603A10
ref: 23-2
KEY,BLANK(TYPE:D)
3714603A10
€ 6.00
23-3
3714603A20
ref: 23-3
KEY,BLANK(TYPE:E)
3714603A20
€ 6.00
23-4
3714603A30
ref: 23-4
KEY,BLANK(TYPE:F)
3714603A30
€ 6.00
24
3692002200
ref: 24
COVER,HARNESS
3692002200
€ 3.00
