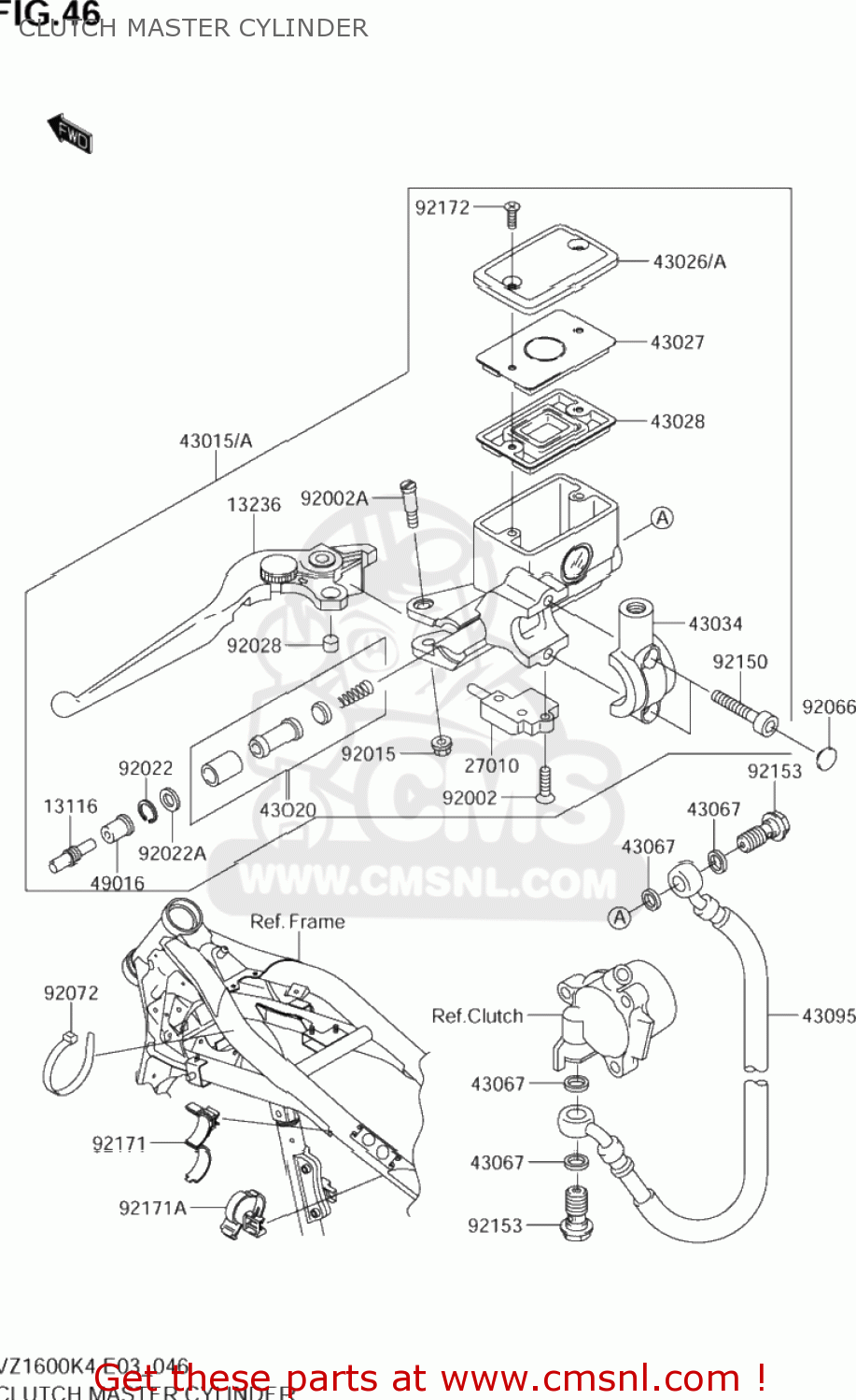

CLUTCH MASTER CYLINDER

ref

part #

description

quantity

13116

K131161110
ref: 13116

ROD-PUSH,MASTE

€ 25.00

13236

K132361316
ref: 13236

LEVER-COMP,CLUTCH

€ 39.00

27010

K270101406
ref: 27010

SWITCH,CLUTCH

€ 21.00

43015

K430150022
ref: 43015

CYLINDER-ASSY-

€ 350.00

43015A

K430150035
ref: 43015A

CYLINDER-ASSY-MASTER,CLUTCH

€ 242.00

43020

K430201055
ref: 43020

PISTON-COMP-BRAKE,CLUTCH

€ 52.50

43026

K430260002
ref: 43026

CAP-BRAKE

€ 32.00

43026A

K430260003
ref: 43026A

CAP-BRAKE

€ 42.00

43027

K430271059
ref: 43027

PLATE-DIAPHRAGM

€ 6.00

43028

K430281058
ref: 43028

DIAPHRAGM,MASTER CYLINDER

€ 19.00

43034

K430341172
ref: 43034

HOLDER-BRAKE

€ 43.50

43067

KK43067001
ref: 43067
K4909-10001

WASHER,10.5X15

€ 3.00

43095

K430951215
ref: 43095

HOSE-BRAKE,CLU

€ 180.50

49016

K490161044
ref: 49016

COVER-SEAL,MASTER CYLINDER

€ 13.00

92002

K920021325
ref: 92002

SCREW,4X16

€ 5.50

92002A

K920021561
ref: 92002A

BOLT,LEVER SET

€ 9.00

92015

K920151528
ref: 92015

NUT,FLANGED,6MM

€ 3.00

92022

K920221605
ref: 92022

WASHER

€ 3.50

92022A

K920221606
ref: 92022A

WASHER,PISTON

€ 3.50

92028

K920281310
ref: 92028

BUSHING,MASTER CYLINDER

€ 11.50

92066

K920661301
ref: 92066

PLUG

€ 4.00

92072

K920721197
ref: 92072

BAND,L=365

€ 6.00

92150

K921501025
ref: 92150

BOLT,SOCKET,6MM

€ 4.50

92153

K921530627
ref: 92153

BOLT,OIL,L=23

€ 4.50

92171

K921711424
ref: 92171

CLAMP,DIA=15

€ 2.50

92171A

K921711440
ref: 92171A

CLAMP,HOSE

€ 4.50

92172

K921720083
ref: 92172

SCREW

€ 3.00
