ENGINE MOUNT

VZ1600 BOULEVARD M95 2005 (K5) USA (E03)

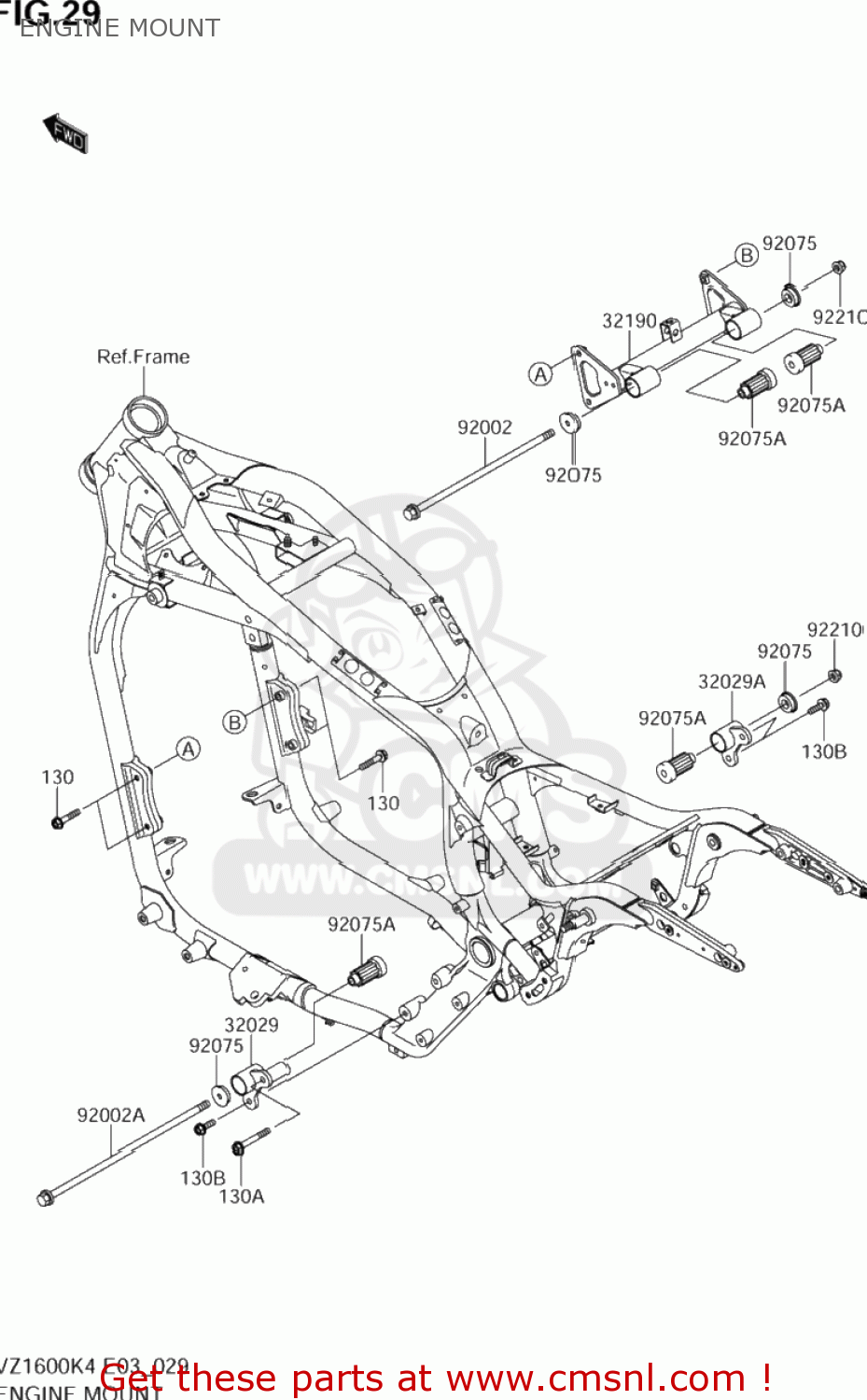

Engine mount diagram VZ1600 BOULEVARD M95 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

130

KK130J0840
ref: 130

BOLT-FLANGED,8X40

€ 1.50

130A

KK130J0860
ref: 130A

BOLT-FLANGED

€ 2.50

130B

KK130S0825
ref: 130B

BOLT,FLANGED

€ 1.50

32029

K320291986
ref: 32029

BRACKET-ENGINE

€ 42.00

32029A

K320291987
ref: 32029A

BRACKET-ENGINE

€ 37.00

32190

K321900022
ref: 32190

BRACKET-ENGINE

€ 130.50

92002

K920021206
ref: 92002

BOLT,FLANGED,10X285

€ 12.50

92002A

K920021540
ref: 92002A

BOLT,FLANGED,10X330

€ 15.00

92075

K920751738
ref: 92075

DAMPER,ENGINE BRACKET

€ 15.50

92075A

K920751739
ref: 92075A

DAMPER,ENGINE MOUNT,MAIN

€ 30.00

92210

K922101081
ref: 92210

NUT,LOCK,FLANGED,10MM

€ 9.00
