METER
VZ1600 BOULEVARD M95 2005 (K5) USA (E03)

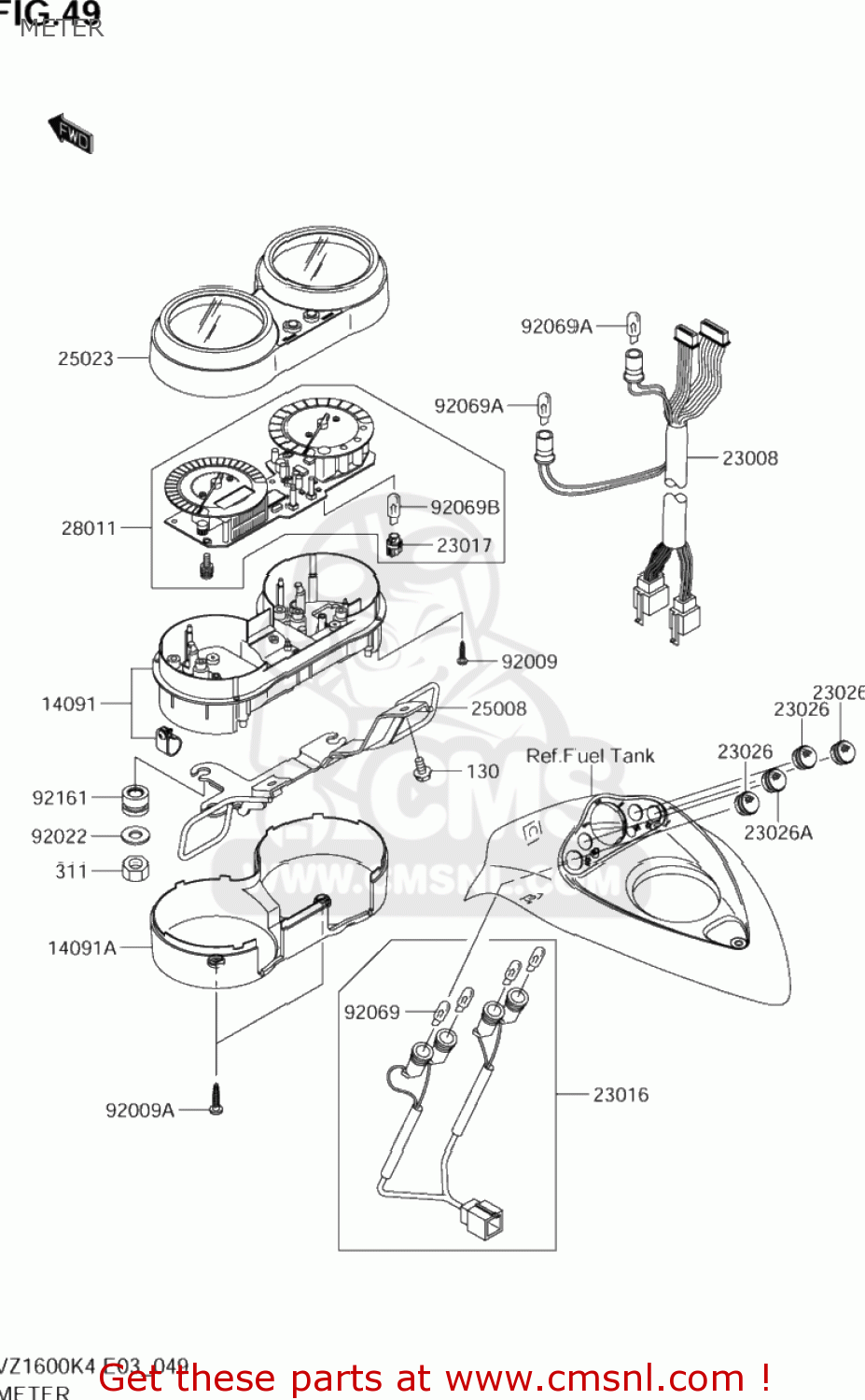

Meter diagram VZ1600 BOULEVARD M95 2005 (K5) USA (E03)
METER VZ1600 BOULEVARD M95 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
130
KK130J0612
ref: 130
BOLT-FLANGED
€ 1.50
311
KK311B0500
ref: 311
K311A-A0500
NUT HEX
€ 1.00
14091
K140911370
ref: 14091
COVER,METER HOUSING
€ 90.50
14091A
K140911371
ref: 14091A
COVER,METER,LWR
€ 95.00
23008
K230081655
ref: 23008
SOCKET-ASSY,METER
€ 107.00
23016
K230161192
ref: 23016
LAMP-ASSY
€ 43.00
23017
K230171064
ref: 23017
SOCKET
€ 4.00
23026
K230261171
ref: 23026
LENS,GREEN
€ 4.50
23026A
K230261172
ref: 23026A
LENS,BLUE
€ 4.50
25008
K250081230
ref: 25008
BRACKET-METER
€ 50.00
25023
K250231261
ref: 25023
COVER-METER CASE,UPP
€ 97.00
28011
K280110009
ref: 28011
METER,SPEED&TACHO,MPH
€ 643.50
92009
K920091592
ref: 92009
SCREW,TAPPING,3X14
€ 3.00
92009A
K920091601
ref: 92009A
SCREW,TAPPING,4X16
€ 2.50
92022
KK92022263
ref: 92022
WASHER,5.2X16X1.2
€ 2.00
92069
K920691007
ref: 92069
BULB,12V 3.4W,T10
€ 5.00
92069A
K920691059
ref: 92069A
BULB,12V 1.7W,T10
€ 5.00
92069B
K920691068
ref: 92069B
BULB,12V 3W,T6.5
€ 6.00
92161
K921611247
ref: 92161
DAMPER,METER BRACKET
€ 3.50
