Buy Suzuki VZ Parts Online


FRONT BEVEL GEAR

VZ1600 BOULEVARD M95 2005 (K5) USA (E03)

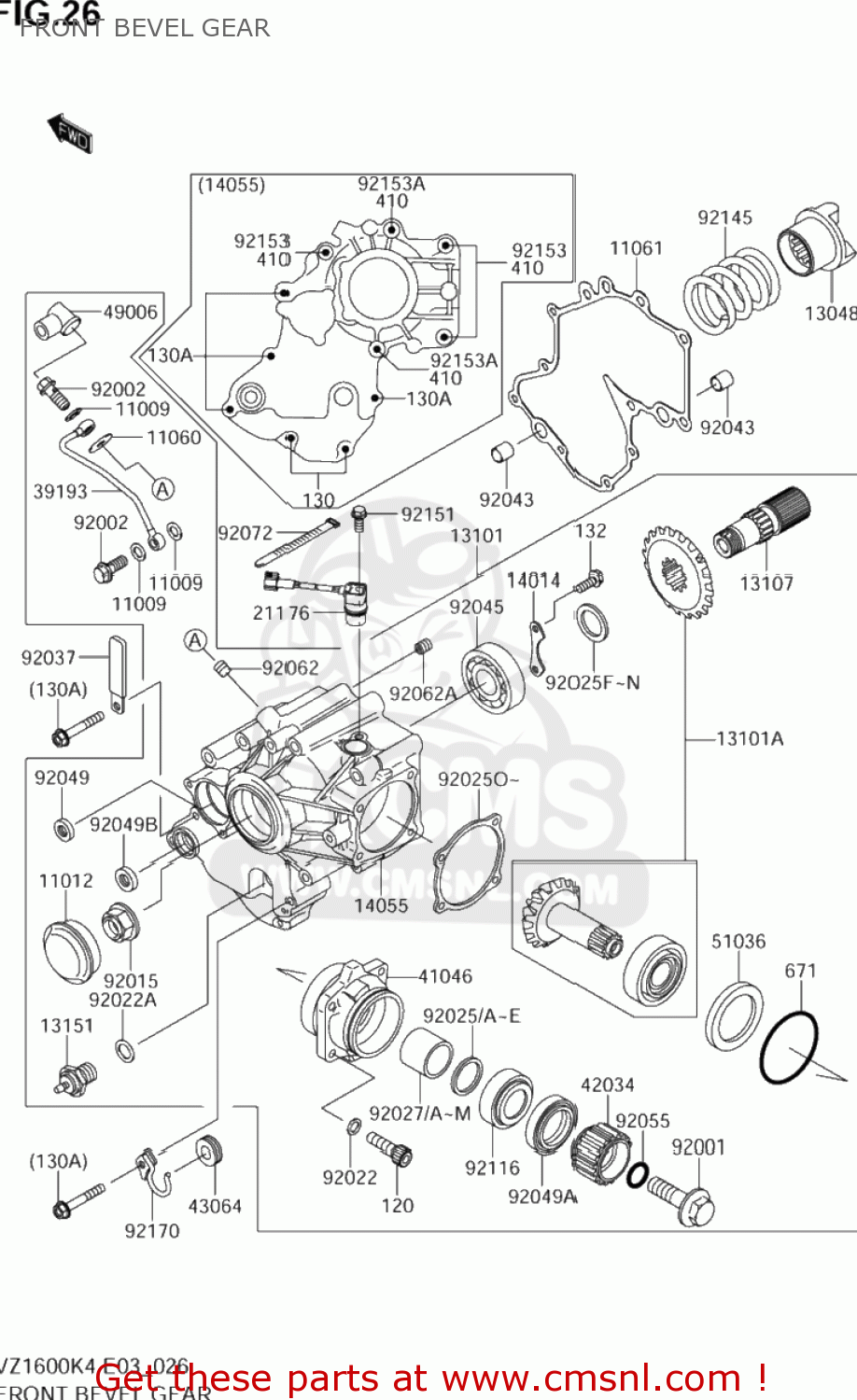

Front bevel gear diagram VZ1600 BOULEVARD M95 2005 (K5) USA (E03)

FRONT BEVEL GEAR VZ1600 BOULEVARD M95 2005 (K5) USA (E03)
FRONT BEVEL GEAR VZ1600 BOULEVARD M95 2005 (K5) USA (E03)
FRONT BEVEL GEAR VZ1600 BOULEVARD M95 2005 (K5) USA (E03)
prices are in EUR
ref
part #
description
quantity
120
KK120S0830
ref: 120
K120C-B0830
BOLT-SOCKET,8X30,BLACK
KK120S0830
€ 1.50
130
KK130S0630
ref: 130
BOLT-FLANGED
€ 1.50
130A
KK130S0640
ref: 130A
BOLT-FLANGED
€ 2.00
132
KK132G0616
ref: 132
K132B-A0616
BOLT FLANGED S
KK132G0616
€ 1.00
410
KK410B0800
ref: 410
K410A-A0800
WASHER PLAIN S
€ 1.50
671
KK671B2565
ref: 671
O RING,65MM
KK671B2565
€ 4.50
11009
K110091344
ref: 11009
GASKET,OIL PIPE,8.2X14X1.0 (NAS)
K110091344
€ 6.00
11012
K110121071
ref: 11012
CAP
€ 17.50
11060
K110601872
ref: 11060
GASKET,OIL PIP (NAS)
€ 2.50
11061
K110610046
ref: 11061
GASKET,BEVEL GEAR CASE (NAS)
€ 18.50
13048
K130481085
ref: 13048
CAM-DAMPER
€ 44.50
13101
K131010020
ref: 13101
GEAR-ASSY
€ 1,786.00
13101A
K131015088
ref: 13101A
GEAR-ASSY,BEVE
€ 717.00
13107
K131071525
ref: 13107
SHAFT,BEVEL,FR
€ 107.00
13151
K131511010
ref: 13151
SWITCH-COMP
€ 15.00
14014
K140141136
ref: 14014
PLATE-POSITION
€ 3.50
14055
K140550006
ref: 14055
CASE-GEAR,FRON
€ 504.00
21176
K211760030
ref: 21176
K2117-60037
SENSOR,SPEED
€ 86.00
39193
K391931026
ref: 39193
PIPE-OIL
€ 27.00
41046
K410461099
ref: 41046
HOUSING-BEARING
€ 86.50
42034
K420341091
ref: 42034
COUPLING,FR DR
€ 74.50
43064
KK43064006
ref: 43064
GROMMET,HOSE CLAMP
€ 3.50
49006
K490061040
ref: 49006
BOOT,DUST
€ 8.00
51036
K510361002
ref: 51036
CUP
€ 4.00
92001
K920011169
ref: 92001
BOLT,FLANGED,12X42
€ 16.50
92002
K920021429
ref: 92002
BOLT,8X20
€ 7.50
92015
K920151554
ref: 92015
NUT,24MM
€ 17.50
92022
K920221028
ref: 92022
WASHER,8.5X13X1
€ 2.50
92022A
K920221211
ref: 92022A
WASHER
€ 3.50
92025
K920251072
ref: 92025
SHIM,25.2X29.8X1.70
€ 6.50
92025A
K920251073
ref: 92025A
SHIM,25.2X29.8X1.72
€ 6.50
92025B
K920251074
ref: 92025B
SHIM,25.2X29.8X1.74
€ 6.50
92025C
K920251075
ref: 92025C
SHIM,25.2X29.8X1.76
€ 6.50
92025D
K920251076
ref: 92025D
SHIM,25.2X29.8X1.78
€ 6.50
92025E
K920251077
ref: 92025E
SHIM,25.2X29.8X1.80
€ 6.50
92025F
K920251688
ref: 92025F
SHIM,25.3X36X0.15
€ 5.50
92025G
K920251689
ref: 92025G
SHIM,25.3X36X0.50
€ 5.50
92025H
K920251690
ref: 92025H
SHIM,25.3X36X0.60
€ 5.50
92025I
K920251691
ref: 92025I
SHIM,25.3X36X0.70
€ 5.50
92025J
K920251692
ref: 92025J
SHIM,25.3X36X0.80
€ 5.50
92025K
K920251693
ref: 92025K
SHIM,25.3X36X0.90
€ 5.50
92025L
K920251694
ref: 92025L
SHIM,25.3X36X1.00
€ 5.50
92025M
K920251695
ref: 92025M
SHIM,25.3X36X1.10
€ 5.50
92025N
K920251696
ref: 92025N
SHIM,25.3X36X1.20
€ 5.50
92025O
K920251818
ref: 92025O
SHIM,T=0.15
€ 7.00
92025P
K920251819
ref: 92025P
SHIM,T=0.50
€ 7.00
92025Q
K920251820
ref: 92025Q
SHIM,T=0.60
€ 7.00
92025R
K920251821
ref: 92025R
SHIM,T=0.70
€ 7.00
92025S
K920251822
ref: 92025S
SHIM,T=0.80
€ 7.00
92025T
K920251823
ref: 92025T
SHIM,T=0.90
€ 7.00
92025U
K920251824
ref: 92025U
SHIM,T=1.00
€ 7.00
92025V
K920251825
ref: 92025V
SHIM,T=1.20
€ 7.00
92025W
K920251826
ref: 92025W
SHIM,T=0.10
€ 7.00
92027
K920271152
ref: 92027
COLLAR,25.2X29.8X22.8
€ 12.00
92027A
K920271153
ref: 92027A
COLLAR,25.2X29.8X22.9
€ 12.50
92027B
K920271154
ref: 92027B
COLLAR,25.2X29.8X23
€ 12.00
92027C
K920271155
ref: 92027C
COLLAR,25.2X29.8X23.1
€ 13.00
92027D
K920271156
ref: 92027D
COLLAR,25.2X29.8X23.2
€ 12.00
92027E
K920271157
ref: 92027E
COLLAR,25.2X29.8X23.3
€ 12.00
92027F
K920271158
ref: 92027F
COLLAR,25.2X29.8X23.4
€ 12.00
92027G
K920271159
ref: 92027G
COLLAR,25.2X29.8X23.5
€ 12.50
92027H
K920271160
ref: 92027H
COLLAR,25.2X29.8X23.6
€ 12.00
92027I
K920271161
ref: 92027I
COLLAR,25.2X29.8X23.7
€ 12.50
92027J
K920271162
ref: 92027J
COLLAR,25.2X29.8X23.8
€ 12.00
92027K
K920271163
ref: 92027K
COLLAR,25.2X29.8X23.9
€ 12.50
92027L
K920271164
ref: 92027L
COLLAR,25.2X29.8X24
€ 12.00
92027M
K920271165
ref: 92027M
COLLAR,25.2X29.8X24.1
€ 12.00
92037
K920371069
ref: 92037
CLAMP,L=60
€ 4.00
92043
K920431279
ref: 92043
PIN,11.5X14X14
€ 3.50
92045
K920451165
ref: 92045
BEARING-BALL,6305C2
€ 26.00
92049
K920491017
ref: 92049
SEAL-OIL,SD-8187
€ 5.00
92049A
K920491038
ref: 92049A
SEAL-OIL,TC35527
€ 9.50
92049B
K920491519
ref: 92049B
SEAL-OIL,TC13225.5
€ 11.00
92055
K920551044
ref: 92055
RING-O,ID=18.64
K920551044
€ 3.00
92062
K920621078
ref: 92062
NOZZLE,6X8,GREEN
€ 3.50
92062A
K920621083
ref: 92062A
NOZZLE,10X10,SILVER
€ 4.50
92072
K920721195
ref: 92072
BAND,L=202
€ 5.00
92116
K921161062
ref: 92116
BEARING-ROLLER,HI-CAP30205
€ 18.50
92145
K921451102
ref: 92145
SPRING,CAM DAMPER
€ 38.50
92151
K921511755
ref: 92151
BOLT
€ 2.00
92153
K921530433
ref: 92153
BOLT,8X80
€ 4.50
92153A
K921530434
ref: 92153A
BOLT,8X95
€ 2.50
92170
K921701732
ref: 92170
CLAMP
€ 8.50
