FENDER
VZ1600 BOULEVARD M95 2005 (K5) USA (E03)

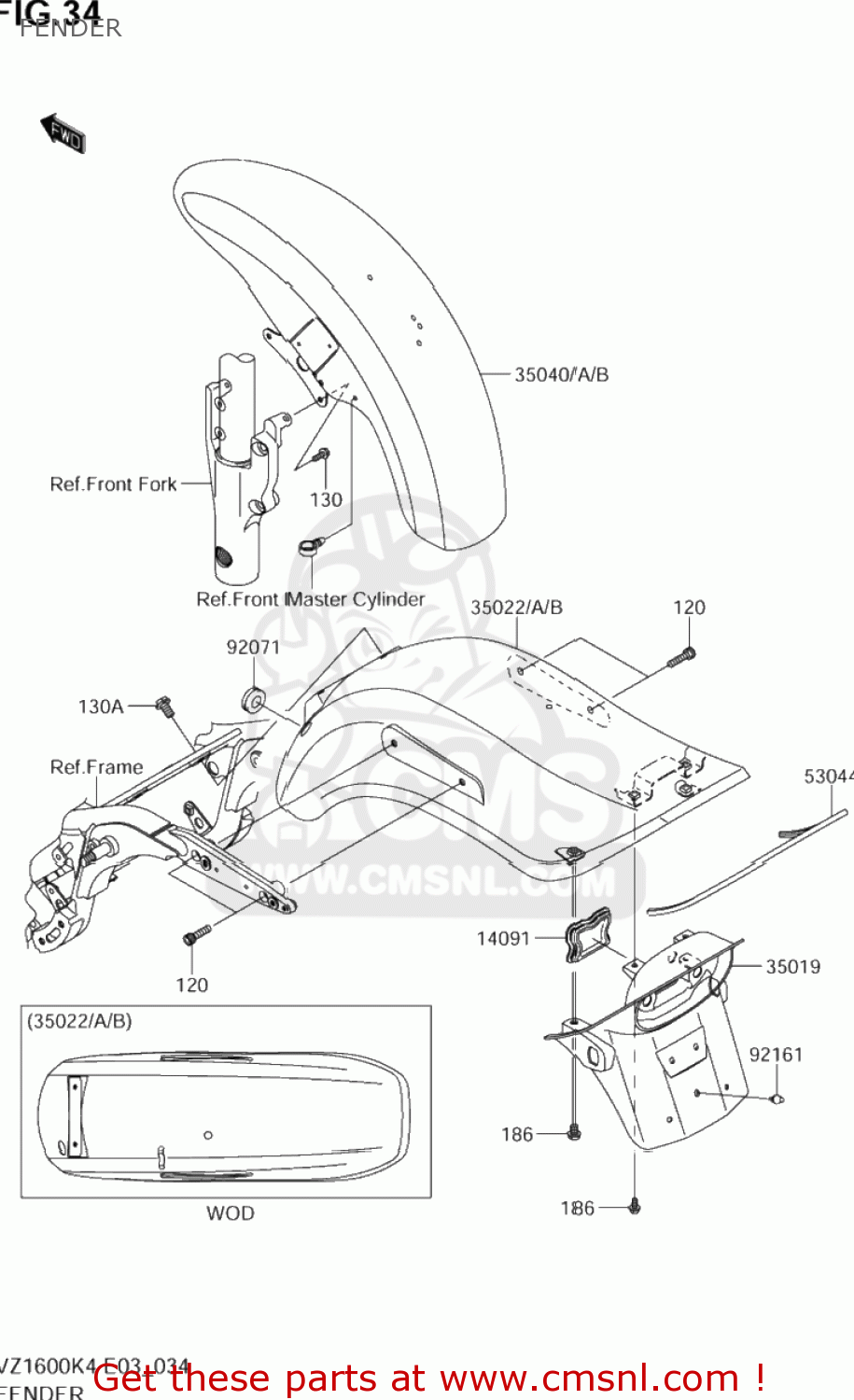

Fender diagram VZ1600 BOULEVARD M95 2005 (K5) USA (E03)
FENDER VZ1600 BOULEVARD M95 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
120
KK120S0830
ref: 120
K120C-B0830
BOLT-SOCKET,8X30,BLACK
€ 1.50
130
KK130J0616
ref: 130
BOLT-FLANGED,6X16,BLACK
€ 1.50
130A
KK130J0816
ref: 130A
BOLT-FLANGED,8X16,BLACK
€ 1.50
186
KK186J0614
ref: 186
K186B-B0614
BOLT-UPSET-WP
€ 1.50
14091
K140910125
ref: 14091
COVER
€ 10.00
35019
K350190019
ref: 35019
FLAP
€ 39.50
35022
KK350220016C4
ref: 35022
FENDER-COMP-REAR
€ 551.00
35022A
KK350220016M4
ref: 35022A
FENDER REAR,L.P.BLUE
€ 597.50
35022B
K350220016660
ref: 35022B
FENDER REAR,M.S.BLACK
€ 551.00
35040
KK350401053C4
ref: 35040
FENDER-COMP-FRONT
€ 100.00
35040A
KK350401053M4
ref: 35040A
FENDER-COMP-FRONT
€ 108.50
35040B
K350401053660
ref: 35040B
FENDER-COMP-FRONT
€ 100.00
53044
K530440002
ref: 53044
TRIM,L=578
€ 13.00
92071
K920711265
ref: 92071
GROMMET
€ 3.00
92161
K921610091
ref: 92161
DAMPER
€ 2.50
