FRAME
VZ1600 BOULEVARD M95 2005 (K5) USA (E03)

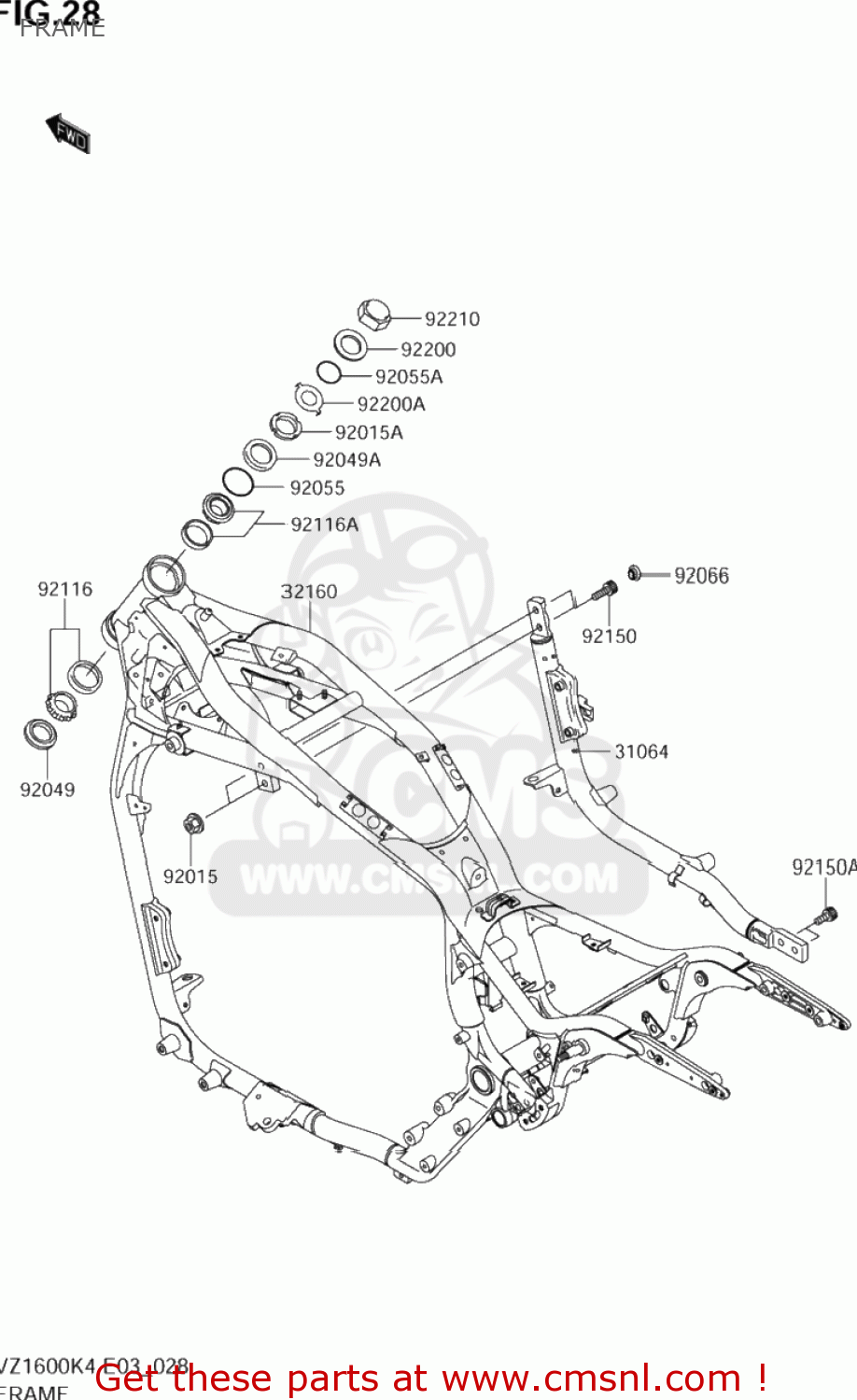

Frame diagram VZ1600 BOULEVARD M95 2005 (K5) USA (E03)
FRAME VZ1600 BOULEVARD M95 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
31064
K310641256
ref: 31064
PIPE-COMP,DOWN
€ 394.00
32160
K321600095
ref: 32160
FRAME COMP
€ 2,564.50
92015
K920151727
ref: 92015
NUT,FLANGED,10MM
€ 3.50
92015A
K920151848
ref: 92015A
NUT,STEERING STEM,35MM
€ 29.00
92049
K920491383
ref: 92049
SEAL-OIL,XMHE 43 55 4J
€ 11.50
92049A
K920491483
ref: 92049A
SEAL-OIL,MX043N2
€ 11.50
92055
K920551452
ref: 92055
RING-O,34.5X2.0
€ 3.50
92055A
K920551459
ref: 92055A
RING-O,ID=24.5
€ 3.50
92066
K920661562
ref: 92066
PLUG
€ 6.00
92116
K921161072
ref: 92116
BEARING-ROLLER,32907JR-2
€ 34.00
92116A
K921161074
ref: 92116A
BEARING-ROLLER,32907JR-3
€ 46.50
92150
K921501690
ref: 92150
BOLT,SOCKET,10X30
€ 4.00
92150A
K921501942
ref: 92150A
BOLT,SOCKET,10X23
€ 4.50
92200
K922000105
ref: 92200
WASHER,25.5X43X2.3
€ 3.00
92200A
K922001083
ref: 92200A
WASHER,CLAW,25.5X40X2.3
€ 4.50
92210
K922101166
ref: 92210
NUT,CAP,25MM
€ 16.50
