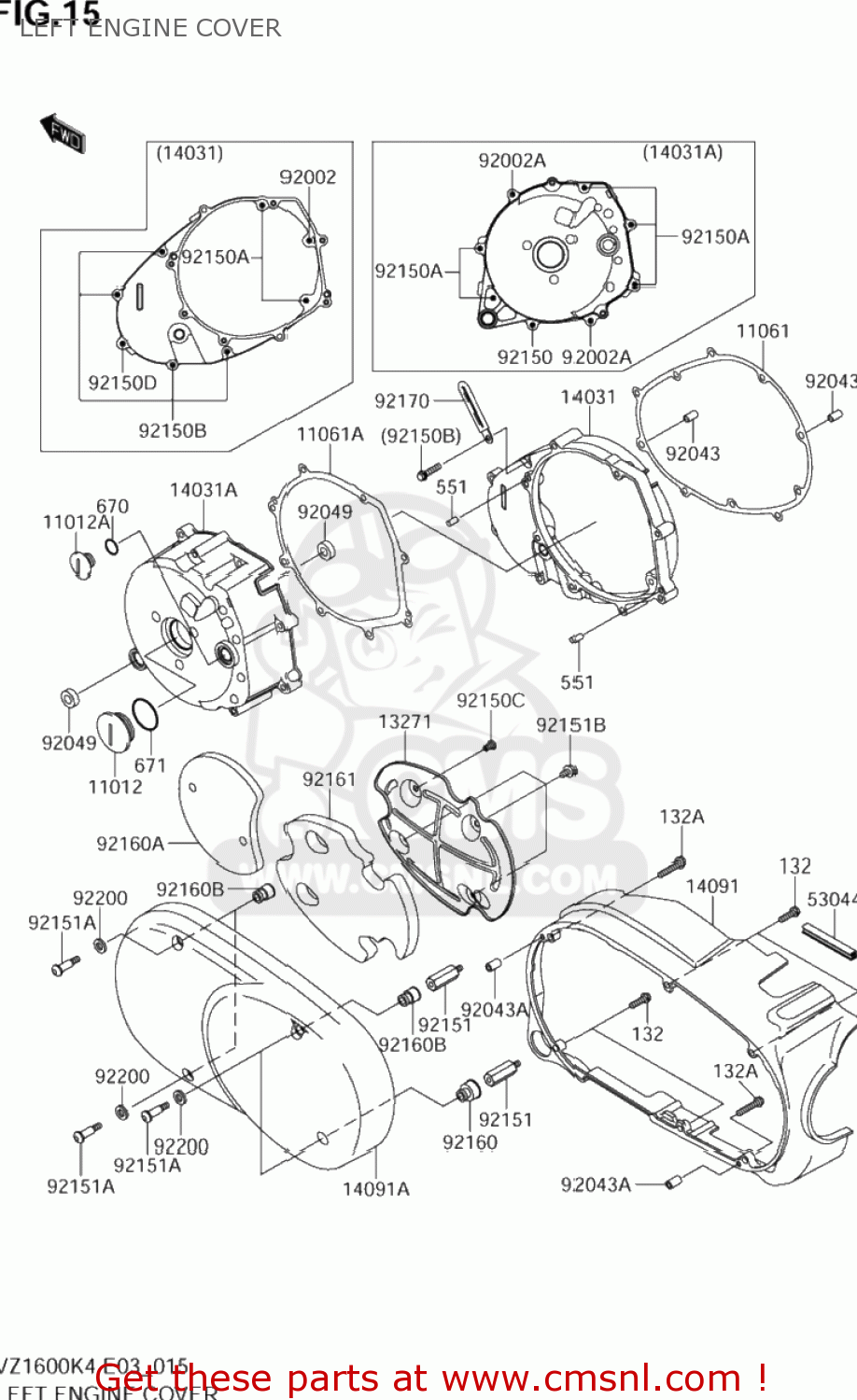

LEFT ENGINE COVER

ref

part #

description

quantity

132

KK132V0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

KK132V0630
ref: 132A

BOLT-FLANGED-SMALL

€ 1.50

551

KK551A0612
ref: 551

PIN-DOWEL,6X12

€ 3.00

670

KK670B2018
ref: 670

O RING,18MM

€ 4.50

671

KK671B2540
ref: 671

O RING,40MM

€ 3.50

11012

K110121362
ref: 11012

CAP

€ 5.50

11012A

K110121363
ref: 11012A

CAP,TOP MARK

€ 4.50

11061

K110611079
ref: 11061

GASKET,GENERATOR COVER,IN (NAS)

€ 18.50

11061A

K110611080
ref: 11061A

GASKET,GENERATOR COVER,OUT (NAS)

€ 18.00

13271

K132711496
ref: 13271

PLATE

€ 18.50

14031

K140311384
ref: 14031

COVER-GENERATO

€ 112.50

14031A

K140311392
ref: 14031A

COVER-GENERATO

€ 203.50

14091

K140911206
ref: 14091

COVER,LH,INNER

€ 86.50

14091A

K140911297
ref: 14091A

COVER,LH,OUTER

€ 449.00

53044

K530441312
ref: 53044

TRIM

€ 4.00

92002

K920021566
ref: 92002

BOLT,6X40

€ 3.50

92002A

K920021567
ref: 92002A

BOLT,6X60

€ 4.00

92043

K920431263
ref: 92043

PIN,6.2X8X14

€ 2.50

92043A

K920431690
ref: 92043A

PIN,6X16

€ 3.50

92049

K920491398
ref: 92049

SEAL-OIL,VB13193

€ 3.50

92150

K921501010
ref: 92150
K9200-21570

BOLT,6X20

€ 4.00

92150A

K921501021
ref: 92150A

BOLT,6X30

€ 3.50

92150B

K921501779
ref: 92150B

BOLT,6X25

€ 3.50

92150C

K921501864
ref: 92150C

BOLT,6X10

€ 3.00

92150D

K921501967
ref: 92150D

BOLT,6X35

€ 3.50

92151

K921511062
ref: 92151

BOLT

€ 10.00

92151A

K921511796
ref: 92151A

BOLT,L=32

€ 4.50

92151B

K921511884
ref: 92151B

BOLT,6X10

€ 2.00

92160

K921601718
ref: 92160

DAMPER

€ 4.50

92160A

K921601719
ref: 92160A

DAMPER

€ 16.00

92160B

K921601730
ref: 92160B

DAMPER

€ 5.00

92161

K921611179
ref: 92161

DAMPER

€ 29.50

92170

K921701514
ref: 92170

CLAMP

€ 3.50

92200

K922001296
ref: 92200

WASHER

€ 2.00
