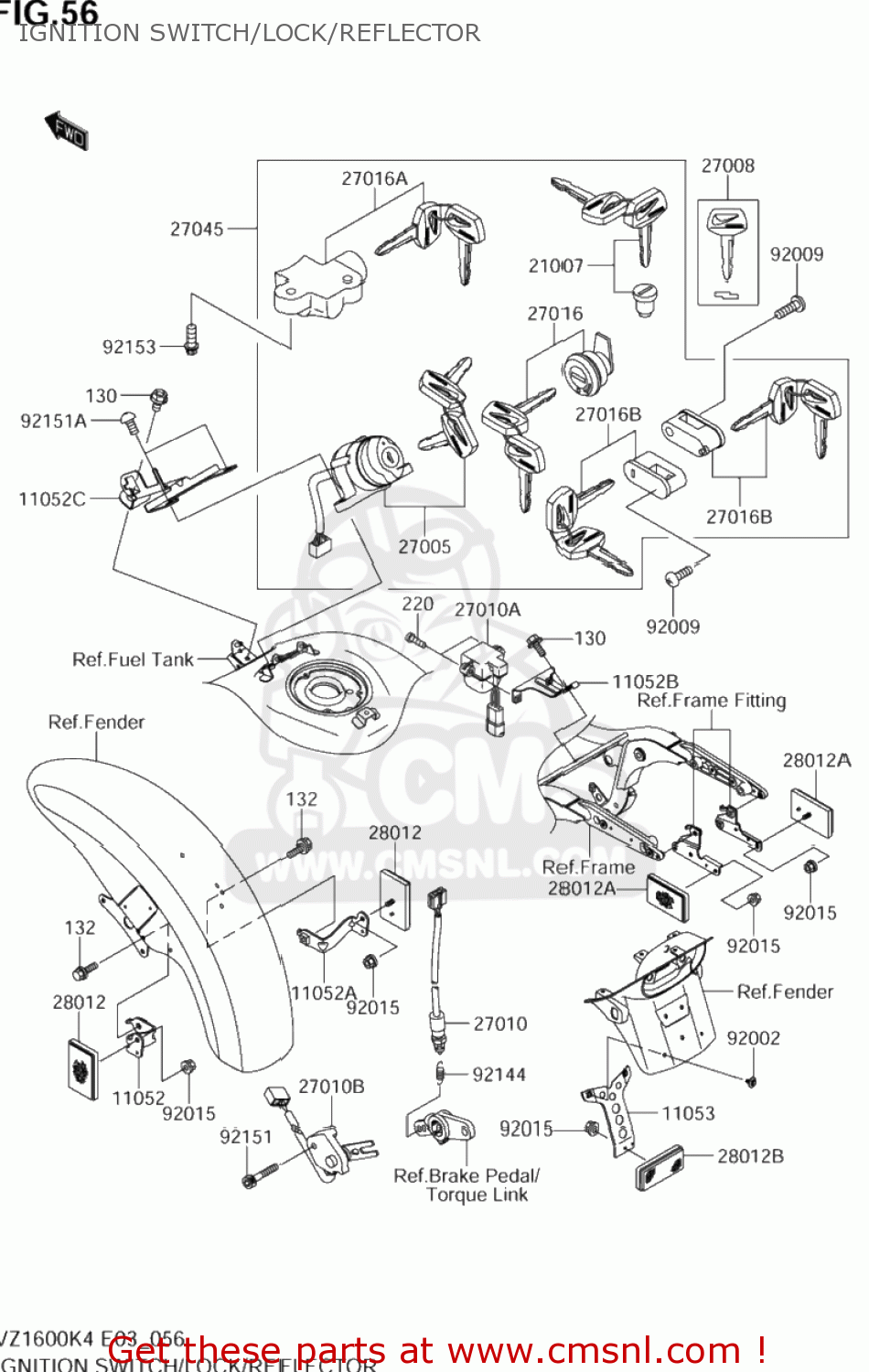

IGNITION SWITCH/LOCK/REFLECTOR

ref

part #

description

quantity

130

KK130J0610
ref: 130

BOLT-FLANGED

€ 1.50

132

KK132Y0612
ref: 132

BOLT-FLANGED-SMALL

€ 2.00

220

KK220C0420
ref: 220

SCREW-PAN-CROS,4X20

€ 3.00

11052

K110521284
ref: 11052

BRACKET,REFLECTOR,FR,LH

€ 0.00

11052A

K110521285
ref: 11052A

BRACKET,REFLECTOR,FR,RH

€ 0.00

11052B

K110521302
ref: 11052B

BRACKET,DOWN S

€ 9.00

11052C

K110521494
ref: 11052C

BRACKET,IGNITI

€ 9.50

11053

K110530409
ref: 11053

BRACKET,REFLECTOR,RR

€ 8.50

21007

K210075055
ref: 21007

ROTOR,LOCK,TAN

€ 65.00

27005

K270050007
ref: 27005

SWITCH-ASSY-IGNITION

€ 148.50

27008

K270080005
ref: 27008

KEY-LOCK,BLANK

€ 24.50

27010

K270101412
ref: 27010

SWITCH,REAR BRAKE

€ 18.00

27010A

K270101416
ref: 27010A

SWITCH,DOWN SENSOR

€ 114.00

27010B

K270101470
ref: 27010B

SWITCH,SIDE STAND

€ 41.00

27016

K270165302
ref: 27016

LOCK-ASSY,LID

€ 59.50

27016A

K270165304
ref: 27016A

LOCK-ASSY,STEE

€ 71.50

27016B

K270165318
ref: 27016B

LOCK-ASSY,HELM

€ 48.50

27045

K270455249
ref: 27045

SWITCH-ASSY

€ 369.50

28012

K280121009
ref: 28012

REFLECTOR-REFLEX,FR

€ 0.00

28012A

K280121051
ref: 28012A

REFLECTOR-REFLEX,RR

€ 0.00

28012B

K280121077
ref: 28012B

REFLECTOR-REFLEX

€ 17.50

92002

K920021884
ref: 92002

BOLT,6X12

€ 2.50

92009

K920091296
ref: 92009

SCREW,5X12

€ 2.50

92015

K920151656
ref: 92015

NUT,FLANGED,5MM

€ 2.50

92144

K921441141
ref: 92144

SPRING,REAR BRAKE SWITCH

€ 4.00

92151

K921511390
ref: 92151

BOLT,SOCKET,6X35

€ 2.00

92151A

K921511751
ref: 92151A

BOLT,SOCKET,6X16

€ 2.00

92153

K921531273
ref: 92153

BOLT,TORX,8X22

€ 3.50

all assemblies
