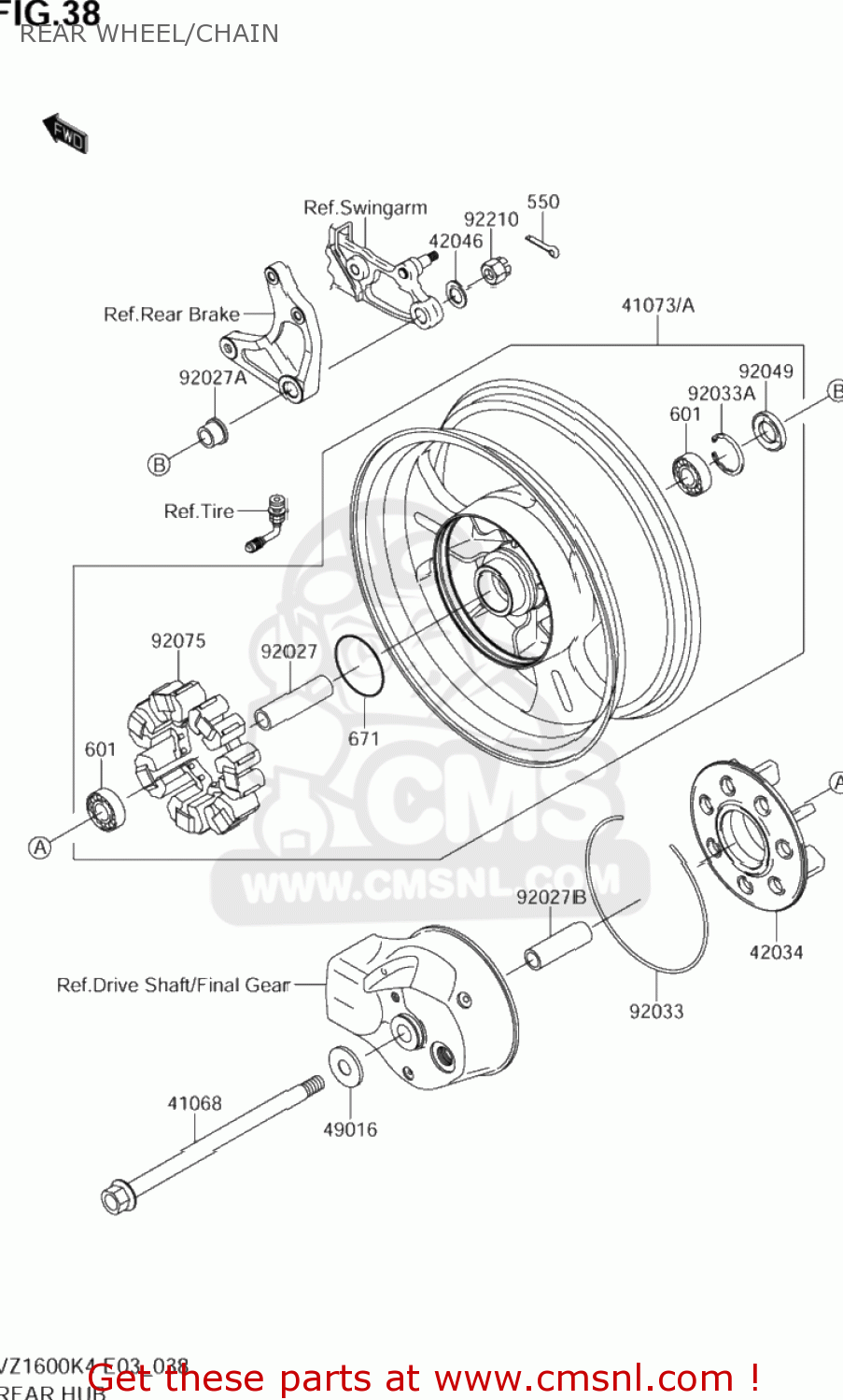

REAR WHEEL/CHAIN

ref

part #

description

quantity

550

KK550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.50

601

KKK601B6304UU
ref: 601

BEARING-BALL,#6304UUC3

€ 13.50

671

KK671B2580
ref: 671

O RING,80MM

€ 3.50

41068

K410681410
ref: 41068

AXLE,RR

€ 85.00

41073

K410730007496
ref: 41073

WHEEL-ASSY,RR

€ 863.50

41073A

K410730042496
ref: 41073A

WHEEL-ASSY,RR

€ 1,166.50

42034

K420340002
ref: 42034

COUPLING,RR HU

€ 181.00

42046

KK42046003
ref: 42046

WASHER,21X33X2.6

€ 3.50

49016

K490161019
ref: 49016

COVER-SEAL

€ 7.50

92027

K920271901
ref: 92027

COLLAR,20.2X28X105.5

€ 23.00

92027A

K920271902
ref: 92027A

COLLAR,RR AXLE,L=21.5

€ 16.50

92027B

K920271969
ref: 92027B

COLLAR,20.2X28X86

€ 15.00

92033

K920330012
ref: 92033

RING-SNAP,220MM

€ 11.50

92033A

K920331043
ref: 92033A

RING-SNAP,52MM

€ 6.50

92049

K920491061
ref: 92049

SEAL-OIL,28X52X5

€ 9.50

92075

K920751121
ref: 92075

DAMPER,SHOCK,RR HUB

€ 91.00

92210

K922101134
ref: 92210

NUT,CASTLE,18MM

€ 4.50
