AIR CLEANER (MODEL K5/K6/K7/K8)

VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

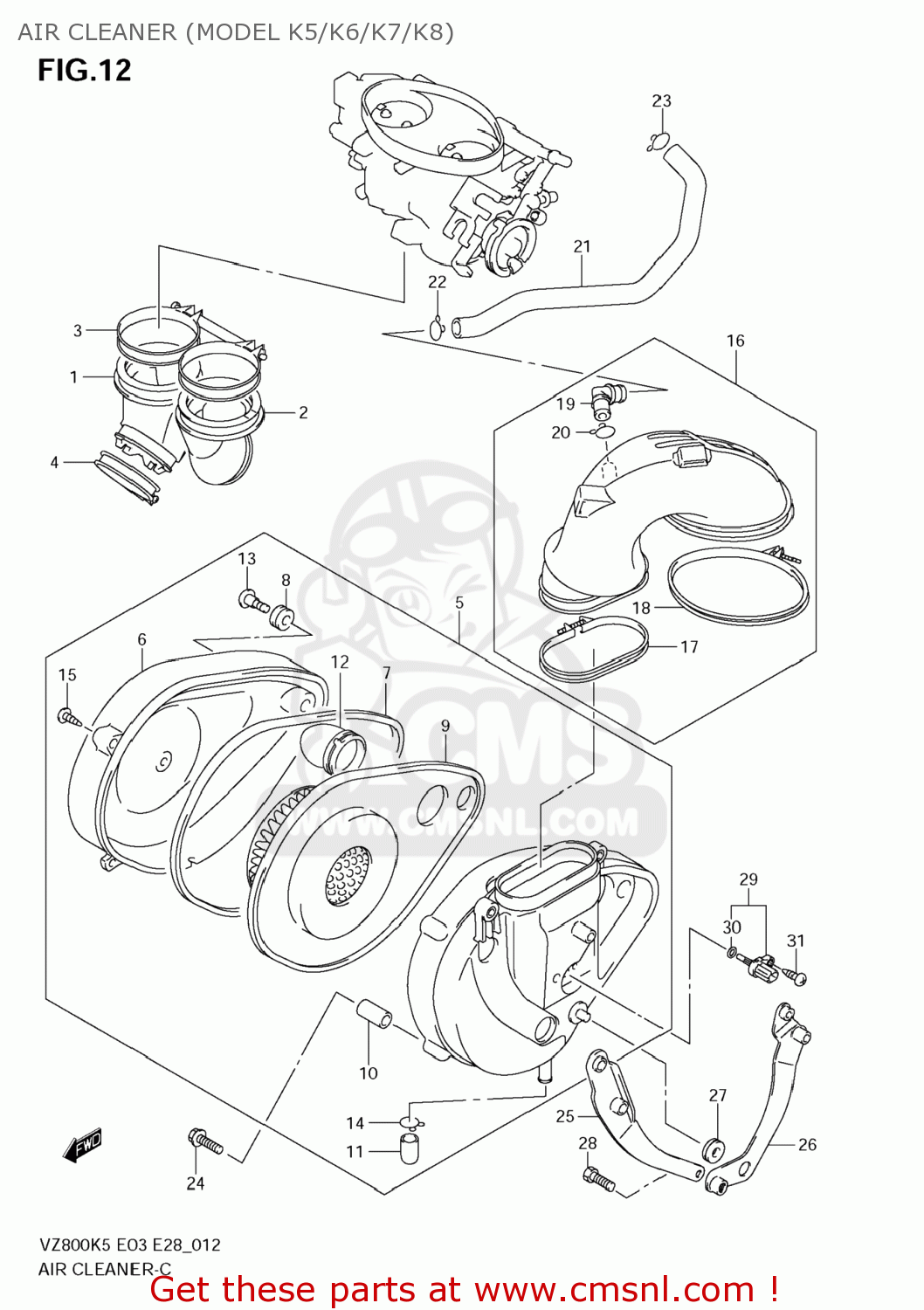

Air cleaner (model k5/k6/k7/k8) diagram VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

AIR CLEANER (MODEL K5/K6/K7/K8) VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

AIR CLEANER (MODEL K5/K6/K7/K8) VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

1311141F00
ref: 1

PIPE,INTAKE NO.1

€ 26.00

2

1312141F00
ref: 2

PIPE,INTAKE NO.2

€ 26.00

3

1317041F00
ref: 3

CLAMP,INTAKE PIPE

€ 27.00

4

1317015G00
ref: 4

CLAMP,INTAKE PIPE

€ 4.00

5

1370139G00
ref: 5

CASE ASSY,AIR CLEANER

€ 322.50

6

1374139G00
ref: 6

CAP,AIR CLEANER

€ 167.00

7

1379539G00
ref: 7

GASKET (NAS)

€ 10.50

8

1374739G00
ref: 8

CUSHION

€ 3.50

9

1378039G00
ref: 9

FILTER,AIR CLEANER

€ 45.50

10

1383814G00
ref: 10

COLLAR

€ 3.50

11

1385941B10
ref: 11

PLUG

€ 5.50

12

1389139G00
ref: 12

TUBE,INLET

€ 14.50

13

0913906087
ref: 13
09139-06126

SCREW(6X20)

€ 4.00

14

0940114301
ref: 14

CLIP

€ 2.00

15

1383139G00
ref: 15

SCREW

€ 5.50

16

1388039G00
ref: 16

TUBE ASSY,OUTLET

€ 147.00

17

1382641F00
ref: 17

CLAMP

€ 18.00

18

1382641F11
ref: 18

CLAMP

€ 26.50

19

1385814D10
ref: 19
13858-14D20

JOINT

€ 6.00

20

0940114301
ref: 20

CLIP

€ 2.00

21

1385341F10
ref: 21

TUBE,BREATHER

€ 21.50

22

0940115101
ref: 22

CLIP

€ 2.00

23

0940116301
ref: 23

CLAMP

€ 2.50

24

0913906148
ref: 24

BOLT(6X20)

€ 2.50

25

1376039G00
ref: 25

BRACKET,AIR CLEANER FR

€ 15.50

26

1377039G00
ref: 26

BRACKET,AIR CLEANER RR

€ 22.50

27

0932008018
ref: 27

CUSHION

€ 4.00

28

015000625B
ref: 28

BOLT

€ 2.50

29

1365041F10
ref: 29

SENSOR,AIR TEMP

€ 41.50

30

1365541F10
ref: 30

O RING

€ 7.00

31

035110516B
ref: 31

SCREW

€ 2.50
