HEADLAMP HOUSING

VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

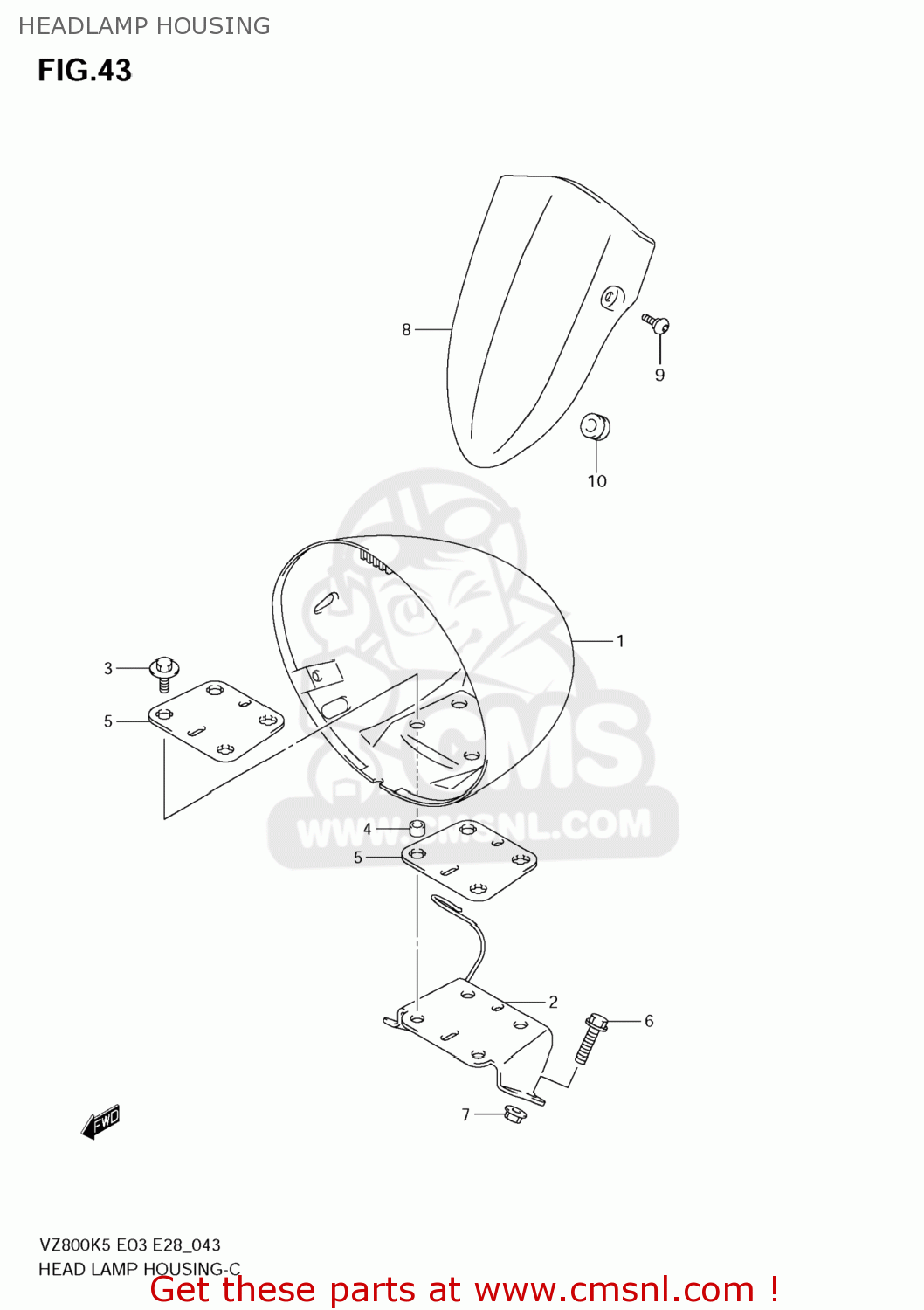

Headlamp housing diagram VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

HEADLAMP HOUSING VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)
HEADLAMP HOUSING VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)
HEADLAMP HOUSING VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
5180039G00
ref: 1
HOUSING HEADLA
€ 172.00
2
5185039G00
ref: 2
BRACKET,HEADLAMP HOUSING
€ 31.00
3
0911606115
ref: 3
BOLT(6X20)
0911606115
€ 2.00
4
0918006106
ref: 4
SPACER(6.8X10X7)
0918006106
€ 2.00
5
5181339G00
ref: 5
CUSHION,HEADLAMP HOUSING
€ 11.00
6
0910308413
ref: 6
BOLT(8X25)
€ 3.00
7
083193108B
ref: 7
NUT
083193108B
€ 2.50
8-1
5181239G00
ref: 8-1
51812-39G01
COVER,METER
€ 92.00
8-2
5181239G01
ref: 8-2
COVER,METER
5181239G01
€ 92.00
9
0913905071
ref: 9
SCREW(5X13)
0913905071
€ 3.50
10
0932006016
ref: 10
CUSHION
0932006016
€ 4.50
