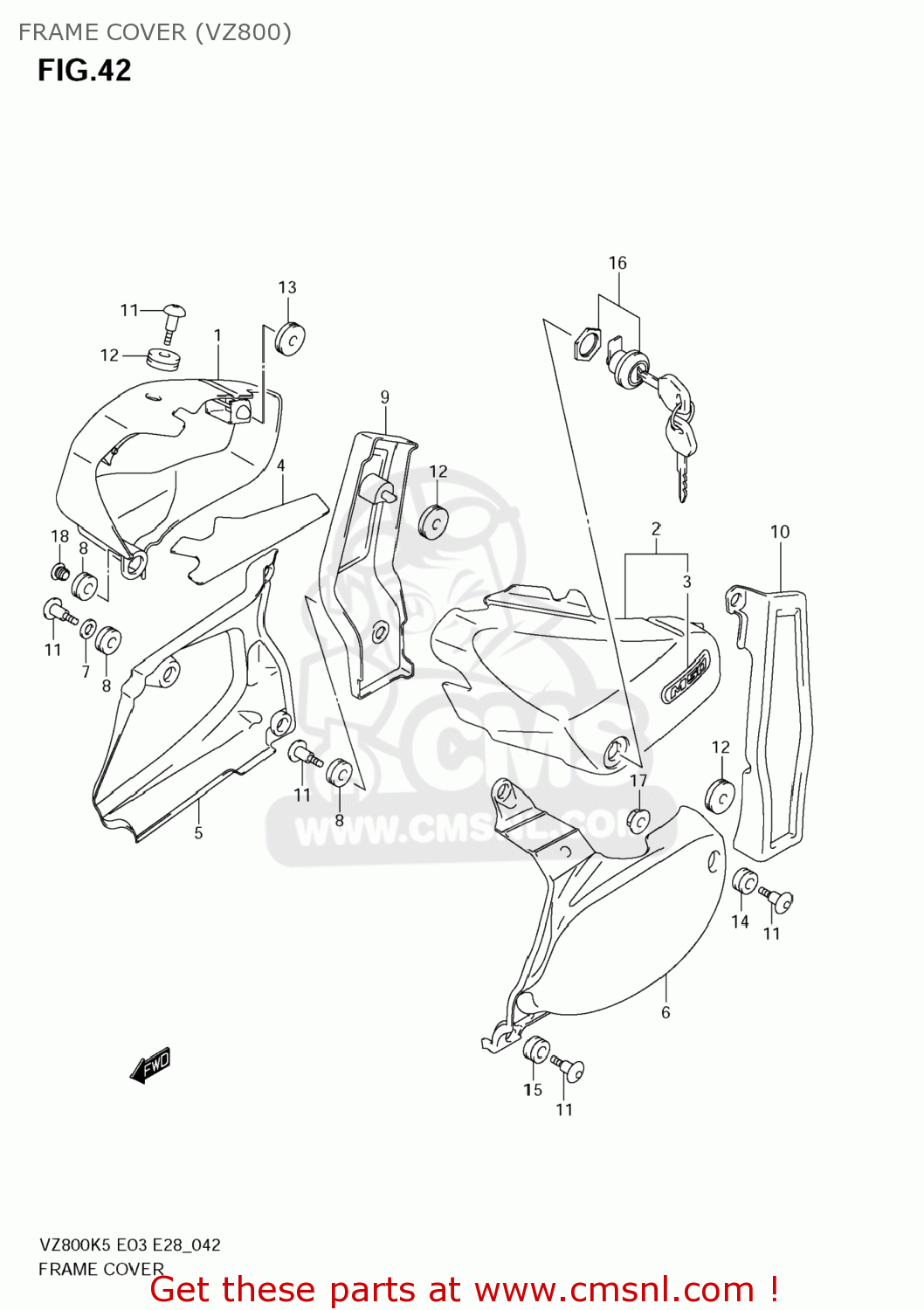

FRAME COVER (VZ800)

ref

part #

description

quantity

1-1

4711039G00YAY
ref: 1-1

COVER, FRAME RH (BLACK)

€ 144.00

1-10

4711039G10YC2
ref: 1-10

COVER,SIDE,R(BLUE)

€ 132.00

1-11

4711039G10YHG
ref: 1-11

COVER,SIDE,R(GRAY)

€ 0.00

1-12

4711039G10YLD
ref: 1-12

COVER,SIDE,R(BLUE)

€ 126.00

1-2

4711039G00YU7
ref: 1-2

COVER,SIDE,R(RED)

€ 118.00

1-3

4711039G00YBA
ref: 1-3

COVER,SIDE,R(BLUE)

€ 118.00

1-4

4711039G00YC2
ref: 1-4

COVER,SIDE,R(BLUE)

€ 131.00

1-5

4711039G00YHG
ref: 1-5

COVER,SIDE,R(GRAY)

€ 131.50

1-6

4711039G00YLD
ref: 1-6

COVER,SIDE,R(BLUE)

€ 118.00

1-7

4711039G10YAY
ref: 1-7

COVER, FRAME RH (BLACK)

€ 151.50

1-8

4711039G10YU7
ref: 1-8

COVER,SIDE,R(RED)

€ 0.00

1-9

4711039G10YBA
ref: 1-9

COVER,SIDE,R(BLUE)

€ 0.00

2-1

4721039G00YAY
ref: 2-1

COVER,SIDE,L(BLACK)

€ 137.50

2-2

4721039G00YU7
ref: 2-2

COVER,SIDE,L(RED)

€ 118.00

2-3

4721039G00YBA
ref: 2-3

COVER,SIDE,L(BLUE)

€ 144.00

2-4

4721039G00YC2
ref: 2-4

COVER,SIDE,L(BLUE)

€ 33.00

2-5

4721039G00YHG
ref: 2-5

COVER,SIDE,L(GRAY)

€ 116.00

2-6

4721039G00YLD
ref: 2-6

COVER,SIDE,L(BLUE)

€ 118.00

3

6813139G00
ref: 3

EMBLEM,M50

€ 0.00

4

4716641F00
ref: 4

SHIELD,FRAME COVER

€ 7.50

5

4713041F10
ref: 5

COVER,SIDE LWR,R

€ 137.00

6

4723141F10
ref: 6

COVER,SIDE LWR,L

€ 154.00

7

0916010123
ref: 7

WASHER(10.5X20X2.3)

€ 2.00

8

0932008021
ref: 8

CUSHION

€ 4.00

9

4714141F01019
ref: 9

COVER,SIDE RR,R

€ 55.50

10

4724141F00019
ref: 10

COVER,SIDE RR,L

€ 55.50

11

0913906126
ref: 11

SCREW(6X20)

€ 4.00

12

0932008018
ref: 12

CUSHION

€ 4.00

13

0932008028
ref: 13

CUSHION

€ 2.50

14

0932009501
ref: 14

CUSHION

€ 2.00

15-1

0932009026
ref: 15-1
09320-09045

CUSHION

€ 4.00

15-2

0932009045
ref: 15-2

CUSHION

€ 4.00

16

9570007860
ref: 16

LOCK SET,COVER

€ 76.00

17-1

0831610063
ref: 17-1
08316-1006B

NUT

€ 2.50

17-2

083161006B
ref: 17-2

NUT

€ 2.50

18

0925009001
ref: 18

CAP(OD:14)

€ 1.00
