FUEL PUMP

VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

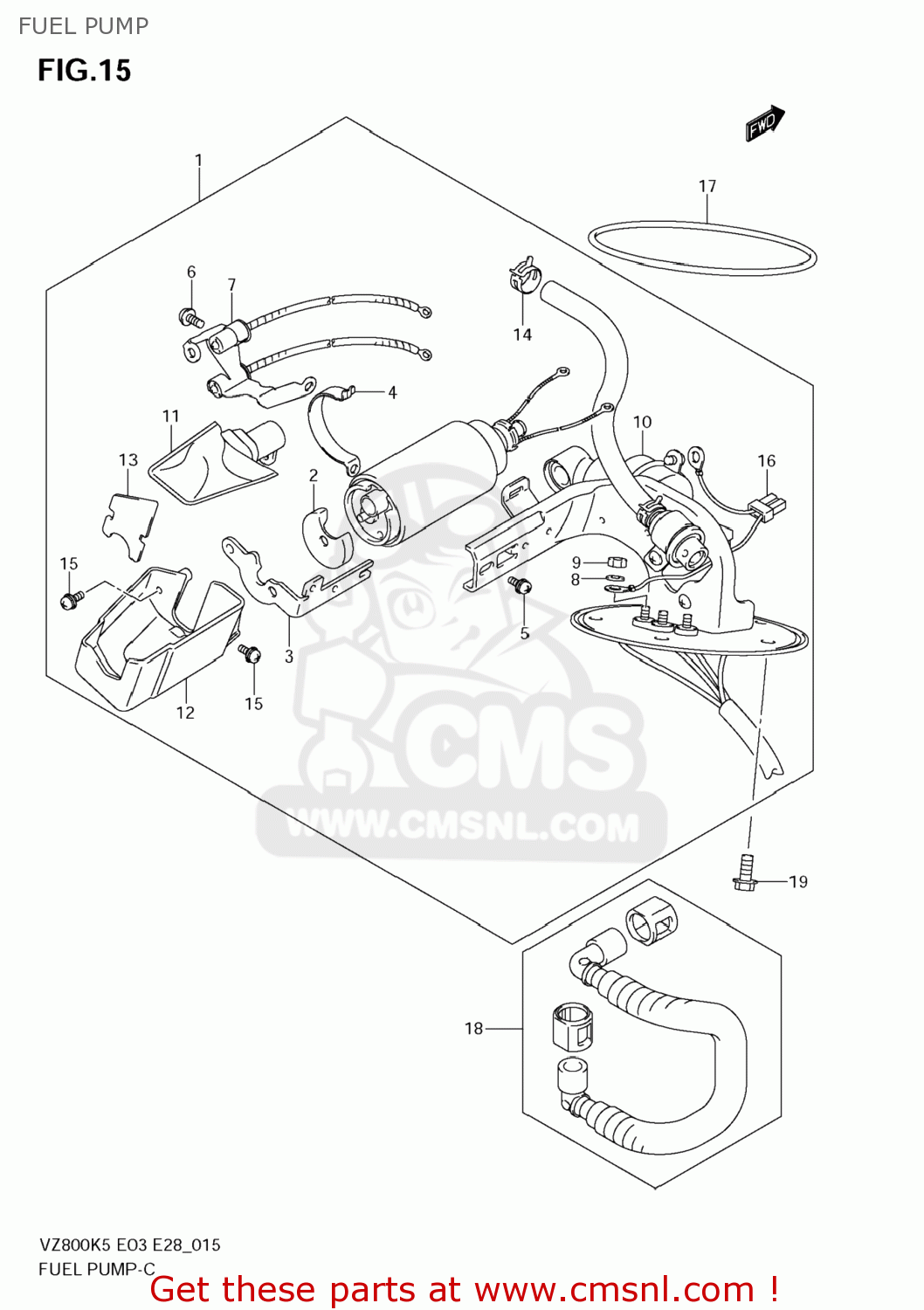

Fuel pump diagram VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

FUEL PUMP VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

FUEL PUMP VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

1510039G00
ref: 1-1

PUMP ASSY,FUEL

€ 769.00

1-2

1510039G10
ref: 1-2

PUMP ASSY,FUEL

€ 694.00

2

1511141F10
ref: 2

CUSHION

€ 10.50

3

1511239G00
ref: 3

HOLDER

€ 22.50

4

1511510F00
ref: 4

BAND,FUEL PUMP

€ 12.00

5

1511610F00
ref: 5

SCREW

€ 3.50

6

1511610F10
ref: 6

SCREW

€ 3.50

7-1

1517039G00
ref: 7-1

THERMISTOR

€ 191.50

7-2

1517039G10
ref: 7-2

THERMISTOR

€ 166.50

8

1517235F00
ref: 8

WASHER,SPRING

€ 4.00

9

1517335F00
ref: 9

NUT

€ 4.50

10

1541039G00
ref: 10

PLATE ASSY

€ 291.50

11

1542039G00
ref: 11

STRAINER,FUEL

€ 50.50

12

1542539G00
ref: 12

VESSEL

€ 28.00

13

1542639G00
ref: 13

COVER

€ 16.00

14

1542739G00
ref: 14

CLIP

€ 9.50

15

1542941F20
ref: 15

SCREW

€ 3.50

16

1518539G10
ref: 16

HARNESS

€ 91.00

17

1520135F00
ref: 17

O RING,FUEL PUMP

€ 26.00

18-1

1581041F00
ref: 18-1

HOSE,FUEL

€ 67.00

18-2

1581039G00
ref: 18-2
15810-39G02

LEIDING.BRANDST

€ 36.00

19

071200612B
ref: 19

BOLT

€ 3.50
