FUEL TANK (MODEL K5/K6)

VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

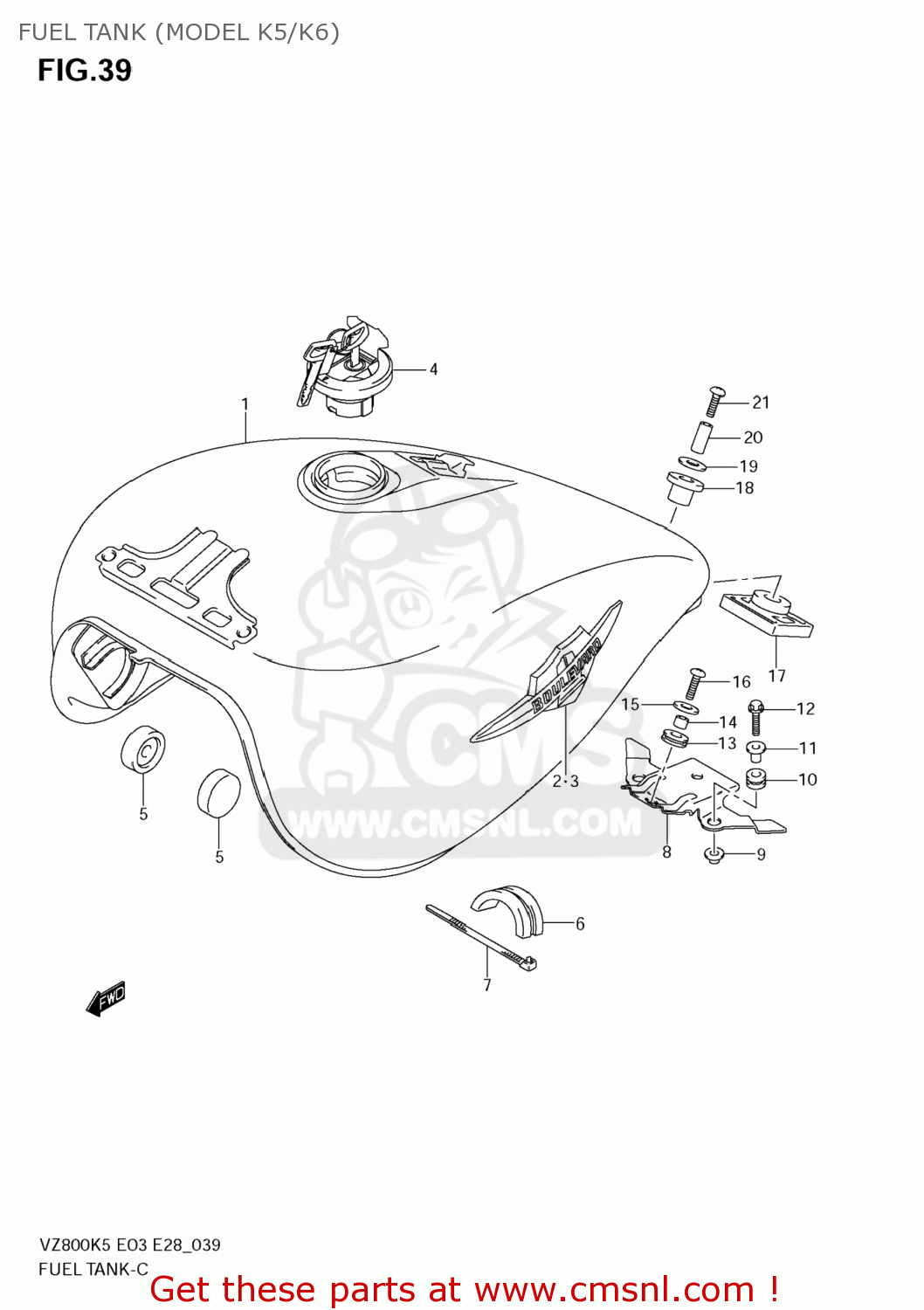

Fuel tank (model k5/k6) diagram VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

FUEL TANK (MODEL K5/K6) VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)
FUEL TANK (MODEL K5/K6) VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)
FUEL TANK (MODEL K5/K6) VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1-1
4410039G00YAY
ref: 1-1
44100-39G60-YAY
TANK ASSY,FUEL(BLACK)
€ 571.00
1-10
4410039G20YHG
ref: 1-10
TANK ASSY,FUEL(GRAY)
€ 630.00
1-2
4410039G00YU7
ref: 1-2
TANK ASSY,FUEL(RED)
€ 541.00
1-3
4410039G00YBA
ref: 1-3
44100-39G60-YBA
TANK ASSY, FUEL (BLUE)
€ 630.00
1-4
4410039G00YC2
ref: 1-4
44100-39G30-YC2
TANK ASSY,FUEL(BLUE)
€ 415.50
1-5
4410039G00YHG
ref: 1-5
44100-39G30-YHG
TANK ASSY,FUEL(GRAY)
€ 415.50
1-6
4410039G20YAY
ref: 1-6
44100-39G80-YAY
TANK ASSY, FUEL (BLACK)
€ 630.00
1-7
4410039G20YU7
ref: 1-7
TANK ASSY,FUEL(RED)
€ 0.00
1-8
4410039G20YBA
ref: 1-8
TANK ASSY,FUEL(BLUE)
€ 0.00
1-9
4410039G20YC2
ref: 1-9
44100-39G50-YC2
TANK ASSY, FUEL (BLUE)
€ 630.00
2
6811139G00
ref: 2
68111-39G01
EMBLEM,FUEL TA
€ 53.00
3
6812139G00
ref: 3
68121-39G01
EMBLEM,FUEL TA
6812139G00
€ 53.00
4-1
4420039830
ref: 4-1
CAP SET,FUEL TANK
€ 110.50
4-2
4420039840
ref: 4-2
CAP SET,FUEL TANK
4420039840
€ 226.00
5
0932910007
ref: 5
CUSHION
0932910007
€ 3.00
6
4454114F10
ref: 6
CUSHION,FUEL TANK LWR
€ 5.00
7
0940725402
ref: 7
CLAMP(L:250)
0940725402
€ 4.50
8
4453039G00
ref: 8
44530-39G20
BRACKET COMP,F
€ 25.00
9
0916906076
ref: 9
WASHER
0916906076
€ 2.50
10
0932008001
ref: 10
CUSHION
0932008001
€ 3.50
11
0916906070
ref: 11
WASHER
€ 3.50
12
0216206253
ref: 12
02162-0625A
SCREW
€ 1.50
13
0932012011
ref: 13
CUSHION
0932012011
€ 3.00
14
0918008188
ref: 14
SPACER(8.5X12X7.5)
0918008188
€ 3.00
15
0916008133
ref: 15
09160-08151
WASHER (8.5X26X1.6)
0916008133
€ 2.00
16
0910608167
ref: 16
BOLT(8X20)
0910608167
€ 3.50
17
4454241F00
ref: 17
CUSHION,FUEL TANK RR LWR
€ 8.00
18
4454141F01
ref: 18
CUSHION,FUEL TANK RR UPR
€ 6.50
19
0918008057
ref: 19
SPACER (8.2X12.5X23.5)
0918008057
€ 2.00
20
0916008140
ref: 20
09160-08146
WASHER (8.5X33X1.6)
0916008140
€ 3.00
21
0155008253
ref: 21
01550-0825A
BOLT
0155008253
€ 2.50
