SECOND AIR (MODEL K5/K6/K7/K8)

VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

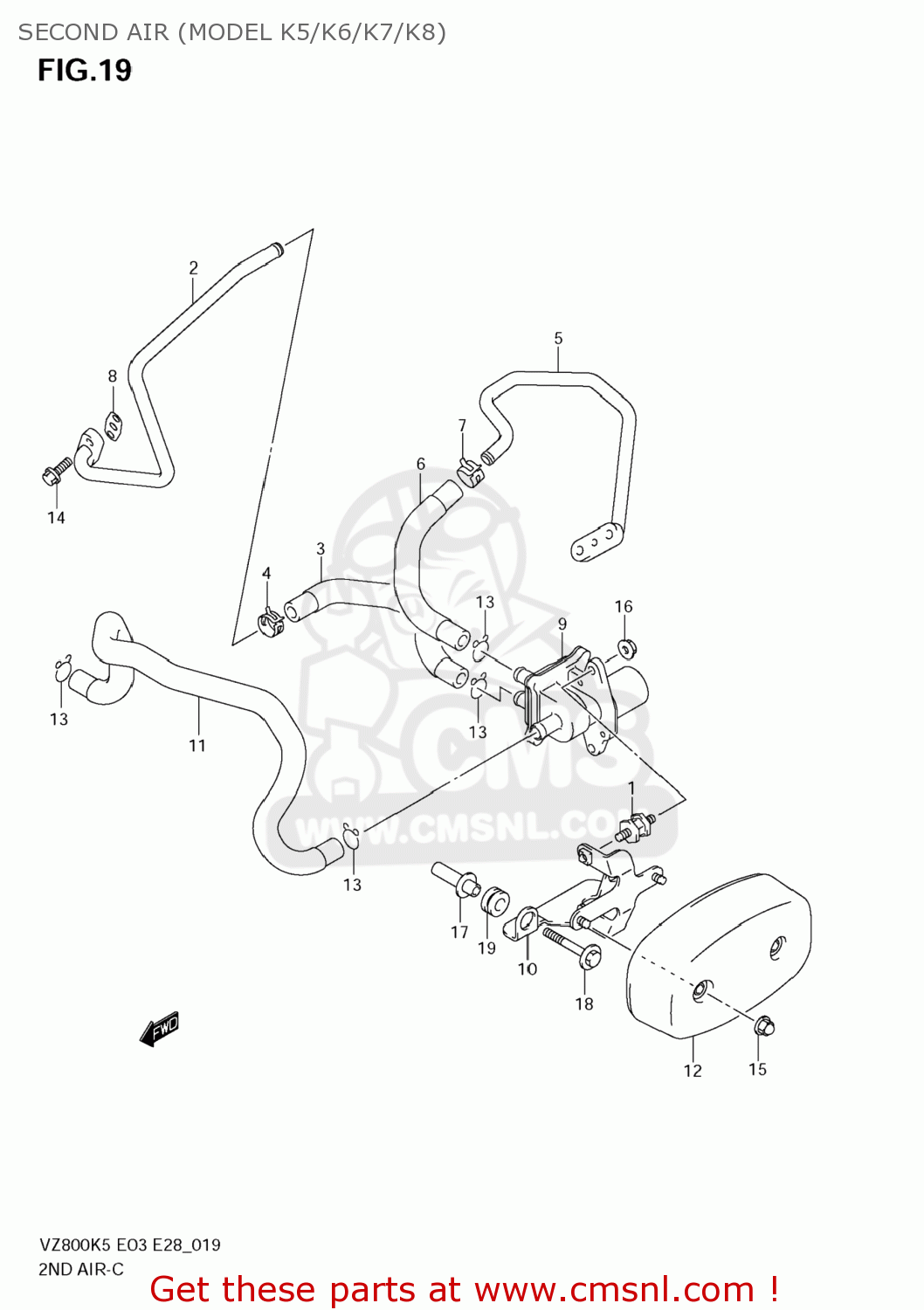

Second air (model k5/k6/k7/k8) diagram VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

SECOND AIR (MODEL K5/K6/K7/K8) VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)
SECOND AIR (MODEL K5/K6/K7/K8) VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)
SECOND AIR (MODEL K5/K6/K7/K8) VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
1778813612
ref: 1
BOLT,CUSHION
€ 8.50
2
1841041F20
ref: 2
PIPE,2ND AIR FR
€ 35.00
3
1846141F20
ref: 3
HOSE,2ND AIR VALVE FR
€ 56.50
4
0940115407
ref: 4
CLIP
0940115407
€ 1.50
5
1842041F20
ref: 5
PIPE,2ND AIR RR
€ 54.50
6
1847141F20
ref: 6
HOSE,2ND AIR VALVE RR
€ 32.50
7
0940115407
ref: 7
CLIP
0940115407
€ 1.50
8
1844145C01
ref: 8
GASKET,2ND AIR PIPE (NAS)
1844145C01
€ 6.00
9
1845010F20
ref: 9
VALVE ASSY,2ND AIR
1845010F20
€ 264.00
10
1861041F20
ref: 10
BRACKET,2ND AIR SPRT
€ 18.50
11
1871141F20
ref: 11
HOSE,2ND AIR CLEANER
€ 20.50
12
1878041F20
ref: 12
COVER,2ND AIR VALVE
1878041F20
€ 34.50
13
0940115101
ref: 13
CLIP
0940115101
€ 2.00
14
0154706167
ref: 14
BOLT
0154706167
€ 2.00
15
0831320067
ref: 15
NUT
0831320067
€ 2.00
16
083161006B
ref: 16
NUT
083161006B
€ 2.50
17
1862041F00
ref: 17
SPACER,2ND AIR SPRT BRKT
1862041F00
€ 6.50
18
0911606183
ref: 18
BOLT(6X55)
0911606183
€ 2.50
19
0932010015
ref: 19
CUSHION
0932010015
€ 2.50
